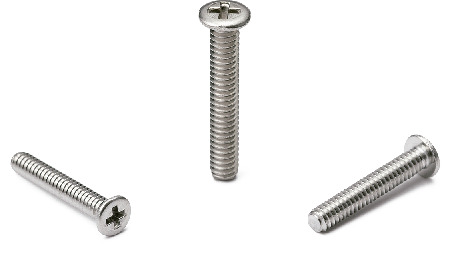

Name: SNZ2S
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1.4; M1.6; M1.7; M2

L: All; 1.5; 2; 2.5; 3; 3.5; 4; 5; 6; 8; 10; 12

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Max. Tightening Torque (N・m)	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNZ2S-M1.4-1.5	M1.4	0.3	1.5	2.5	0.5	0.07	50	0.03	12.47	CAD	Cart
SNZ2S-M1.4-2	M1.4	0.3	2	2.5	0.5	0.07	50	0.03	12.47	CAD	Cart
SNZ2S-M1.4-2.5	M1.4	0.3	2.5	2.5	0.5	0.07	50	0.04	12.47	CAD	Cart
SNZ2S-M1.4-3	M1.4	0.3	3	2.5	0.5	0.07	50	0.04	12.47	CAD	Cart
SNZ2S-M1.4-3.5	M1.4	0.3	3.5	2.5	0.5	0.07	50	0.04	12.47	CAD	Cart
SNZ2S-M1.4-4	M1.4	0.3	4	2.5	0.5	0.07	50	0.05	12.47	CAD	Cart
SNZ2S-M1.4-5	M1.4	0.3	5	2.5	0.5	0.07	50	0.06	12.47	CAD	Cart
SNZ2S-M1.4-6	M1.4	0.3	6	2.5	0.5	0.07	50	0.06	12.47	CAD	Cart
SNZ2S-M1.4-8	M1.4	0.3	8	2.5	0.5	0.07	50	0.08	12.47	CAD	Cart
SNZ2S-M1.4-10	M1.4	0.3	10	2.5	0.5	0.07	50	0.1	12.47	CAD	Cart
SNZ2S-M1.6-2	M1.6	0.35	2	2.8	0.55	0.1	50	0.04	13.25	CAD	Cart
SNZ2S-M1.6-2.5	M1.6	0.35	2.5	2.8	0.55	0.1	50	0.05	13.25	CAD	Cart
SNZ2S-M1.6-3	M1.6	0.35	3	2.8	0.55	0.1	50	0.05	13.25	CAD	Cart
SNZ2S-M1.6-3.5	M1.6	0.35	3.5	2.8	0.55	0.1	50	0.06	13.25	CAD	Cart
SNZ2S-M1.6-4	M1.6	0.35	4	2.8	0.55	0.1	50	0.06	13.25	CAD	Cart
SNZ2S-M1.6-5	M1.6	0.35	5	2.8	0.55	0.1	50	0.07	13.25	CAD	Cart
SNZ2S-M1.6-6	M1.6	0.35	6	2.8	0.55	0.1	50	0.08	13.25	CAD	Cart
SNZ2S-M1.6-8	M1.6	0.35	8	2.8	0.55	0.1	50	0.1	13.25	CAD	Cart
SNZ2S-M1.6-10	M1.6	0.35	10	2.8	0.55	0.1	50	0.12	13.25	CAD	Cart
SNZ2S-M1.7-2	M1.7	0.35	2	3.0	0.5	0.14	50	0.05	13.25	CAD	Cart
SNZ2S-M1.7-3	M1.7	0.35	3	3.0	0.5	0.14	50	0.06	13.25	CAD	Cart
SNZ2S-M1.7-3.5	M1.7	0.35	3.5	3.0	0.5	0.14	50	0.06	13.25	CAD	Cart
SNZ2S-M1.7-4	M1.7	0.35	4	3.0	0.5	0.14	50	0.07	13.25	CAD	Cart
SNZ2S-M1.7-5	M1.7	0.35	5	3.0	0.5	0.14	50	0.08	13.25	CAD	Cart
SNZ2S-M1.7-8	M1.7	0.35	8	3.0	0.5	0.14	50	0.12	13.25	CAD	Cart
SNZ2S-M1.7-10	M1.7	0.35	10	3.0	0.5	0.14	50	0.14	13.25	CAD	Cart
SNZ2S-M2-2	M2	0.4	2	3.5	0.6	0.22	50	0.07	11.69	CAD	Cart
SNZ2S-M2-2.5	M2	0.4	2.5	3.5	0.6	0.22	50	0.08	11.69	CAD	Cart
SNZ2S-M2-3	M2	0.4	3	3.5	0.6	0.22	50	0.09	11.69	CAD	Cart
SNZ2S-M2-3.5	M2	0.4	3.5	3.5	0.6	0.22	50	0.1	11.69	CAD	Cart
SNZ2S-M2-4	M2	0.4	4	3.5	0.6	0.22	50	0.1	11.69	CAD	Cart
SNZ2S-M2-5	M2	0.4	5	3.5	0.6	0.22	50	0.12	11.69	CAD	Cart
SNZ2S-M2-6	M2	0.4	6	3.5	0.6	0.22	50	0.14	11.69	CAD	Cart
SNZ2S-M2-8	M2	0.4	8	3.5	0.6	0.22	50	0.17	11.69	CAD	Cart
SNZ2S-M2-10	M2	0.4	10	3.5	0.6	0.22	50	0.21	11.69	CAD	Cart
SNZ2S-M2-12	M2	0.4	12	3.5	0.6	0.22	50	0.21	11.69	CAD	Cart
