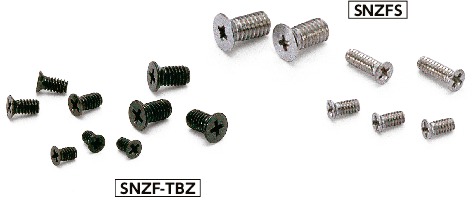

Name: SNZFS
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1.4; M1.6; M1.7; M2; M2.6

L: All; 2; 3; 4; 5; 6; 8; 10

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNZFS-M1.4-2	M1.4	0.3	2	2	0.45	50	0.016	8.42	CAD	Cart
SNZFS-M1.4-3	M1.4	0.3	3	2	0.45	50	0.024	7.61	CAD	Cart
SNZFS-M1.4-4	M1.4	0.3	4	2	0.45	50	0.032	12.94	CAD	Cart
SNZFS-M1.4-5	M1.4	0.3	5	2	0.45	50	0.041	7.61	CAD	Cart
SNZFS-M1.4-6	M1.4	0.3	6	2	0.45	50	0.049	7.61	CAD	Cart
SNZFS-M1.4-8	M1.4	0.3	8	2	0.45	50	0.066	13.66	CAD	Cart
SNZFS-M1.6-3	M1.6	0.35	3	2.3	0.5	50	0.033	12.21	CAD	Cart
SNZFS-M1.6-4	M1.6	0.35	4	2.3	0.5	50	0.043	12.21	CAD	Cart
SNZFS-M1.6-5	M1.6	0.35	5	2.3	0.5	50	0.054	12.21	CAD	Cart
SNZFS-M1.6-6	M1.6	0.35	6	2.3	0.5	50	0.064	12.21	CAD	Cart
SNZFS-M1.6-8	M1.6	0.35	8	2.3	0.5	50	0.085	12.21	CAD	Cart
SNZFS-M1.6-10	M1.6	0.35	10	2.3	0.5	50	0.11	12.94	CAD	Cart
SNZFS-M1.7-3	M1.7	0.35	3	2.5	0.5	50	0.04	7.61	CAD	Cart
SNZFS-M1.7-4	M1.7	0.35	4	2.5	0.5	50	0.052	7.61	CAD	Cart
SNZFS-M1.7-5	M1.7	0.35	5	2.5	0.5	50	0.065	7.61	CAD	Cart
SNZFS-M1.7-6	M1.7	0.35	6	2.5	0.5	50	0.078	12.21	CAD	Cart
SNZFS-M1.7-8	M1.7	0.35	8	2.5	0.5	50	0.1	12.21	CAD	Cart
SNZFS-M1.7-10	M1.7	0.35	10	2.5	0.5	50	0.13	12.21	CAD	Cart
SNZFS-M2-3	M2	0.4	3	3	0.6	50	0.056	12.21	CAD	Cart
SNZFS-M2-4	M2	0.4	4	3	0.6	50	0.073	12.21	CAD	Cart
SNZFS-M2-5	M2	0.4	5	3	0.6	50	0.091	12.21	CAD	Cart
SNZFS-M2-6	M2	0.4	6	3	0.6	50	0.11	12.21	CAD	Cart
SNZFS-M2-8	M2	0.4	8	3	0.6	50	0.14	12.21	CAD	Cart
SNZFS-M2-10	M2	0.4	10	3	0.6	50	0.18	12.21	CAD	Cart
SNZFS-M2.6-3	M2.6	0.45	3	4	0.8	50	0.1	13.66	CAD	Cart
SNZFS-M2.6-4	M2.6	0.45	4	4	0.8	50	0.14	13.66	CAD	Cart
SNZFS-M2.6-5	M2.6	0.45	5	4	0.8	50	0.17	13.66	CAD	Cart
SNZFS-M2.6-6	M2.6	0.45	6	4	0.8	50	0.2	13.66	CAD	Cart
SNZFS-M2.6-8	M2.6	0.45	8	4	0.8	50	0.27	14.49	CAD	Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SNZFS
Main Body	SUSXM7 （S.S. grade：A2）

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

Miniature screws for precision instruments.
M1.4 - M2.6。
More compact head than standard flat head machine screws.
