SNZS-M/Pan Head Machine Screws for Precision Instruments

Safety Precautions

RoHS Compliant

  • Miniature
SNZS-MPan Head Machine Screws for Precision Instruments

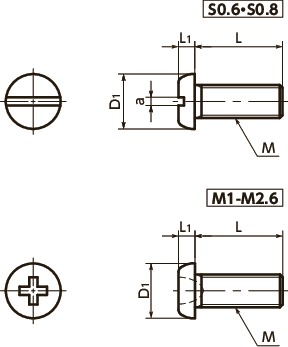

Dimension Drawing

SNZS-MPan Head Machine Screws for Precision Instruments寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1
M1.4
M1.6
M1.7
M2
M2.5
M2.6
L
All
2
3
4
5
6
8
10
12
14
2.5
3.5

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Max.
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZS-M1-2 M1 0.25 2 1.8 0.45 0 0.02 50 0.013 22.06 CAD Cart
SNZS-M1-3 M1 0.25 3 1.8 0.45 0 0.02 50 0.017 22.06 CAD Cart
SNZS-M1-4 M1 0.25 4 1.8 0.45 0 0.02 50 0.021 22.06 CAD Cart
SNZS-M1-5 M1 0.25 5 1.8 0.45 0 0.02 50 0.025 22.06 CAD Cart
SNZS-M1.4-2 M1.4 0.3 2 2 0.5 0 0.07 50 0.024 12.21 CAD Cart
SNZS-M1.4-3 M1.4 0.3 3 2 0.5 0 0.07 50 0.032 11.38 CAD Cart
SNZS-M1.4-4 M1.4 0.3 4 2 0.5 0 0.07 50 0.04 11.38 CAD Cart
SNZS-M1.4-5 M1.4 0.3 5 2 0.5 0 0.07 50 0.048 11.38 CAD Cart
SNZS-M1.4-6 M1.4 0.3 6 2 0.5 0 0.07 50 0.057 12.21 CAD Cart
SNZS-M1.4-8 M1.4 0.3 8 2 0.5 0 0.07 50 0.073 12.21 CAD Cart
SNZS-M1.4-10 M1.4 0.3 10 2 0.5 0 0.07 50 0.09 12.21 CAD Cart
SNZS-M1.6-2 M1.6 0.35 2 2.3 0.5 0 0.1 50 0.033 13.66 CAD Cart
SNZS-M1.6-3 M1.6 0.35 3 2.3 0.5 0 0.1 50 0.043 11.38 CAD Cart
SNZS-M1.6-4 M1.6 0.35 4 2.3 0.5 0 0.1 50 0.053 11.38 CAD Cart
SNZS-M1.6-5 M1.6 0.35 5 2.3 0.5 0 0.1 50 0.063 11.38 CAD Cart
SNZS-M1.6-6 M1.6 0.35 6 2.3 0.5 0 0.1 50 0.071 11.38 CAD Cart
SNZS-M1.6-8 M1.6 0.35 8 2.3 0.5 0 0.1 50 0.09 12.21 CAD Cart
SNZS-M1.6-10 M1.6 0.35 10 2.3 0.5 0 0.1 50 0.11 12.94 CAD Cart
SNZS-M1.6-12 M1.6 0.35 12 2.3 0.5 0 0.1 50 0.13 13.66 CAD Cart
SNZS-M1.7-2 M1.7 0.35 2 2.5 0.5 0 0.14 50 0.036 17.43 CAD Cart
SNZS-M1.7-3 M1.7 0.35 3 2.5 0.5 0 0.14 50 0.048 17.43 CAD Cart
SNZS-M1.7-4 M1.7 0.35 4 2.5 0.5 0 0.14 50 0.06 11.38 CAD Cart
SNZS-M1.7-5 M1.7 0.35 5 2.5 0.5 0 0.14 50 0.072 11.38 CAD Cart
SNZS-M1.7-6 M1.7 0.35 6 2.5 0.5 0 0.14 50 0.084 11.38 CAD Cart
SNZS-M1.7-8 M1.7 0.35 8 2.5 0.5 0 0.14 50 0.11 12.21 CAD Cart
SNZS-M1.7-10 M1.7 0.35 10 2.5 0.5 0 0.14 50 0.13 12.21 CAD Cart
SNZS-M1.7-12 M1.7 0.35 12 2.5 0.5 0 0.14 50 0.16 12.21 CAD Cart
SNZS-M1.7-14 M1.7 0.35 14 2.5 0.5 0 0.14 50 0.18 12.21 CAD Cart
SNZS-M2-2 M2 0.4 2 3 0.6 0 0.22 50 0.055 12.21 CAD Cart
SNZS-M2-2.5 M2 0.4 2.5 3 0.6 0 0.22 50 0.064 8.42 CAD Cart
SNZS-M2-3 M2 0.4 3 3 0.6 0 0.22 50 0.072 8.42 CAD Cart
SNZS-M2-3.5 M2 0.4 3.5 3 0.6 0 0.22 50 0.081 14.49 CAD Cart
SNZS-M2-4 M2 0.4 4 3 0.6 0 0.22 50 0.089 8.42 CAD Cart
SNZS-M2-5 M2 0.4 5 3 0.6 0 0.22 50 0.11 8.42 CAD Cart
SNZS-M2-6 M2 0.4 6 3 0.6 0 0.22 50 0.12 8.42 CAD Cart
SNZS-M2-8 M2 0.4 8 3 0.6 0 0.22 50 0.16 9.14 CAD Cart
SNZS-M2-10 M2 0.4 10 3 0.6 0 0.22 50 0.19 12.21 CAD Cart
SNZS-M2-12 M2 0.4 12 3 0.6 0 0.22 50 0.23 12.21 CAD Cart
SNZS-M2-14 M2 0.4 14 3 0.6 0 0.22 50 0.26 12.21 CAD Cart
SNZS-M2.5-3 M2.5 0.45 3 3.8 0.8 0 0.46 50 0.13 12.21 CAD Cart
SNZS-M2.5-4 M2.5 0.45 4 3.8 0.8 0 0.46 50 0.15 9.14 CAD Cart
SNZS-M2.5-5 M2.5 0.45 5 3.8 0.8 0 0.46 50 0.18 9.14 CAD Cart
SNZS-M2.5-6 M2.5 0.45 6 3.8 0.8 0 0.46 50 0.21 9.14 CAD Cart
SNZS-M2.5-8 M2.5 0.45 8 3.8 0.8 0 0.46 50 0.28 9.14 CAD Cart
SNZS-M2.5-10 M2.5 0.45 10 3.8 0.8 0 0.46 50 0.34 8.65 CAD Cart
SNZS-M2.6-2.5 M2.6 0.45 2.5 4 0.8 0 0.53 50 0.13 13.66 CAD Cart
SNZS-M2.6-3 M2.6 0.45 3 4 0.8 0 0.53 50 0.15 13.66 CAD Cart
SNZS-M2.6-4 M2.6 0.45 4 4 0.8 0 0.53 50 0.18 12.21 CAD Cart
SNZS-M2.6-5 M2.6 0.45 5 4 0.8 0 0.53 50 0.21 12.21 CAD Cart
SNZS-M2.6-6 M2.6 0.45 6 4 0.8 0 0.53 50 0.24 12.21 CAD Cart
SNZS-M2.6-8 M2.6 0.45 8 4 0.8 0 0.53 50 0.3 12.21 CAD Cart
SNZS-M2.6-10 M2.6 0.45 10 4 0.8 0 0.53 50 0.36 9.81 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNZS-M
Main Body SUSXM7
(Equivalent to SUS304)

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

  • Miniature screws for precision instruments in sizes from M1 to M2.6.
  • Pan head machine screws of low profile. For applications with limited overhead space.
