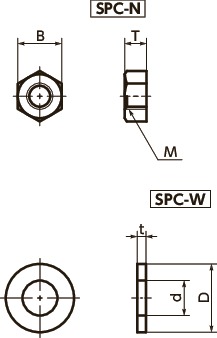

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | B | T | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|
| SPC-M2-N | M2 | 0.4 | 4 | 1.6 | 50 | 0.019 | 23.62 | CAD | Cart |
| SPC-M2.6-N | M2.6 | 0.45 | 5 | 2 | 50 | 0.043 | 23.62 | CAD | Cart |
| SPC-M3-N | M3 | 0.5 | 5.5 | 2.4 | 50 | 0.052 | 7.31 | CAD | Cart |
| SPC-M4-N | M4 | 0.7 | 7 | 3.2 | 50 | 0.12 | 7.31 | CAD | Cart |
| SPC-M5-N | M5 | 0.8 | 8 | 4 | 50 | 0.18 | 10.59 | CAD | Cart |
| SPC-M6-N | M6 | 1 | 10 | 5 | 20 | 0.37 | 4.51 | CAD | Cart |
| SPC-M8-N | M8 | 1.25 | 13 | 6.5 | 20 | 0.37 | 5.57 | CAD | Cart |
Related Services
Material/Finish
| SPC-N/SPC-W | |
|---|---|

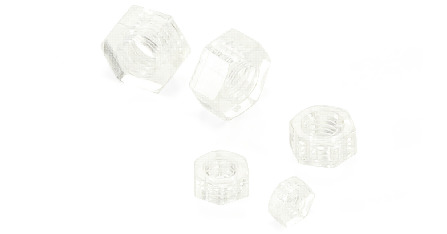

| Main body | PC (Polycarbonate) (Transparent) |
| Heat Resistance Temperature＊1 | 115℃ |
＊1： This is the value for the plastic material. The maximum operating temperature of the product changes with performance conditions such as tightening torque.
Application
Electrical and electronic equipment and automobilesCharacteristics
- PC (polycarbonate) has the highest shock resistance of engineering plastics.
- Max. Operating Temperature＊1 (min./max.）：-40/115°C
- PC has low water absorbency and excellent weather resistance.
- The properties and precautions of plastic screws⇒Plastic Screws
