Non-Magnetic
These screws have low magnetic permeability.
They are suitable for semiconductor manufacturing equipment, FPD manufacturing equipment, electronic devices, and MRI machines where magnetic interference is undesirable.

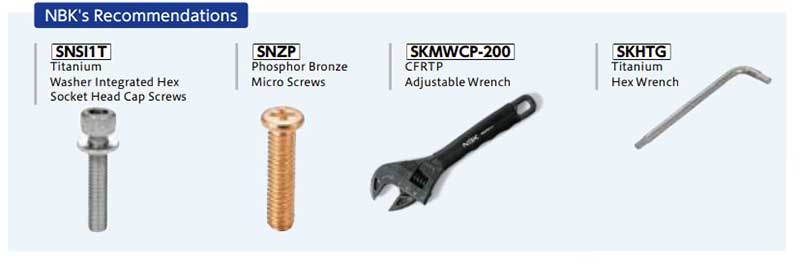

In addition to bolts, nuts, and washers, non-magnetic tools are also available.
These are ideal for assembling and maintaining equipment and devices in strong magnetic field environments.
| Image |  |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Socket Head Cap Screws with Small Head - Titanium | Socket Head Cap Screws with Small Head - Titanium | Vented Socket Head Cap Screws with Small Head - Titanium | Socket Head Cap Screws with Ultra Low Small Head - Titanium | Socket Head Cap Screws with Ultra Low Small Head - Titanium | Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium | Titanium Hex Socket Head Cap Screws with Captive Washers | Titanium Hex Socket Head Cap Screws with Captive Washers | Titanium Hex Socket Head Cap Screws with Captive Washers |
| Part Number | SNST-SD | SNST-SD-UT | SVST-SD | SSHT-SD | SSHT-SD-UT | SVSHT-SD | SNSI1T | SNSI1T-UT | SNSI3T |
| Feature | Small Head Lightweight Non-magnetic Chemical Resistance |
Small Head Lightweight Non-magnetic Chemical Resistance |
Small Head Lightweight Non-magnetic Chemical Resistance Lightweight |
Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head |
Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head |
Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight |
Integrated Washers I=1 |
Integrated Washers I=1 |
Integrated Washers I=3 |
| Material | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium |
| Surface Treatment | Special Chemical Polishing | - | Special Chemical Polishing | Special Chemical Polishing | - | Special Chemical Polishing | Special Chemical Polishing | - | Special Chemical Polishing |
| Thread Size | M3 ～ M6 | M3 ～ M6 | M3 ～ M5 | M3 ～ M6 | M3 ～ M6 | M3 ～ M6 | M3 ～ M6 | M3 ～ M6 | M3 ～ M6 |
| Operating Temperature (℃) | - | - | - | - | - | - | - | - | - |
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
| List | SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD | SNST-M3-SD-UT SNST-M4-SD-UT SNST-M5-SD-UT SNST-M6-SD-UT | SVST-M3-SD SVST-M4-SD SVST-M5-SD | SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD | SSHT-M3-SD-UT SSHT-M4-SD-UT SSHT-M5-SD-UT SSHT-M6-SD-UT | SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD | SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6 | SNSI1T-M3-UT SNSI1T-M4-UT SNSI1T-M5-UT SNSI1T-M6-UT | SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6 |
| Image |  |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Titanium Hex Socket Head Cap Screws with Captive Washers | Socket Head Cap Captive Screws - High Intensity Titanium | Socket Head Cap Captive Screws - Titanium | Phosphor Bronze Pan Head Machine Screws for Precision Instruments (Miniature Screws) | Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy | Cross Recessed Pan Head Machine Screws - Titanium | Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy | Cross Recessed Flat Head Machine Screws - Titanium | Hex Nuts / Hex Flange Nuts - Titanium |
| Part Number | SNSI3T-UT | SSC-SNSTG | SSC-SNST | SNZP | SNPTG | SNPT | SNFTG | SNFT | SHNT |
| Feature | Integrated Washers I=3 |
High Strength Lightweight Non-magnetic Corrosion Resistance Captive/Loss Prevention |
Lightweight Non-magnetic Chemical Resistance Captive/Loss Prevention |
Non-magnetic Pan Head Machine Screws for Precision Instruments |
High Strength Lightweight Nonmagnetic Corrosion Resistance |
Lightweight Nonmagnetic Chemical Resistance |
High Strength Lightweight Nonmagnetic Corrosion Resistance |
Lightweight Nonmagnetic Chemical Resistance |
Lightweight Nonmagnetic Chemical Resistance |
| Material | Grade 2 Titanium | Grade 5 Titanium | Grade 2 Titanium | C5191 (Phosphor Bronze) | β Titanium | Grade 2 Titanium | β Titanium | Grade 2 Titanium | Grade 2 Titanium |
| Surface Treatment | - | - | Special Chemical Polishing | - | Special Chemical Polishing | Special Chemical Polishing | Special Chemical Polishing | Special Chemical Polishing | Special Chemical Polishing |
| Thread Size | M3 ～ M6 | M3 ～ M8 | M3 ～ M6 | M2 ～ M2.5 | M3 ～ M5 | M2 ～ M5 | M3 ～ M5 | M3 ～ M4 | M3 ～ M10 |
| Operating Temperature (℃) | - | - | - | - | - | - | - | - | - |
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
| List | SNSI3T-M3-UT SNSI3T-M4-UT SNSI3T-M5-UT SNSI3T-M6-UT | SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8 | SSC-SNST-M3 SSC-SNST-M4 SSC-SNST-M5 SSC-SNST-M6 | SNZP-M2 SNZP-M2.5 | SNPTG-M3 SNPTG-M4 SNPTG-M5 | SNPT-M2 SNPT-M2.5 SNPT-M3 SNPT-M4 SNPT-M5 | SNFTG-M3 SNFTG-M4 SNFTG-M5 | SNFT-M3 SNFT-M4 | SHNT-M10 SHNT-M3 SHNT-M4 SHNT-M5 SHNT-M6 SHNT-M8 |
| Image |  |
 |
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Hex Nuts / Hex Flange Nuts - Titanium | Hex Lock Nuts - Titanium | Washers - Titanium | Washers - Titanium | Hex Socket Head Cap Screws - Phosphor Bronze | CFRTP Adjustable Wrench | Titanium Hexagon Key | ||
| Part Number | SHNT-F | SWUT | SWAT-F | SWAT-S | SNSP | SKMWCP-200 | SKHTG | ||
| Feature | Lightweight Nonmagnetic Chemical Resistance With Flange |
Lightweight Nonmagnetic Vibration Resistant |
Lightweight Nonmagnetic Chemical Resistance |
Lightweight Nonmagnetic Chemical Resistance |
Non-Magnetic | Non-magnetic Tool | Non-magnetic Tool | ||
| Material | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | Grade 2 Titanium | C5191 (Phosphor Bronze) | CFRTP (Carbon Fiber Reinforced Thermoplastics resin) | Grade 5 Titanium | ||
| Surface Treatment | Special Chemical Polishing | Special Chemical Polishing | - | - | - | - | Barrel Polishing | ||
| Thread Size | M3 ～ M10 | M3 ～ M10 | M3 ～ M10 | M3 ～ M10 | M2 ～ M8 | - | - | ||
| Operating Temperature (℃) | - | - | - | - | - | - | - | ||
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | ||
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | ||
| List | SHNT-M10-F SHNT-M3-F SHNT-M4-F SHNT-M5-F SHNT-M6-F SHNT-M8-F | SWUT-M10 SWUT-M3 SWUT-M4 SWUT-M5 SWUT-M6 SWUT-M8 | SWAT-10-F SWAT-3-F SWAT-4-F SWAT-5-F SWAT-6-F SWAT-8-F | SWAT-10-S SWAT-3-S SWAT-4-S SWAT-5-S SWAT-6-S SWAT-8-S | SNSP-M2 SNSP-M2.5 SNSP-M3 SNSP-M4 SNSP-M5 SNSP-M6 SNSP-M8 | SKMWCP-200 | SKHTG-1.5 SKHTG-2 SKHTG-2.5 SKHTG-3 SKHTG-4 SKHTG-5 SKHTG-6 |
