Low Outgassing

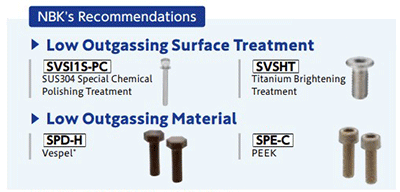

These are screws made of materials and surface treatments that emit low levels of outgassing.
Due to their minimal outgassing, these screws are ideal for vacuum environments such as vacuum chambers used in semiconductor manufacturing.

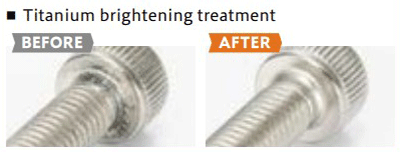

There are also titanium screws with low outgassing that have undergone brightening treatment.
Low-Outgassing_2en Low-Outgassing_1en
＊Vespel is a registered trademark of DuPont.

Part Name	Vented Socket Head Cap Screws	Vented Socket Head Cap Screws - Chemical Polish	Vented Inch Socket Head Cap Screws	Vented Socket Head Cap Screws with Captive Wahsers - Chemical Polish	Socket Head Cap Screws - 316L Stainless Steel - Specialized Chemical Polishing	High Strength Stainless Steel Socket Head Cap Screws - Specialized Chemical Polishing	High Strength Stainless Steel Socket Head Cap Screws – Low Temperature Black Chrome Treatment	Vented High Strength Stainless Steel Socket Head Cap Screws – Specialized Chemical Polishing	Vented Socket Head Cap Screws - Titanium
Part Number	SVSS	SVSS-PC	SVSS(INCH)	SVSI1S-PC	SNSL-PC	SNSLG-PC	SNSLG-RY	SVSLG-PC	SVST
Feature	Standard	Low Outgas	Inch Thread Socket Head Cap Screws	Captive Washers I=1	Heat Resistance Corrosion Resistance Non-magnetic Low Outgas	High Strength (Strength Class 10.8 Equivalent) Low Outgas Non-magnetic	High Strength (Strength Class 10.8 Equivalent) Non-magnetic Chemical Resistance Anti-reflection Seizing Prevention	High Strength (Strength Class 10.8 Equivalent)	Lightweight Nonmagnetic Chemical Resistance
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L	SUS316L	SUS316L	Grade 2 Titanium
Surface Treatment	-	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Low temperature black chrome treatment	Special Chemical Polishing	Special Chemical Polishing
Thread Size	M2 ～ M12	M3 ～ M12	No.4-40UNC ～ 1/4-20UNC	M3 ～ M6	M3 ～ M8	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M5
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSS-M10 SVSS-M12 SVSS-M2 SVSS-M2.5 SVSS-M3 SVSS-M4 SVSS-M5 SVSS-M6 SVSS-M8	SVSS-M10-PC SVSS-M12-PC SVSS-M3-PC SVSS-M4-PC SVSS-M5-PC SVSS-M6-PC SVSS-M8-PC	SVSS-#10-24 SVSS-#10-32 SVSS-#4-40 SVSS-#5-40 SVSS-#6-32 SVSS-#8-32 SVSS-1/4-20	SVSI1S-M3-PC SVSI1S-M4-PC SVSI1S-M5-PC SVSI1S-M6-PC	SNSL-M3-PC SNSL-M4-PC SNSL-M5-PC SNSL-M6-PC SNSL-M8-PC	SNSLG-M3-PC SNSLG-M4-PC SNSLG-M5-PC SNSLG-M6-PC	SNSLG-M3-RY SNSLG-M4-RY SNSLG-M5-RY SNSLG-M6-RY	SVSLG-M3-PC SVSLG-M4-PC SVSLG-M5-PC SVSLG-M6-PC	SVST-M3 SVST-M4 SVST-M5

Part Name	Vented Socket Head Cap Screws with Ultra Low Profile - Titanium	Socket Head Cap Screws with Small Head - Titanium	Vented Socket Head Cap Screws with Small Head - Titanium	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium	Vented Hex Head Screws	Vented Cross Recessed Flat Head Machine Screws - Titanium	Vented Cross Recessed Pand Head Machine Screws - Titanium	Washers with Vent Groove
Part Number	SVSHT	SNST-SD	SVST-SD	SSHT-SD	SVSHT-SD	SVHS	SVFT	SVPT	SWAS-VF
Feature	Lightweight Sapce-Saving Ultra Low Profile Nonmagnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance Lightweight	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight	Hex head screws	Titanium Phillips Cross Recessed Flat Head Machine Screw Low outgas Nonmagnetic	Titanium Phillips Cross Recessed Pan Head Machine Screw Low outgas Nonmagnetic	Standard
Material	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium	SUS304
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M5	M3 ～ M6	M3 ～ M6	M3 ～ M8	M3 ～ M4	M3 ～ M5	M2 ～ M12
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6	SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD	SVST-M3-SD SVST-M4-SD SVST-M5-SD	SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD	SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD	SVHS-M3 SVHS-M4 SVHS-M5 SVHS-M6 SVHS-M8	SVFT-M3 SVFT-M4	SVPT-M3 SVPT-M4 SVPT-M5	SWAS-10-VF SWAS-12-VF SWAS-2.5-VF SWAS-2-VF SWAS-3-VF SWAS-4-VF SWAS-5-VF SWAS-6-VF SWAS-8-VF

Part Name	Washers with Vent Groove - Chemical Polish	Socket Head Cap Screws - Specialized Chemical Polishing	Hex Socket Head Cap Screws - Super Black	Hex Socket Head Cap Screws - Low Temperature Black Chrome	Flanged Socket Head Cap Screws - Specialized Chemical Polishing	Flanged Socket Head Cap Screws - Low Temperature Black Chrome Treatment	Vented Flanged Socket Head Cap Screws – Specialized Chemical Polishing	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers
Part Number	SWAS-VF-PC	SNSS-PC	SNSS-BK	SNSS-RY	SFSS-PC	SFSS-RY	SVFSS-PC	SNSI1T	SNSI3T
Feature	Low outgas	Low Outgas	Reflection Resistance Corrosion Resistance	Chemical Resistance Reflection Resistance Seizing Prevention	Flanged Low Outgas	Flanged Chemical Resistance Anti-reflection Seizing Prevention	With Flange Low Outgas	Captive Washers I=1	Captive Washers I=3
Material	SUS304	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	Stainless Steel Black	Low temperature black chrome treatment	Special Chemical Polishing	Low temperature black chrome treatment	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing
Thread Size	M3 ～ M12	M3 ～ M8	M2 ～ M10	M3 ～ M10	M4 ～ M8	M4 ～ M8	M4 ～ M8	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SWAS-10-VF-PC SWAS-12-VF-PC SWAS-3-VF-PC SWAS-4-VF-PC SWAS-5-VF-PC SWAS-6-VF-PC SWAS-8-VF-PC	SNSS-M3-PC SNSS-M4-PC SNSS-M5-PC SNSS-M6-PC SNSS-M8-PC	SNSS-M10-BK SNSS-M2-BK SNSS-M3-BK SNSS-M4-BK SNSS-M5-BK SNSS-M6-BK SNSS-M8-BK	SNSS-M10-RY SNSS-M3-RY SNSS-M4-RY SNSS-M5-RY SNSS-M6-RY SNSS-M8-RY	SFSS-M4-PC SFSS-M5-PC SFSS-M6-PC SFSS-M8-PC	SFSS-M4-RY SFSS-M5-RY SFSS-M6-RY SFSS-M8-RY	SVFSS-M4-PC SVFSS-M5-PC SVFSS-M6-PC SVFSS-M8-PC	SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6	SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6

Part Name	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment	Vented Socket Head Cap Captive Screws	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SP-1）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SP-1）	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SCP-5000）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SCP-5000）	Plastic Screws - Hex Socket Head Cap Screws - PEEK GF30	Plastic Socket Head Cap Screws - PEEK	Plastic Low Profile Socket Head Screws - PEEK
Part Number	SSC-RY	SSC-SVSS	SPD-C	SPD-H	SPDC-C	SPDC-H	SPEG-C	SPE-C	SPE-LC
Feature	Chemical Resistance Anti-reflection Seizing Prevention Captive / Loss Prevention	Captive / Loss Prevention	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	High Strength High Specific Strength Heat Resistance Chemical Resistance Low Outgas Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation Space-saving
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	VESPEL® SP-1	VESPEL® SP-1	VESPEL® SCP-5000	VESPEL® SCP-5000	PEEK GF30	PEEK	PEEK
Surface Treatment	Low temperature black chrome treatment	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M5	M3 ～ M12	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY	SSC-SVSS-M3 SSC-SVSS-M4 SSC-SVSS-M5 SSC-SVSS-M6 SSC-SVSS-M8	SPD-M3-C SPD-M4-C SPD-M5-C SPD-M6-C SPD-M8-C	SPD-M3-H SPD-M4-H SPD-M5-H SPD-M6-H SPD-M8-H	SPDC-M3-C SPDC-M4-C SPDC-M5-C SPDC-M6-C SPDC-M8-C	SPDC-M3-H SPDC-M4-H SPDC-M5-H SPDC-M6-H SPDC-M8-H	SPEG-M3-C SPEG-M4-C SPEG-M5-C	SPE-M10-C SPE-M10-C(50) SPE-M12-C SPE-M12-C(50) SPE-M3-C SPE-M3-C(100) SPE-M4-C SPE-M4-C(100) SPE-M5-C SPE-M5-C(100) SPE-M6-C SPE-M6-C(100) SPE-M8-C SPE-M8-C(100)	SPE-M3-LC SPE-M3-LC(100) SPE-M4-LC SPE-M4-LC(100) SPE-M5-LC SPE-M5-LC(100) SPE-M6-LC SPE-M6-LC(100)

Part Name	Plastic Low Profile Hexalobular Socket Head Screws - PEEK	Plastic Ultra Low Profile Hexalobular Socket Head Screws - PEEK	Plastic Hexagonal Standoffs - PEEK	Plastic Cross Recessed Flat Head Machine Screws - PEEK	Plastic Socket Set Screws - PEEK	Plastic Cross Recessed Pan Head Machine Screws - PEEK	Plastic Fully Threaded Socket Head Cap Screws - PEEK	Plastic Hex Head Screws - PEEK	Plastic Cross Recessed Micro Pan Head Machine Screws - PEEK
Part Number	SPE-LH	SPE-SH	SPE-HB	SPE-F	SPE-T	SPE-P	SPE-FT	SPE-H	SPE-MC
Feature	Low Outgas Chemical Resistance Heat Resistance Tightening Hole Damage Prevention Electrical Insulation Space-saving	Low Outgas Chemical Resistance Heat Resistance Tightening Hole Damage Prevention Electrical Insulation Space-saving Decoration	Female Threaded on Both End Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation Full Thread	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation For Precision Instruments
Material	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M8	M2 ～ M8	M3 ～ M8	M1.7 ～ M8	M3 ～ M8	M4 ～ M12	M1.2 ～ M1.6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M3-LH SPE-M3-LH(100) SPE-M4-LH SPE-M4-LH(100) SPE-M5-LH SPE-M5-LH(100) SPE-M6-LH SPE-M6-LH(100)	SPE-M3-SH SPE-M3-SH(100) SPE-M4-SH SPE-M4-SH(100) SPE-M5-SH SPE-M5-SH(100) SPE-M6-SH SPE-M6-SH(100)	SPE-M3-HB SPE-M3-HB(100) SPE-M4-HB SPE-M4-HB(100) SPE-M5-HB SPE-M5-HB(100) SPE-M6-HB SPE-M6-HB(100) SPE-M6-HB(50) SPE-M8-HB SPE-M8-HB(50)	SPE-M2.6-F SPE-M2.6-F(100) SPE-M2-F SPE-M2-F(100) SPE-M3-F SPE-M3-F(100) SPE-M4-F SPE-M4-F(100) SPE-M5-F SPE-M5-F(100) SPE-M6-F SPE-M6-F(100) SPE-M8-F SPE-M8-F(100)	SPE-M3-T SPE-M3-T(100) SPE-M4-T SPE-M4-T(100) SPE-M5-T SPE-M5-T(100) SPE-M6-T SPE-M6-T(100) SPE-M8-T SPE-M8-T(100)	SPE-M1.7-P SPE-M1.7-P(100) SPE-M2.6-P SPE-M2.6-P(100) SPE-M2-P SPE-M2-P(100) SPE-M3-P SPE-M3-P(100) SPE-M4-P SPE-M4-P(100) SPE-M5-P SPE-M5-P(100) SPE-M6-P SPE-M6-P(100) SPE-M8-P SPE-M8-P(100)	SPE-M3-C-FT SPE-M3-C-FT(50) SPE-M4-C-FT SPE-M4-C-FT(100) SPE-M4-C-FT(50) SPE-M5-C-FT SPE-M5-C-FT(50) SPE-M6-C-FT SPE-M6-C-FT(50) SPE-M8-C-FT SPE-M8-C-FT(50)	SPE-M10-H SPE-M10-H(50) SPE-M12-H SPE-M12-H(50) SPE-M4-H SPE-M4-H(100) SPE-M4-H(50) SPE-M5-H SPE-M5-H(100) SPE-M5-H(50) SPE-M6-H SPE-M6-H(100) SPE-M6-H(50) SPE-M8-H SPE-M8-H(100) SPE-M8-H(50)	SPE-M1.2-MC SPE-M1.2-MC(100) SPE-M1.4-MC SPE-M1.4-MC(100) SPE-M1.6-MC SPE-M1.6-MC(100)

Part Name	Plastic Cross Recessed Micro Pan Head Machine Screws - PEEK - Type 1	Plastic Cross Recessed Micro Pan Head Machine Screws - PEEK - Type 3	Plastic Cross Recessed Micro Flat Head Machine Screws - PEEK	Plastic Hex Nuts - PEEK	Plastic Washers - PEEK	Plastic Socket Head Tapered Screw Plugs - PEEK	Plastic Inch Cross Recessed Pan Head Machine Screws - PEEK	Plastic Inch Cross Recessed Pan Head Machine Screws - PEEK GF30	Plastic Inch Hex Head Screws - PEEK
Part Number	SPE-MC1	SPE-MC3	SPE-MF	SPE-N	SPE-W	SPE-R	SPE-P(INCH)	SPEG-P(INCH)	SPE-H(INCH)
Feature	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation For Precision Instruments	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation For Precision Instruments	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation For Precision Instruments	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Inch Threads High Strength High Specific Strength Heat Resistance Chemical Resistance Low Outgas Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation
Material	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK GF30	PEEK
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M1.2 ～ M1.6	M1.2 ～ M1.6	M1.2 ～ M1.6	M2.6 ～ M12	M2 ～ M12	R1/8" ～ R3/8"	No.2-56UNC ～ 1/4-20UNC	No.2-56UNC ～ 1/4-20UNC	1/4-20UNC ～ 3/8-16UNC
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M1.2-MC1 SPE-M1.2-MC1(100) SPE-M1.4-MC1 SPE-M1.4-MC1(100) SPE-M1.6-MC1 SPE-M1.6-MC1(100)	SPE-M1.2-MC3 SPE-M1.2-MC3(100) SPE-M1.4-MC3 SPE-M1.4-MC3(100) SPE-M1.6-MC3 SPE-M1.6-MC3(100)	SPE-M1.2-MF SPE-M1.2-MF(100) SPE-M1.4-MF SPE-M1.4-MF(100) SPE-M1.6-MF SPE-M1.6-MF(100)	SPE-M10-N SPE-M10-N(100) SPE-M12-N SPE-M12-N(100) SPE-M2.6-N SPE-M2.6-N(100) SPE-M2-N SPE-M2-N(100) SPE-M3-N SPE-M3-N(100) SPE-M4-N SPE-M4-N(100) SPE-M5-N SPE-M5-N(100) SPE-M6-N SPE-M6-N(100) SPE-M8-N SPE-M8-N(100)	SPE-10-W SPE-10-W(100) SPE-12-W SPE-12-W(100) SPE-2.6-W SPE-2.6-W(100) SPE-2-W SPE-2-W(100) SPE-3-W SPE-3-W(100) SPE-4-W SPE-4-W(100) SPE-5-W SPE-5-W(100) SPE-6-W SPE-6-W(100) SPE-8-W SPE-8-W(100)	SPE-1-R SPE-1-R(100) SPE-2-R SPE-2-R(100) SPE-3-R SPE-3-R(100)	SPE-#10-24-P SPE-#10-24-P(100) SPE-#10-32-P SPE-#10-32-P(100) SPE-#2-56-P SPE-#2-56-P(100) SPE-#4-40-P SPE-#4-40-P(100) SPE-#6-32-P SPE-#6-32-P(100) SPE-#8-32-P SPE-#8-32-P(100) SPE-1/4-20-P SPE-1/4-20-P(100) SPE-1/4-20-P(50)	SPEG-#10-32-P SPEG-#10-32-P(100) SPEG-#2-56-P SPEG-#2-56-P(100) SPEG-#4-40-P SPEG-#4-40-P(100) SPEG-#6-32-P SPEG-#6-32-P(100) SPEG-#8-32-P SPEG-#8-32-P(100) SPEG-1/4-20-P SPEG-1/4-20-P(100)	SPE-1/4-20-H SPE-1/4-20-H(100) SPE-1/4-20-H(50) SPE-3/8-16-H SPE-3/8-16-H(50) SPE-5/16-18-H SPE-5/16-18-H(50)

Part Name	Plastic Inch Socket Head Cap Screws - PEEK	Plastic Inch Socket Head Cap Screws - PEEK GF30	Plastic Inch Slotted Pan Head Machine Screws - PEEK	Plastic Inch Slotted Flat Head Machine Screws - PEEK	Plastic Inch Hex Nuts - PEEK	Cover Caps
Part Number	SPE-C(INCH)	SPEG-C(INCH)	SPE-PS(INCH)	SPE-FS(INCH)	SPE-N(INCH)	SCAP-AL
Feature	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Inch Threads High Strength High Specific Strength Heat Resistance Chemical Resistance Low Outgas Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Chemical Resistance Heat Resistance Electrical Insulation	Low Outgas Heat Resistance Chemical Resistance Electrical Insulation	Low Outgas Corrosion Resistance
Material	PEEK	PEEK GF30	PEEK	PEEK	PEEK	A5056
Surface Treatment	-	-	-	-	-	-
Thread Size	No.2-56UNC ～ 3/8-16UNC	No.2-56UNC ～ 1/4-20UNC	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ 1/4-20UNC	M5 ～ M16
Operating Temperature (℃)	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-#10-24-C SPE-#10-24-C(100) SPE-#10-32-C SPE-#10-32-C(100) SPE-#2-56-C SPE-#2-56-C(100) SPE-#4-40-C SPE-#4-40-C(100) SPE-#6-32-C SPE-#6-32-C(100) SPE-#8-32-C SPE-#8-32-C(100) SPE-1/4-20-C SPE-1/4-20-C(100) SPE-1/4-20-C(50) SPE-3/8-16-C SPE-3/8-16-C(50) SPE-5/16-18-C SPE-5/16-18-C(50)	SPEG-#10-32-C SPEG-#10-32-C(100) SPEG-#2-56-C SPEG-#2-56-C(100) SPEG-#4-40-C SPEG-#4-40-C(100) SPEG-#6-32-C SPEG-#6-32-C(100) SPEG-#8-32-C SPEG-#8-32-C(100) SPEG-1/4-20-C SPEG-1/4-20-C(100)	SPE-#10-32-PS SPE-#10-32-PS(100) SPE-#4-40-PS SPE-#4-40-PS(100) SPE-#6-32-PS SPE-#6-32-PS(100) SPE-#8-32-PS SPE-#8-32-PS(100)	SPE-#10-32-FS SPE-#10-32-FS(100) SPE-#4-40-FS SPE-#4-40-FS(100) SPE-#6-32-FS SPE-#6-32-FS(100) SPE-#8-32-FS SPE-#8-32-FS(100)	SPE-#10-24-N SPE-#10-24-N(100) SPE-#10-32-N SPE-#10-32-N(100) SPE-#4-40-N SPE-#4-40-N(100) SPE-#6-32-N SPE-#6-32-N(100) SPE-#8-32-N SPE-#8-32-N(100) SPE-1/4-20-N SPE-1/4-20-N(100)	SCAP-10-AL SCAP-3-AL SCAP-4-AL SCAP-5-AL SCAP-6-AL SCAP-8-AL
