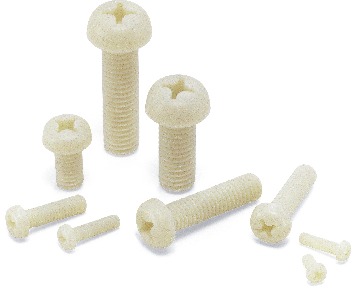

Plastic Screw - Cross Recessed Pan Head Machine Screws - RENY

SPA-P

Safety PrecautionsProperty

RoHS Compliant

  • High strength
  • High Specific Strength
SPA-PPlastic Screw - Cross Recessed Pan Head Machine Screws - RENY

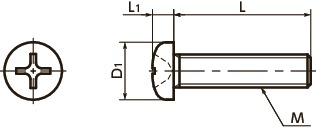

Dimension Drawing

SPA-PPlastic Screw - Cross Recessed Pan Head Machine Screws - RENY寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.7
M2.6
M2
M3
M4
M5
M6
M8
L
All
4
5
6
8
10
12
3
15
20
25
30
35
40

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Tension Rupture
Load(N)＊1		 Torsional Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SPA-M1.7-4-P M1.7 0.35 4 2.5 0.5 0 98 0.041 50 0.011 12.54 CAD Cart
SPA-M2.6-4-P M2.6 0.45 4 4.5 1.7 1 611 0.22 50 0.077 7.95 CAD Cart
SPA-M2.6-5-P M2.6 0.45 5 4.5 1.7 1 611 0.22 50 0.083 7.95 CAD Cart
SPA-M2.6-6-P M2.6 0.45 6 4.5 1.7 1 611 0.22 50 0.07 7.95 CAD Cart
SPA-M2.6-8-P M2.6 0.45 8 4.5 1.7 1 611 0.22 50 0.085 7.95 CAD Cart
SPA-M2.6-10-P M2.6 0.45 10 4.5 1.7 1 611 0.22 50 0.097 9.95 CAD Cart
SPA-M2.6-12-P M2.6 0.45 12 4.5 1.7 1 611 0.22 50 0.11 9.95 CAD Cart
SPA-M2-3-P M2 0.4 3 3.5 1.3 1 350 0.101 50 0.028 7.95 CAD Cart
SPA-M2-4-P M2 0.4 4 3.5 1.3 1 350 0.101 50 0.03 7.95 CAD Cart
SPA-M2-5-P M2 0.4 5 3.5 1.3 1 350 0.101 50 0.034 7.95 CAD Cart
SPA-M2-6-P M2 0.4 6 3.5 1.3 1 350 0.101 50 0.038 7.95 CAD Cart
SPA-M2-8-P M2 0.4 8 3.5 1.3 1 350 0.101 50 0.044 7.95 CAD Cart
SPA-M2-10-P M2 0.4 10 3.5 1.3 1 350 0.101 50 0.053 8.60 CAD Cart
SPA-M2-12-P M2 0.4 12 3.5 1.3 1 350 0.101 50 0.061 9.95 CAD Cart
SPA-M3-4-P M3 0.5 4 5.5 2 2 853 0.36 50 0.093 7.95 CAD Cart
SPA-M3-5-P M3 0.5 5 5.5 2 2 853 0.36 50 0.1 7.95 CAD Cart
SPA-M3-6-P M3 0.5 6 5.5 2 2 853 0.36 50 0.11 7.95 CAD Cart
SPA-M3-8-P M3 0.5 8 5.5 2 2 853 0.36 50 0.13 7.95 CAD Cart
SPA-M3-10-P M3 0.5 10 5.5 2 2 853 0.36 50 0.15 8.60 CAD Cart
SPA-M3-12-P M3 0.5 12 5.5 2 2 853 0.36 50 0.16 9.95 CAD Cart
SPA-M3-15-P M3 0.5 15 5.5 2 2 853 0.36 50 0.19 12.54 CAD Cart
SPA-M3-20-P M3 0.5 20 5.5 2 2 853 0.36 50 0.26 15.71 CAD Cart
SPA-M3-25-P M3 0.5 25 5.5 2 2 853 0.36 50 0.31 26.40 CAD Cart
SPA-M3-30-P M3 0.5 30 5.5 2 2 853 0.36 50 0.35 34.73 CAD Cart
SPA-M4-5-P M4 0.7 5 7 2.6 2 1499 0.85 50 0.2 9.95 CAD Cart
SPA-M4-6-P M4 0.7 6 7 2.6 2 1499 0.85 50 0.22 9.95 CAD Cart
SPA-M4-8-P M4 0.7 8 7 2.6 2 1499 0.85 50 0.25 10.59 CAD Cart
SPA-M4-10-P M4 0.7 10 7 2.6 2 1499 0.85 50 0.28 10.59 CAD Cart
SPA-M4-12-P M4 0.7 12 7 2.6 2 1499 0.85 50 0.32 12.54 CAD Cart
SPA-M4-15-P M4 0.7 15 7 2.6 2 1499 0.85 50 0.36 15.71 CAD Cart
SPA-M4-20-P M4 0.7 20 7 2.6 2 1499 0.85 50 0.52 19.21 CAD Cart
SPA-M4-25-P M4 0.7 25 7 2.6 2 1499 0.85 50 0.6 33.52 CAD Cart
SPA-M4-30-P M4 0.7 30 7 2.6 2 1499 0.85 50 0.68 39.89 CAD Cart
SPA-M5-8-P M5 0.8 8 9 3.3 2 2407 1.65 20 0.47 5.28 CAD Cart
SPA-M5-10-P M5 0.8 10 9 3.3 2 2407 1.65 20 0.52 5.56 CAD Cart
SPA-M5-12-P M5 0.8 12 9 3.3 2 2407 1.65 20 0.56 6.90 CAD Cart
SPA-M5-15-P M5 0.8 15 9 3.3 2 2407 1.65 20 0.66 8.44 CAD Cart
SPA-M5-20-P M5 0.8 20 9 3.3 2 2407 1.65 20 0.76 9.81 CAD Cart
SPA-M5-25-P M5 0.8 25 9 3.3 2 2407 1.65 20 0.98 13.75 CAD Cart
SPA-M5-30-P M5 0.8 30 9 3.3 2 2407 1.65 20 1.2 27.02 CAD Cart
SPA-M5-35-P M5 0.8 35 9 3.3 2 2407 1.65 20 1.3 35.77 CAD Cart
SPA-M6-10-P M6 1 10 10.5 3.9 3 3106 2.74 20 0.83 11.35 CAD Cart
SPA-M6-12-P M6 1 12 10.5 3.9 3 3106 2.74 20 0.9 11.93 CAD Cart
SPA-M6-15-P M6 1 15 10.5 3.9 3 3106 2.74 20 1 13.21 CAD Cart
SPA-M6-20-P M6 1 20 10.5 3.9 3 3106 2.74 20 1.2 15.09 CAD Cart
SPA-M6-25-P M6 1 25 10.5 3.9 3 3106 2.74 20 1.4 15.54 CAD Cart
SPA-M6-30-P M6 1 30 10.5 3.9 3 3106 2.74 20 1.8 23.90 CAD Cart
SPA-M6-35-P M6 1 35 10.5 3.9 3 3106 2.74 20 2.0 30.83 CAD Cart
SPA-M6-40-P M6 1 40 10.5 3.9 3 3106 2.74 20 2.1 43.87 CAD Cart
SPA-M8-12-P M8 1.25 12 14 5.2 3 5335 6.22 10 2.3 13.67 CAD Cart
SPA-M8-15-P M8 1.25 15 14 5.2 3 5335 6.22 10 2.5 14.55 CAD Cart
SPA-M8-20-P M8 1.25 20 14 5.2 3 5335 6.22 10 2.8 15.44 CAD Cart
SPA-M8-25-P M8 1.25 25 14 5.2 3 5335 6.22 10 3.2 18.03 CAD Cart
SPA-M8-30-P M8 1.25 30 14 5.2 3 5335 6.22 10 3.5 16.15 CAD Cart
SPA-M8-35-P M8 1.25 35 14 5.2 3 5335 6.22 10 3.8 20.96 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Tension Rupture
Load(N)＊1		 Torsional Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SPA-M1.7-4-P M1.7 0.35 4 2.5 0.5 0 98 0.041 50 0.011 12.54 CAD Cart
SPA-M2.6-4-P M2.6 0.45 4 4.5 1.7 1 611 0.22 50 0.077 7.95 CAD Cart
SPA-M2.6-5-P M2.6 0.45 5 4.5 1.7 1 611 0.22 50 0.083 7.95 CAD Cart
SPA-M2.6-6-P M2.6 0.45 6 4.5 1.7 1 611 0.22 50 0.07 7.95 CAD Cart
SPA-M2.6-8-P M2.6 0.45 8 4.5 1.7 1 611 0.22 50 0.085 7.95 CAD Cart
SPA-M2.6-10-P M2.6 0.45 10 4.5 1.7 1 611 0.22 50 0.097 9.95 CAD Cart
SPA-M2.6-12-P M2.6 0.45 12 4.5 1.7 1 611 0.22 50 0.11 9.95 CAD Cart
SPA-M2-3-P M2 0.4 3 3.5 1.3 1 350 0.101 50 0.028 7.95 CAD Cart
SPA-M2-4-P M2 0.4 4 3.5 1.3 1 350 0.101 50 0.03 7.95 CAD Cart
SPA-M2-5-P M2 0.4 5 3.5 1.3 1 350 0.101 50 0.034 7.95 CAD Cart
SPA-M2-6-P M2 0.4 6 3.5 1.3 1 350 0.101 50 0.038 7.95 CAD Cart
SPA-M2-8-P M2 0.4 8 3.5 1.3 1 350 0.101 50 0.044 7.95 CAD Cart
SPA-M2-10-P M2 0.4 10 3.5 1.3 1 350 0.101 50 0.053 8.60 CAD Cart
SPA-M2-12-P M2 0.4 12 3.5 1.3 1 350 0.101 50 0.061 9.95 CAD Cart
SPA-M3-4-P M3 0.5 4 5.5 2 2 853 0.36 50 0.093 7.95 CAD Cart
SPA-M3-5-P M3 0.5 5 5.5 2 2 853 0.36 50 0.1 7.95 CAD Cart
SPA-M3-6-P M3 0.5 6 5.5 2 2 853 0.36 50 0.11 7.95 CAD Cart
SPA-M3-8-P M3 0.5 8 5.5 2 2 853 0.36 50 0.13 7.95 CAD Cart
SPA-M3-10-P M3 0.5 10 5.5 2 2 853 0.36 50 0.15 8.60 CAD Cart
SPA-M3-12-P M3 0.5 12 5.5 2 2 853 0.36 50 0.16 9.95 CAD Cart
SPA-M3-15-P M3 0.5 15 5.5 2 2 853 0.36 50 0.19 12.54 CAD Cart
SPA-M3-20-P M3 0.5 20 5.5 2 2 853 0.36 50 0.26 15.71 CAD Cart
SPA-M3-25-P M3 0.5 25 5.5 2 2 853 0.36 50 0.31 26.40 CAD Cart
SPA-M3-30-P M3 0.5 30 5.5 2 2 853 0.36 50 0.35 34.73 CAD Cart
SPA-M4-5-P M4 0.7 5 7 2.6 2 1499 0.85 50 0.2 9.95 CAD Cart
SPA-M4-6-P M4 0.7 6 7 2.6 2 1499 0.85 50 0.22 9.95 CAD Cart
SPA-M4-8-P M4 0.7 8 7 2.6 2 1499 0.85 50 0.25 10.59 CAD Cart
SPA-M4-10-P M4 0.7 10 7 2.6 2 1499 0.85 50 0.28 10.59 CAD Cart
SPA-M4-12-P M4 0.7 12 7 2.6 2 1499 0.85 50 0.32 12.54 CAD Cart
SPA-M4-15-P M4 0.7 15 7 2.6 2 1499 0.85 50 0.36 15.71 CAD Cart
SPA-M4-20-P M4 0.7 20 7 2.6 2 1499 0.85 50 0.52 19.21 CAD Cart
SPA-M4-25-P M4 0.7 25 7 2.6 2 1499 0.85 50 0.6 33.52 CAD Cart
SPA-M4-30-P M4 0.7 30 7 2.6 2 1499 0.85 50 0.68 39.89 CAD Cart
SPA-M5-8-P M5 0.8 8 9 3.3 2 2407 1.65 20 0.47 5.28 CAD Cart
SPA-M5-10-P M5 0.8 10 9 3.3 2 2407 1.65 20 0.52 5.56 CAD Cart
SPA-M5-12-P M5 0.8 12 9 3.3 2 2407 1.65 20 0.56 6.90 CAD Cart
SPA-M5-15-P M5 0.8 15 9 3.3 2 2407 1.65 20 0.66 8.44 CAD Cart
SPA-M5-20-P M5 0.8 20 9 3.3 2 2407 1.65 20 0.76 9.81 CAD Cart
SPA-M5-25-P M5 0.8 25 9 3.3 2 2407 1.65 20 0.98 13.75 CAD Cart
SPA-M5-30-P M5 0.8 30 9 3.3 2 2407 1.65 20 1.2 27.02 CAD Cart
SPA-M5-35-P M5 0.8 35 9 3.3 2 2407 1.65 20 1.3 35.77 CAD Cart
SPA-M6-10-P M6 1 10 10.5 3.9 3 3106 2.74 20 0.83 11.35 CAD Cart
SPA-M6-12-P M6 1 12 10.5 3.9 3 3106 2.74 20 0.9 11.93 CAD Cart
SPA-M6-15-P M6 1 15 10.5 3.9 3 3106 2.74 20 1 13.21 CAD Cart
SPA-M6-20-P M6 1 20 10.5 3.9 3 3106 2.74 20 1.2 15.09 CAD Cart
SPA-M6-25-P M6 1 25 10.5 3.9 3 3106 2.74 20 1.4 15.54 CAD Cart
SPA-M6-30-P M6 1 30 10.5 3.9 3 3106 2.74 20 1.8 23.90 CAD Cart
SPA-M6-35-P M6 1 35 10.5 3.9 3 3106 2.74 20 2.0 30.83 CAD Cart
SPA-M6-40-P M6 1 40 10.5 3.9 3 3106 2.74 20 2.1 43.87 CAD Cart
SPA-M8-12-P M8 1.25 12 14 5.2 3 5335 6.22 10 2.3 13.67 CAD Cart
SPA-M8-15-P M8 1.25 15 14 5.2 3 5335 6.22 10 2.5 14.55 CAD Cart
SPA-M8-20-P M8 1.25 20 14 5.2 3 5335 6.22 10 2.8 15.44 CAD Cart
SPA-M8-25-P M8 1.25 25 14 5.2 3 5335 6.22 10 3.2 18.03 CAD Cart
SPA-M8-30-P M8 1.25 30 14 5.2 3 5335 6.22 10 3.5 16.15 CAD Cart
SPA-M8-35-P M8 1.25 35 14 5.2 3 5335 6.22 10 3.8 20.96 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Tension Rupture
Load(N)＊1		 Torsional Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SPA-M1.7-4-P M1.7 0.35 4 2.5 0.5 0 98 0.041 50 0.011 12.54 CAD Cart
SPA-M2.6-4-P M2.6 0.45 4 4.5 1.7 1 611 0.22 50 0.077 7.95 CAD Cart
SPA-M2.6-5-P M2.6 0.45 5 4.5 1.7 1 611 0.22 50 0.083 7.95 CAD Cart
SPA-M2.6-6-P M2.6 0.45 6 4.5 1.7 1 611 0.22 50 0.07 7.95 CAD Cart
SPA-M2.6-8-P M2.6 0.45 8 4.5 1.7 1 611 0.22 50 0.085 7.95 CAD Cart
SPA-M2.6-10-P M2.6 0.45 10 4.5 1.7 1 611 0.22 50 0.097 9.95 CAD Cart
SPA-M2.6-12-P M2.6 0.45 12 4.5 1.7 1 611 0.22 50 0.11 9.95 CAD Cart
SPA-M2-3-P M2 0.4 3 3.5 1.3 1 350 0.101 50 0.028 7.95 CAD Cart
SPA-M2-4-P M2 0.4 4 3.5 1.3 1 350 0.101 50 0.03 7.95 CAD Cart
SPA-M2-5-P M2 0.4 5 3.5 1.3 1 350 0.101 50 0.034 7.95 CAD Cart
SPA-M2-6-P M2 0.4 6 3.5 1.3 1 350 0.101 50 0.038 7.95 CAD Cart
SPA-M2-8-P M2 0.4 8 3.5 1.3 1 350 0.101 50 0.044 7.95 CAD Cart
SPA-M2-10-P M2 0.4 10 3.5 1.3 1 350 0.101 50 0.053 8.60 CAD Cart
SPA-M2-12-P M2 0.4 12 3.5 1.3 1 350 0.101 50 0.061 9.95 CAD Cart
SPA-M3-4-P M3 0.5 4 5.5 2 2 853 0.36 50 0.093 7.95 CAD Cart
SPA-M3-5-P M3 0.5 5 5.5 2 2 853 0.36 50 0.1 7.95 CAD Cart
SPA-M3-6-P M3 0.5 6 5.5 2 2 853 0.36 50 0.11 7.95 CAD Cart
SPA-M3-8-P M3 0.5 8 5.5 2 2 853 0.36 50 0.13 7.95 CAD Cart
SPA-M3-10-P M3 0.5 10 5.5 2 2 853 0.36 50 0.15 8.60 CAD Cart
SPA-M3-12-P M3 0.5 12 5.5 2 2 853 0.36 50 0.16 9.95 CAD Cart
SPA-M3-15-P M3 0.5 15 5.5 2 2 853 0.36 50 0.19 12.54 CAD Cart
SPA-M3-20-P M3 0.5 20 5.5 2 2 853 0.36 50 0.26 15.71 CAD Cart
SPA-M3-25-P M3 0.5 25 5.5 2 2 853 0.36 50 0.31 26.40 CAD Cart
SPA-M3-30-P M3 0.5 30 5.5 2 2 853 0.36 50 0.35 34.73 CAD Cart
SPA-M4-5-P M4 0.7 5 7 2.6 2 1499 0.85 50 0.2 9.95 CAD Cart
SPA-M4-6-P M4 0.7 6 7 2.6 2 1499 0.85 50 0.22 9.95 CAD Cart
SPA-M4-8-P M4 0.7 8 7 2.6 2 1499 0.85 50 0.25 10.59 CAD Cart
SPA-M4-10-P M4 0.7 10 7 2.6 2 1499 0.85 50 0.28 10.59 CAD Cart
SPA-M4-12-P M4 0.7 12 7 2.6 2 1499 0.85 50 0.32 12.54 CAD Cart
SPA-M4-15-P M4 0.7 15 7 2.6 2 1499 0.85 50 0.36 15.71 CAD Cart
SPA-M4-20-P M4 0.7 20 7 2.6 2 1499 0.85 50 0.52 19.21 CAD Cart
SPA-M4-25-P M4 0.7 25 7 2.6 2 1499 0.85 50 0.6 33.52 CAD Cart
SPA-M4-30-P M4 0.7 30 7 2.6 2 1499 0.85 50 0.68 39.89 CAD Cart
SPA-M5-8-P M5 0.8 8 9 3.3 2 2407 1.65 20 0.47 5.28 CAD Cart
SPA-M5-10-P M5 0.8 10 9 3.3 2 2407 1.65 20 0.52 5.56 CAD Cart
SPA-M5-12-P M5 0.8 12 9 3.3 2 2407 1.65 20 0.56 6.90 CAD Cart
SPA-M5-15-P M5 0.8 15 9 3.3 2 2407 1.65 20 0.66 8.44 CAD Cart
SPA-M5-20-P M5 0.8 20 9 3.3 2 2407 1.65 20 0.76 9.81 CAD Cart
SPA-M5-25-P M5 0.8 25 9 3.3 2 2407 1.65 20 0.98 13.75 CAD Cart
SPA-M5-30-P M5 0.8 30 9 3.3 2 2407 1.65 20 1.2 27.02 CAD Cart
SPA-M5-35-P M5 0.8 35 9 3.3 2 2407 1.65 20 1.3 35.77 CAD Cart
SPA-M6-10-P M6 1 10 10.5 3.9 3 3106 2.74 20 0.83 11.35 CAD Cart
SPA-M6-12-P M6 1 12 10.5 3.9 3 3106 2.74 20 0.9 11.93 CAD Cart
SPA-M6-15-P M6 1 15 10.5 3.9 3 3106 2.74 20 1 13.21 CAD Cart
SPA-M6-20-P M6 1 20 10.5 3.9 3 3106 2.74 20 1.2 15.09 CAD Cart
SPA-M6-25-P M6 1 25 10.5 3.9 3 3106 2.74 20 1.4 15.54 CAD Cart
SPA-M6-30-P M6 1 30 10.5 3.9 3 3106 2.74 20 1.8 23.90 CAD Cart
SPA-M6-35-P M6 1 35 10.5 3.9 3 3106 2.74 20 2.0 30.83 CAD Cart
SPA-M6-40-P M6 1 40 10.5 3.9 3 3106 2.74 20 2.1 43.87 CAD Cart
SPA-M8-12-P M8 1.25 12 14 5.2 3 5335 6.22 10 2.3 13.67 CAD Cart
SPA-M8-15-P M8 1.25 15 14 5.2 3 5335 6.22 10 2.5 14.55 CAD Cart
SPA-M8-20-P M8 1.25 20 14 5.2 3 5335 6.22 10 2.8 15.44 CAD Cart
SPA-M8-25-P M8 1.25 25 14 5.2 3 5335 6.22 10 3.2 18.03 CAD Cart
SPA-M8-30-P M8 1.25 30 14 5.2 3 5335 6.22 10 3.5 16.15 CAD Cart
SPA-M8-35-P M8 1.25 35 14 5.2 3 5335 6.22 10 3.8 20.96 CAD Cart
Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed
Socket Number		 Tension Rupture
Load(N)＊1		 Torsional Torque
(N・m)＊1		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SPA-M1.7-4-P M1.7 0.35 4 2.5 0.5 0 98 0.041 50 0.011 12.54 CAD Cart
SPA-M2.6-4-P M2.6 0.45 4 4.5 1.7 1 611 0.22 50 0.077 7.95 CAD Cart
SPA-M2.6-5-P M2.6 0.45 5 4.5 1.7 1 611 0.22 50 0.083 7.95 CAD Cart
SPA-M2.6-6-P M2.6 0.45 6 4.5 1.7 1 611 0.22 50 0.07 7.95 CAD Cart
SPA-M2.6-8-P M2.6 0.45 8 4.5 1.7 1 611 0.22 50 0.085 7.95 CAD Cart
SPA-M2.6-10-P M2.6 0.45 10 4.5 1.7 1 611 0.22 50 0.097 9.95 CAD Cart
SPA-M2.6-12-P M2.6 0.45 12 4.5 1.7 1 611 0.22 50 0.11 9.95 CAD Cart
SPA-M2-3-P M2 0.4 3 3.5 1.3 1 350 0.101 50 0.028 7.95 CAD Cart
SPA-M2-4-P M2 0.4 4 3.5 1.3 1 350 0.101 50 0.03 7.95 CAD Cart
SPA-M2-5-P M2 0.4 5 3.5 1.3 1 350 0.101 50 0.034 7.95 CAD Cart
SPA-M2-6-P M2 0.4 6 3.5 1.3 1 350 0.101 50 0.038 7.95 CAD Cart
SPA-M2-8-P M2 0.4 8 3.5 1.3 1 350 0.101 50 0.044 7.95 CAD Cart
SPA-M2-10-P M2 0.4 10 3.5 1.3 1 350 0.101 50 0.053 8.60 CAD Cart
SPA-M2-12-P M2 0.4 12 3.5 1.3 1 350 0.101 50 0.061 9.95 CAD Cart
SPA-M3-4-P M3 0.5 4 5.5 2 2 853 0.36 50 0.093 7.95 CAD Cart
SPA-M3-5-P M3 0.5 5 5.5 2 2 853 0.36 50 0.1 7.95 CAD Cart
SPA-M3-6-P M3 0.5 6 5.5 2 2 853 0.36 50 0.11 7.95 CAD Cart
SPA-M3-8-P M3 0.5 8 5.5 2 2 853 0.36 50 0.13 7.95 CAD Cart
SPA-M3-10-P M3 0.5 10 5.5 2 2 853 0.36 50 0.15 8.60 CAD Cart
SPA-M3-12-P M3 0.5 12 5.5 2 2 853 0.36 50 0.16 9.95 CAD Cart
SPA-M3-15-P M3 0.5 15 5.5 2 2 853 0.36 50 0.19 12.54 CAD Cart
SPA-M3-20-P M3 0.5 20 5.5 2 2 853 0.36 50 0.26 15.71 CAD Cart
SPA-M3-25-P M3 0.5 25 5.5 2 2 853 0.36 50 0.31 26.40 CAD Cart
SPA-M3-30-P M3 0.5 30 5.5 2 2 853 0.36 50 0.35 34.73 CAD Cart
SPA-M4-5-P M4 0.7 5 7 2.6 2 1499 0.85 50 0.2 9.95 CAD Cart
SPA-M4-6-P M4 0.7 6 7 2.6 2 1499 0.85 50 0.22 9.95 CAD Cart
SPA-M4-8-P M4 0.7 8 7 2.6 2 1499 0.85 50 0.25 10.59 CAD Cart
SPA-M4-10-P M4 0.7 10 7 2.6 2 1499 0.85 50 0.28 10.59 CAD Cart
SPA-M4-12-P M4 0.7 12 7 2.6 2 1499 0.85 50 0.32 12.54 CAD Cart
SPA-M4-15-P M4 0.7 15 7 2.6 2 1499 0.85 50 0.36 15.71 CAD Cart
SPA-M4-20-P M4 0.7 20 7 2.6 2 1499 0.85 50 0.52 19.21 CAD Cart
SPA-M4-25-P M4 0.7 25 7 2.6 2 1499 0.85 50 0.6 33.52 CAD Cart
SPA-M4-30-P M4 0.7 30 7 2.6 2 1499 0.85 50 0.68 39.89 CAD Cart
SPA-M5-8-P M5 0.8 8 9 3.3 2 2407 1.65 20 0.47 5.28 CAD Cart
SPA-M5-10-P M5 0.8 10 9 3.3 2 2407 1.65 20 0.52 5.56 CAD Cart
SPA-M5-12-P M5 0.8 12 9 3.3 2 2407 1.65 20 0.56 6.90 CAD Cart
SPA-M5-15-P M5 0.8 15 9 3.3 2 2407 1.65 20 0.66 8.44 CAD Cart
SPA-M5-20-P M5 0.8 20 9 3.3 2 2407 1.65 20 0.76 9.81 CAD Cart
SPA-M5-25-P M5 0.8 25 9 3.3 2 2407 1.65 20 0.98 13.75 CAD Cart
SPA-M5-30-P M5 0.8 30 9 3.3 2 2407 1.65 20 1.2 27.02 CAD Cart
SPA-M5-35-P M5 0.8 35 9 3.3 2 2407 1.65 20 1.3 35.77 CAD Cart
SPA-M6-10-P M6 1 10 10.5 3.9 3 3106 2.74 20 0.83 11.35 CAD Cart
SPA-M6-12-P M6 1 12 10.5 3.9 3 3106 2.74 20 0.9 11.93 CAD Cart
SPA-M6-15-P M6 1 15 10.5 3.9 3 3106 2.74 20 1 13.21 CAD Cart
SPA-M6-20-P M6 1 20 10.5 3.9 3 3106 2.74 20 1.2 15.09 CAD Cart
SPA-M6-25-P M6 1 25 10.5 3.9 3 3106 2.74 20 1.4 15.54 CAD Cart
SPA-M6-30-P M6 1 30 10.5 3.9 3 3106 2.74 20 1.8 23.90 CAD Cart
SPA-M6-35-P M6 1 35 10.5 3.9 3 3106 2.74 20 2.0 30.83 CAD Cart
SPA-M6-40-P M6 1 40 10.5 3.9 3 3106 2.74 20 2.1 43.87 CAD Cart
SPA-M8-12-P M8 1.25 12 14 5.2 3 5335 6.22 10 2.3 13.67 CAD Cart
SPA-M8-15-P M8 1.25 15 14 5.2 3 5335 6.22 10 2.5 14.55 CAD Cart
SPA-M8-20-P M8 1.25 20 14 5.2 3 5335 6.22 10 2.8 15.44 CAD Cart
SPA-M8-25-P M8 1.25 25 14 5.2 3 5335 6.22 10 3.2 18.03 CAD Cart
SPA-M8-30-P M8 1.25 30 14 5.2 3 5335 6.22 10 3.5 16.15 CAD Cart
SPA-M8-35-P M8 1.25 35 14 5.2 3 5335 6.22 10 3.8 20.96 CAD Cart

＊1：　Values in chart are for reference only. They are not guaranteed values.The recommendation torque is 50% of the torsional torque.

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SPA-P
Main body RENYTM＊1（50％ Glass Fiber
Reinforced Polyamide MXD6）（Ivory）
Heat Resistance
Temperature＊2		 105℃

＊1：　RENYTM is a trademark or registered trademark of Mitsubishi Gas Chemical Company, Inc.
＊2：　This is the value for the plastic material. The maximum operating temperature of the product changes with performance conditions such as tightening torque.


Application

Electrical and electronic equipment / Insulation and dew
condensation prevention for refrigerators and freezers / Aquatic
applications / Electrochemical plating / Lightweight applications in
automobiles, aircrafts, and spacecrafts

Characteristics

  • RENYTM is a thermoplastic super-engineering plastic with excellent tensile and flexural strength.
  • Screws have excellent fatigue resistance, creep resistance, and thermal insulation.
  • While it is nearly as strong as metal, its weight is approximately 1/5 of iron.
  • The properties and precautions of plastic screws⇒Plastic Screws

Product List

Click here to see Plastic Screws

SPE-MC

Part Name

Plastic screw - Cross Recessed Pan Head Machine Screws for Precision Instruments - PEEK

Part Number

SPE-MC

Feature

Heat Resistance
Chemical Resistance
For Precision Instruments

SPS-P

Part Name

Plastic Screw - Cross Recessed Pan Head Machine Screws - PPS

Part Number

SPS-P

Feature

High Specific Strength
Heat Resistance
Chemical Resistance

SPA-P(INCH)

Part Name

Plastic Screw - Cross Recessed Pan Head Machine Screw - RENY - Inch Thread

Part Number

SPA-P(INCH)

Feature

High Strength
High Specific Strength

SPA-MC

Part Name

Plastic screw - Cross Recessed Pan Head Machine Screws for Precision Instruments - RENY

Part Number

SPA-MC

Feature

High Strength
High Specific Strength
For Precision Instruments

Click here to see Special Screws

Chemical Resistance Screws

Chemical Resistance Screws

UNC Screws, UNF Screws

UNC Screws, UNF Screws

Loosening Prevention

Loosening Prevention

Washers, Insert

Washers, Insert
