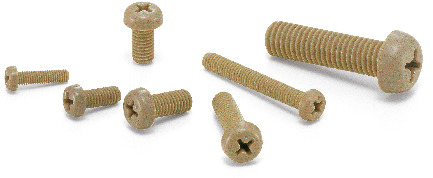

SPE-P/Plastic Cross Recessed Pan Head Machine Screws - PEEK

Heat-resistance
Chemical-proof
LowOutgas
Electrical Insulation

SPE-PPlastic Screws - Cross Recessed Pan Head Machine Screws - PEEK

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M1.7; M2; M2.6; M3; M4; M5; M6; M8

L: All; 4; 5; 6; 8; 10; 12; 15; 16; 20; 25; 50; 30; 40

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Cross-recessed Socket No.	Tensile Breaking Load (N)^＊1	Torsional Torque (N・m)^＊1	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SPE-M1.7-4-P	M1.7	0.35	4	2.5	0.5	0	81	0.038	20	0.0088	13.06	CAD	Cart
SPE-M1.7-4-P(100)	M1.7	0.35	4	2.5	0.5	0	81	0.038	100	0.0088	46.20	CAD	Cart
SPE-M2-4-P	M2	0.4	4	3.5	1.3	1	165	0.071	20	0.023	13.06	CAD	Cart
SPE-M2-5-P	M2	0.4	5	3.5	1.3	1	165	0.071	20	0.027	13.06	CAD	Cart
SPE-M2-6-P	M2	0.4	6	3.5	1.3	1	165	0.071	20	0.03	13.06	CAD	Cart
SPE-M2-8-P	M2	0.4	8	3.5	1.3	1	165	0.071	20	0.035	13.06	CAD	Cart
SPE-M2-10-P	M2	0.4	10	3.5	1.3	1	165	0.071	20	0.042	13.06	CAD	Cart
SPE-M2-12-P	M2	0.4	12	3.5	1.3	1	165	0.071	20	0.048	19.73	CAD	Cart
SPE-M2-4-P(100)	M2	0.4	4	3.5	1.3	1	165	0.071	100	0.023	46.20	CAD	Cart
SPE-M2-5-P(100)	M2	0.4	5	3.5	1.3	1	165	0.071	100	0.027	46.20	CAD	Cart
SPE-M2-6-P(100)	M2	0.4	6	3.5	1.3	1	165	0.071	100	0.03	46.20	CAD	Cart
SPE-M2-8-P(100)	M2	0.4	8	3.5	1.3	1	165	0.071	100	0.035	46.20	CAD	Cart
SPE-M2-10-P(100)	M2	0.4	10	3.5	1.3	1	165	0.071	100	0.042	46.20	CAD	Cart
SPE-M2-12-P(100)	M2	0.4	12	3.5	1.3	1	165	0.071	100	0.048	67.20	CAD	Cart
SPE-M2.6-4-P	M2.6	0.45	4	4.5	1.7	1	291	0.15	20	0.044	13.06	CAD	Cart
SPE-M2.6-5-P	M2.6	0.45	5	4.5	1.7	1	291	0.15	20	0.048	13.06	CAD	Cart
SPE-M2.6-6-P	M2.6	0.45	6	4.5	1.7	1	291	0.15	20	0.055	13.06	CAD	Cart
SPE-M2.6-8-P	M2.6	0.45	8	4.5	1.7	1	291	0.15	20	0.067	13.06	CAD	Cart
SPE-M2.6-10-P	M2.6	0.45	10	4.5	1.7	1	291	0.15	20	0.077	17.36	CAD	Cart
SPE-M2.6-12-P	M2.6	0.45	12	4.5	1.7	1	291	0.15	20	0.087	19.73	CAD	Cart
SPE-M2.6-4-P(100)	M2.6	0.45	4	4.5	1.7	1	291	0.15	100	0.044	46.20	CAD	Cart
SPE-M2.6-5-P(100)	M2.6	0.45	5	4.5	1.7	1	291	0.15	100	0.048	46.20	CAD	Cart
SPE-M2.6-6-P(100)	M2.6	0.45	6	4.5	1.7	1	291	0.15	100	0.055	46.20	CAD	Cart
SPE-M2.6-8-P(100)	M2.6	0.45	8	4.5	1.7	1	291	0.15	100	0.067	46.20	CAD	Cart
SPE-M2.6-10-P(100)	M2.6	0.45	10	4.5	1.7	1	291	0.15	100	0.077	61.60	CAD	Cart
SPE-M2.6-12-P(100)	M2.6	0.45	12	4.5	1.7	1	291	0.15	100	0.087	67.20	CAD	Cart
SPE-M3-4-P	M3	0.5	4	5.5	2	2	405	0.21	20	0.066	14.29	CAD	Cart
SPE-M3-5-P	M3	0.5	5	5.5	2	2	405	0.21	20	0.082	14.29	CAD	Cart
SPE-M3-6-P	M3	0.5	6	5.5	2	2	405	0.21	20	0.088	14.29	CAD	Cart
SPE-M3-8-P	M3	0.5	8	5.5	2	2	405	0.21	20	0.1	14.29	CAD	Cart
SPE-M3-10-P	M3	0.5	10	5.5	2	2	405	0.21	20	0.12	14.29	CAD	Cart
SPE-M3-12-P	M3	0.5	12	5.5	2	2	405	0.21	20	0.13	17.36	CAD	Cart
SPE-M3-15-P	M3	0.5	15	5.5	2	2	405	0.21	20	0.15	27.49	CAD	Cart
SPE-M3-16-P	M3	0.5	16	5.5	2	2	405	0.21	20	0.16	30.74	CAD	Cart
SPE-M3-20-P	M3	0.5	20	5.5	2	2	405	0.21	20	0.18	35.77	CAD	Cart
SPE-M3-25-P	M3	0.5	25	5.5	2	2	405	0.21	20	0.22	41.36	CAD	Cart
SPE-M3-50-P	M3	0.5	50	5.5	2	2	405	0.21	20	0.4	211.98	CAD	Cart
SPE-M3-4-P(100)	M3	0.5	4	5.5	2	2	405	0.21	100	0.066	51.80	CAD	Cart
SPE-M3-5-P(100)	M3	0.5	5	5.5	2	2	405	0.21	100	0.082	51.80	CAD	Cart
SPE-M3-6-P(100)	M3	0.5	6	5.5	2	2	405	0.21	100	0.088	51.80	CAD	Cart
SPE-M3-8-P(100)	M3	0.5	8	5.5	2	2	405	0.21	100	0.1	51.80	CAD	Cart
SPE-M3-10-P(100)	M3	0.5	10	5.5	2	2	405	0.21	100	0.12	51.80	CAD	Cart
SPE-M3-12-P(100)	M3	0.5	12	5.5	2	2	405	0.21	100	0.13	61.60	CAD	Cart
SPE-M3-15-P(100)	M3	0.5	15	5.5	2	2	405	0.21	100	0.15	91.00	CAD	Cart
SPE-M3-16-P(100)	M3	0.5	16	5.5	2	2	405	0.21	100	0.16	100.80	CAD	Cart
SPE-M3-20-P(100)	M3	0.5	20	5.5	2	2	405	0.21	100	0.18	114.80	CAD	Cart
SPE-M3-25-P(100)	M3	0.5	25	5.5	2	2	405	0.21	100	0.22	130.20	CAD	Cart
SPE-M3-50-P(100)	M3	0.5	50	5.5	2	2	405	0.21	100	0.4	758.80	CAD	Cart
SPE-M4-5-P	M4	0.7	5	7	2.6	2	738	0.47	20	0.15	19.73	CAD	Cart
SPE-M4-6-P	M4	0.7	6	7	2.6	2	738	0.47	20	0.17	19.73	CAD	Cart
SPE-M4-8-P	M4	0.7	8	7	2.6	2	738	0.47	20	0.2	19.73	CAD	Cart
SPE-M4-10-P	M4	0.7	10	7	2.6	2	738	0.47	20	0.22	19.73	CAD	Cart
SPE-M4-12-P	M4	0.7	12	7	2.6	2	738	0.47	20	0.25	23.94	CAD	Cart
SPE-M4-15-P	M4	0.7	15	7	2.6	2	738	0.47	20	0.29	27.49	CAD	Cart
SPE-M4-16-P	M4	0.7	16	7	2.6	2	738	0.47	20	0.3	27.49	CAD	Cart
SPE-M4-20-P	M4	0.7	20	7	2.6	2	738	0.47	20	0.35	30.74	CAD	Cart
SPE-M4-25-P	M4	0.7	25	7	2.6	2	738	0.47	20	0.42	33.77	CAD	Cart
SPE-M4-30-P	M4	0.7	30	7	2.6	2	738	0.47	20	0.48	39.12	CAD	Cart
SPE-M4-40-P	M4	0.7	40	7	2.6	2	738	0.47	20	0.61	127.81	CAD	Cart
SPE-M4-5-P(100)	M4	0.7	5	7	2.6	2	738	0.47	100	0.15	67.20	CAD	Cart
SPE-M4-6-P(100)	M4	0.7	6	7	2.6	2	738	0.47	100	0.17	71.40	CAD	Cart
SPE-M4-8-P(100)	M4	0.7	8	7	2.6	2	738	0.47	100	0.2	71.40	CAD	Cart
SPE-M4-10-P(100)	M4	0.7	10	7	2.6	2	738	0.47	100	0.22	67.20	CAD	Cart
SPE-M4-12-P(100)	M4	0.7	12	7	2.6	2	738	0.47	100	0.25	79.80	CAD	Cart
SPE-M4-15-P(100)	M4	0.7	15	7	2.6	2	738	0.47	100	0.29	91.00	CAD	Cart
SPE-M4-16-P(100)	M4	0.7	16	7	2.6	2	738	0.47	100	0.3	91.00	CAD	Cart
SPE-M4-20-P(100)	M4	0.7	20	7	2.6	2	738	0.47	100	0.35	100.80	CAD	Cart
SPE-M4-25-P(100)	M4	0.7	25	7	2.6	2	738	0.47	100	0.42	106.40	CAD	Cart
SPE-M4-30-P(100)	M4	0.7	30	7	2.6	2	738	0.47	100	0.48	121.80	CAD	Cart
SPE-M4-40-P(100)	M4	0.7	40	7	2.6	2	738	0.47	100	0.61	481.60	CAD	Cart
SPE-M5-6-P	M5	0.8	6	9	3.3	2	1234	0.96	10	0.33	20.73	CAD	Cart
SPE-M5-8-P	M5	0.8	8	9	3.3	2	1234	0.96	10	0.37	20.73	CAD	Cart
SPE-M5-10-P	M5	0.8	10	9	3.3	2	1234	0.96	10	0.41	20.73	CAD	Cart
SPE-M5-12-P	M5	0.8	12	9	3.3	2	1234	0.96	10	0.45	24.04	CAD	Cart
SPE-M5-15-P	M5	0.8	15	9	3.3	2	1234	0.96	10	0.51	24.04	CAD	Cart
SPE-M5-16-P	M5	0.8	16	9	3.3	2	1234	0.96	10	0.52	24.04	CAD	Cart
SPE-M5-20-P	M5	0.8	20	9	3.3	2	1234	0.96	10	0.6	24.04	CAD	Cart
SPE-M5-25-P	M5	0.8	25	9	3.3	2	1234	0.96	10	0.7	34.30	CAD	Cart
SPE-M5-30-P	M5	0.8	30	9	3.3	2	1234	0.96	10	0.8	48.01	CAD	Cart
SPE-M5-6-P(100)	M5	0.8	6	9	3.3	2	1234	0.96	100	0.33	130.20	CAD	Cart
SPE-M5-8-P(100)	M5	0.8	8	9	3.3	2	1234	0.96	100	0.37	130.20	CAD	Cart
SPE-M5-10-P(100)	M5	0.8	10	9	3.3	2	1234	0.96	100	0.41	130.20	CAD	Cart
SPE-M5-12-P(100)	M5	0.8	12	9	3.3	2	1234	0.96	100	0.45	149.80	CAD	Cart
SPE-M5-15-P(100)	M5	0.8	15	9	3.3	2	1234	0.96	100	0.51	149.80	CAD	Cart
SPE-M5-16-P(100)	M5	0.8	16	9	3.3	2	1234	0.96	100	0.52	149.80	CAD	Cart
SPE-M5-20-P(100)	M5	0.8	20	9	3.3	2	1234	0.96	100	0.6	149.80	CAD	Cart
SPE-M5-25-P(100)	M5	0.8	25	9	3.3	2	1234	0.96	100	0.7	207.20	CAD	Cart
SPE-M5-30-P(100)	M5	0.8	30	9	3.3	2	1234	0.96	100	0.8	285.60	CAD	Cart
SPE-M6-10-P	M6	1	10	10.5	3.9	3	1749	1.64	10	0.65	31.63	CAD	Cart
SPE-M6-12-P	M6	1	12	10.5	3.9	3	1749	1.64	10	0.71	31.63	CAD	Cart
SPE-M6-15-P	M6	1	15	10.5	3.9	3	1749	1.64	10	0.82	34.30	CAD	Cart
SPE-M6-16-P	M6	1	16	10.5	3.9	3	1749	1.64	10	0.83	35.85	CAD	Cart
SPE-M6-20-P	M6	1	20	10.5	3.9	3	1749	1.64	10	0.94	44.30	CAD	Cart
SPE-M6-25-P	M6	1	25	10.5	3.9	3	1749	1.64	10	1.1	54.81	CAD	Cart
SPE-M6-30-P	M6	1	30	10.5	3.9	3	1749	1.64	10	1.2	65.03	CAD	Cart
SPE-M6-10-P(100)	M6	1	10	10.5	3.9	3	1749	1.64	100	0.65	193.20	CAD	Cart
SPE-M6-12-P(100)	M6	1	12	10.5	3.9	3	1749	1.64	100	0.71	193.20	CAD	Cart
SPE-M6-15-P(100)	M6	1	15	10.5	3.9	3	1749	1.64	100	0.82	207.20	CAD	Cart
SPE-M6-16-P(100)	M6	1	16	10.5	3.9	3	1749	1.64	100	0.83	260.40	CAD	Cart
SPE-M6-20-P(100)	M6	1	20	10.5	3.9	3	1749	1.64	100	0.94	264.60	CAD	Cart
SPE-M6-25-P(100)	M6	1	25	10.5	3.9	3	1749	1.64	100	1.1	323.40	CAD	Cart
SPE-M6-30-P(100)	M6	1	30	10.5	3.9	3	1749	1.64	100	1.2	376.60	CAD	Cart
SPE-M8-12-P	M8	1.25	12	14	5.2	3	3261	3.68	5	1.8	48.03	CAD	Cart
SPE-M8-15-P	M8	1.25	15	14	5.2	3	3261	3.68	5	1.6	48.01	CAD	Cart
SPE-M8-16-P	M8	1.25	16	14	5.2	3	3261	3.68	5	1.7	49.88	CAD	Cart
SPE-M8-20-P	M8	1.25	20	14	5.2	3	3261	3.68	5	1.9	51.79	CAD	Cart
SPE-M8-25-P	M8	1.25	25	14	5.2	3	3261	3.68	5	2.2	51.49	CAD	Cart
SPE-M8-30-P	M8	1.25	30	14	5.2	3	3261	3.68	5	2.8	54.80	CAD	Cart
SPE-M8-12-P(100)	M8	1.25	12	14	5.2	3	3261	3.68	100	1.8	557.20	CAD	Cart
SPE-M8-15-P(100)	M8	1.25	15	14	5.2	3	3261	3.68	100	1.6	557.20	CAD	Cart
SPE-M8-16-P(100)	M8	1.25	16	14	5.2	3	3261	3.68	100	1.7	557.20	CAD	Cart
SPE-M8-20-P(100)	M8	1.25	20	14	5.2	3	3261	3.68	100	1.9	557.20	CAD	Cart
SPE-M8-25-P(100)	M8	1.25	25	14	5.2	3	3261	3.68	100	2.2	596.40	CAD	Cart
SPE-M8-30-P(100)	M8	1.25	30	14	5.2	3	3261	3.68	100	2.8	631.40	CAD	Cart

＊1：　Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SPE-P
Main Body	PEEK (Polyether Ether Ketone) (Light Brown)
Heat Resistance Temperature＊1	260℃

＊1：　This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.

Application

FPD production equipment / Semiconductor manufacturing equipment / Printed circuit board etching devices / Metallic surface treatment equipment and facilities / Chemical plants / Transformers / Electrical and electronic equipment / Hot water pumps / Chemical pumps

Characteristics

PEEK Phillips cross recessed pan head machine screws.
PEEK is a thermoplastic super engineering plastic superior in physical and chemical properties.
Excellent chemical resistance. It remains almost unaffected by chemicals other than concentrated sulfuric acid, concentrated nitric acid, and concentrated hydrofluoric acid.
With excellent heat resistance and water resistance, it retains strength at high temperatures.
It features outstanding resistance to wear, shock, and fatigue.
It also has high flame retardance which clears the UL 94 V-0 standard.
For the properties and precautions for use of plastic screws, see “Properties of Plastic Screws.”⇒Plastic Screws

Precautions for Use

Because a cumulative pitch difference is created when PEEK screws are manufactured, use these screws with nuts. If a nut is not used, use a 20 mm or less fit with female thread.

Related Products

PEEK hex nuts SPE-N are available.SPE-N
