Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | Tension Rupture Load (N)＊1 |
Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPV-M3-5-C | M3 | 0.5 | 5 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.15 | 48.65 | CAD | Cart |
| SPV-M3-6-C | M3 | 0.5 | 6 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.16 | 50.53 | CAD | Cart |
| SPV-M3-8-C | M3 | 0.5 | 8 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.18 | 50.53 | CAD | Cart |
| SPV-M3-10-C | M3 | 0.5 | 10 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.2 | 51.39 | CAD | Cart |
| SPV-M3-12-C | M3 | 0.5 | 12 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.22 | 51.39 | CAD | Cart |
| SPV-M3-15-C | M3 | 0.5 | 15 | 5.5 | 3 | 2.5 | 227 | 0.11 | 20 | 0.23 | 52.29 | CAD | Cart |
| SPV-M4-5-C | M4 | 0.7 | 5 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.33 | 51.39 | CAD | Cart |
| SPV-M4-6-C | M4 | 0.7 | 6 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.34 | 52.29 | CAD | Cart |
| SPV-M4-8-C | M4 | 0.7 | 8 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.38 | 52.29 | CAD | Cart |
| SPV-M4-10-C | M4 | 0.7 | 10 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.41 | 53.47 | CAD | Cart |
| SPV-M4-12-C | M4 | 0.7 | 12 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.45 | 53.47 | CAD | Cart |
| SPV-M4-15-C | M4 | 0.7 | 15 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.5 | 54.11 | CAD | Cart |
| SPV-M4-20-C | M4 | 0.7 | 20 | 7 | 4 | 3 | 429 | 0.26 | 20 | 0.61 | 56.67 | CAD | Cart |
| SPV-M5-10-C | M5 | 0.8 | 10 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 0.62 | 54.09 | CAD | Cart |
| SPV-M5-12-C | M5 | 0.8 | 12 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 0.68 | 56.42 | CAD | Cart |
| SPV-M5-15-C | M5 | 0.8 | 15 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 0.79 | 58.08 | CAD | Cart |
| SPV-M5-20-C | M5 | 0.8 | 20 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 0.92 | 61.88 | CAD | Cart |
| SPV-M5-25-C | M5 | 0.8 | 25 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 1.1 | 65.91 | CAD | Cart |
| SPV-M5-30-C | M5 | 0.8 | 30 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 1.3 | 69.44 | CAD | Cart |
| SPV-M5-35-C | M5 | 0.8 | 35 | 8.5 | 5 | 4 | 688 | 0.44 | 20 | 1.5 | 73.79 | CAD | Cart |
| SPV-M6-10-C | M6 | 1 | 10 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.1 | 31.82 | CAD | Cart |
| SPV-M6-12-C | M6 | 1 | 12 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.2 | 33.41 | CAD | Cart |
| SPV-M6-15-C | M6 | 1 | 15 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.3 | 33.98 | CAD | Cart |
| SPV-M6-20-C | M6 | 1 | 20 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.5 | 36.15 | CAD | Cart |
| SPV-M6-25-C | M6 | 1 | 25 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.7 | 38.88 | CAD | Cart |
| SPV-M6-30-C | M6 | 1 | 30 | 10 | 6 | 5 | 960 | 0.81 | 10 | 1.9 | 41.76 | CAD | Cart |
| SPV-M6-35-C | M6 | 1 | 35 | 10 | 6 | 5 | 960 | 0.81 | 10 | 2.3 | 43.90 | CAD | Cart |
| SPV-M6-40-C | M6 | 1 | 40 | 10 | 6 | 5 | 960 | 0.81 | 10 | 2.6 | 45.79 | CAD | Cart |
| SPV-M8-10-C | M8 | 1.25 | 10 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 2.4 | 66.19 | CAD | Cart |
| SPV-M8-12-C | M8 | 1.25 | 12 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 2.5 | 66.19 | CAD | Cart |
| SPV-M8-15-C | M8 | 1.25 | 15 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 2.8 | 66.19 | CAD | Cart |
| SPV-M8-20-C | M8 | 1.25 | 20 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 3.1 | 66.19 | CAD | Cart |
| SPV-M8-25-C | M8 | 1.25 | 25 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 3.5 | 66.19 | CAD | Cart |
| SPV-M8-30-C | M8 | 1.25 | 30 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 3.9 | 77.41 | CAD | Cart |
| SPV-M8-35-C | M8 | 1.25 | 35 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 4.4 | 77.41 | CAD | Cart |
| SPV-M8-40-C | M8 | 1.25 | 40 | 13 | 8 | 6 | 1803 | 1.56 | 10 | 4.8 | 77.41 | CAD | Cart |
| SPV-M10-15-C | M10 | 1.5 | 15 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 4.7 | 66.19 | CAD | Cart |
| SPV-M10-20-C | M10 | 1.5 | 20 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 5.3 | 72.05 | CAD | Cart |
| SPV-M10-25-C | M10 | 1.5 | 25 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 5.9 | 78.17 | CAD | Cart |
| SPV-M10-30-C | M10 | 1.5 | 30 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 6.4 | 84.48 | CAD | Cart |
| SPV-M10-35-C | M10 | 1.5 | 35 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 7 | 90.09 | CAD | Cart |
| SPV-M10-40-C | M10 | 1.5 | 40 | 16 | 10 | 8 | 2824 | 3.16 | 10 | 7.6 | 107.76 | CAD | Cart |
| SPV-M12-20-C | M12 | 1.75 | 20 | 18 | 12 | 10 | 4249 | 5.73 | 10 | 7.4 | 96.26 | CAD | Cart |
| SPV-M12-25-C | M12 | 1.75 | 25 | 18 | 12 | 10 | 4249 | 5.73 | 10 | 8.2 | 101.84 | CAD | Cart |
| SPV-M12-30-C | M12 | 1.75 | 30 | 18 | 12 | 10 | 4249 | 5.73 | 10 | 9.1 | 107.21 | CAD | Cart |
| SPV-M12-35-C | M12 | 1.75 | 35 | 18 | 12 | 10 | 4249 | 5.73 | 10 | 9.9 | 126.22 | CAD | Cart |
| SPV-M12-40-C | M12 | 1.75 | 40 | 18 | 12 | 10 | 4249 | 5.73 | 10 | 11 | 137.88 | CAD | Cart |
＊1： Values in chart are for reference only. They are not guaranteed values.The recommendation torque is 50% of the torsional torque.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereRelated Services
Material/Finish
| SPV-C | |
|---|---|

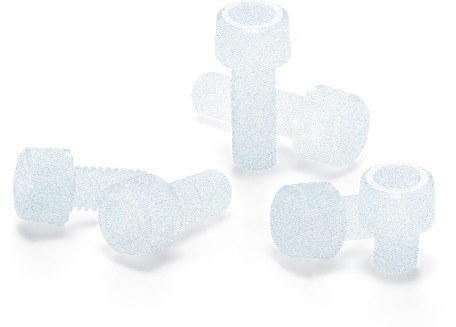

| Main body | PVDF (Polyvinylidene Fluoride) (Milky White) |
| Heat resistance temperature＊1 | 150℃ |
＊1： This is the value for the plastic material. The maximum operating temperature of the product changes with performance conditions such as tightening torque.
Application
FPD production equipment / Semiconductor devices / Printedcircuit board etching devices / Metallic surface treatment
equipment and facilities / Chemical plants / Food industry
machines
Characteristics
- PVDF has excellent chemical resistance against strong acids and organic solvents as well as halogen compounds such as hydrogen sulfide and bromine.
- It can be used in atmospheres in which metal and PVC (polyvinyl chloride）cannot be used.
-
Max. Operating Temperature＊1 (min./max.）：
-40/150°C - Its tensile strength equals or exceeds that of PVC, and its impact strength is 3 times that of PVC.
- It is self-extinguishing and has excellent incombustibility.
- The properties and precautions of plastic screws⇒Plastic Screws
