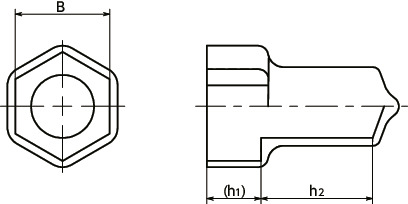

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Nominal of Applicable Screw and Hex Nut＊1 (Applicable Width Across Flat) |
B＊1 | h1 | h2 | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal | Applicable Width Across Flat | |||||||||
| SCBN-6 | M6 | 10 | 9.5 | 5.5 | 9.5 | 10 | 1 | 10.15 | CAD | Cart |
| SCBN-8 | M8 | 13 | 12 | 6.4 | 10.4 | 10 | 1.4 | 10.15 | CAD | Cart |
| SCBN-10 | M10 | 17 | 16 | 8.7 | 19.2 | 10 | 3.1 | 10.15 | CAD | Cart |
| SCBN-12 | M12 | 19 | 18 | 10.3 | 20.7 | 10 | 4.1 | 12.17 | CAD | Cart |
| SCBN-16 | M16 | 24 | 24 | 16 | 21 | 10 | 6.7 | 18.26 | CAD | Cart |
| SCBN-20 | M20 | 30 | 30 | 18 | 25 | 10 | 9.1 | 26.35 | CAD | Cart |
＊1： Be sure to check the width across flat dimension of the hex nuts in use. This product conforms to the JIS standard series (JIS B 1002 Appendix 2).
As the product is molded, its dimensions may vary.
Material/Finish
| SCBN | |
|---|---|
| Main Body | PVC (Polyvinyl Chloride) (Gray) |
Application

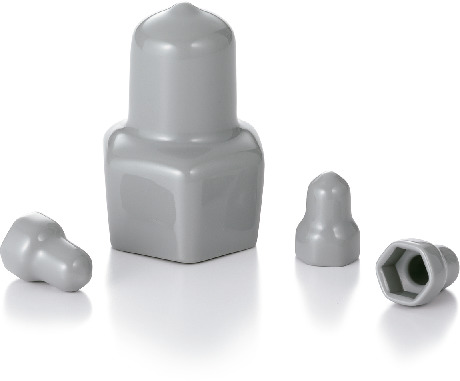

Screw tip/hex nut protection / Dust countermeasureCharacteristics
- Covering screw tips and hex nuts, they enhance device and equipment safety.
- Also suitable as a dust countermeasure for screws and hex nut fastening parts.
Usage Example
