SQWS-5

Name: SQWS-5
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Spherical Washers

Safety Precautions

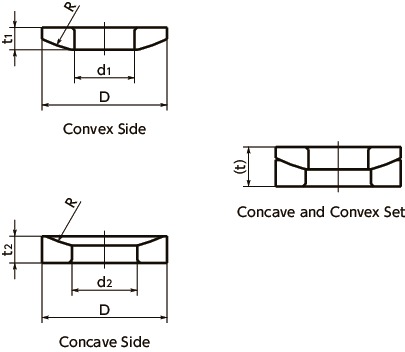

Dimension Drawing

Unit : mm

Part Number	Nominal	D	d1	d2	t1	t2	t	R	θ (°)	Mass (g)	Price (USD)	CAD Download	QTY (Piece)
SQWS-5	5	11.5	5.5	6	2.1	2.5	3.7	12.5	2	2.3	11.07	CAD	Cart

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Cleanroom Wash & Packaging Service(Screw)

Material/Finish

	SQWS
Main Body	SUS304

Application

Absorption of misalignment of bolt and bearing surface

Characteristics

Use a concave and convex set.
Washers can absorb a tilt of the bolt and bearing surface to a maximum of 2°or 3°.

Usage Example

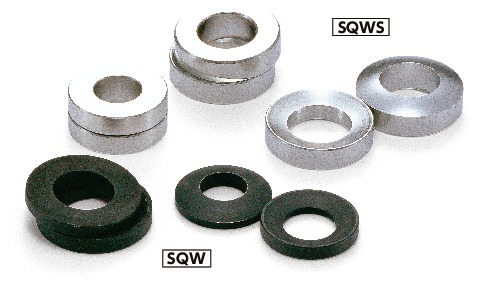

SQWSSpherical Washers
