Socket Button Head Cap Screws with Flange

Space

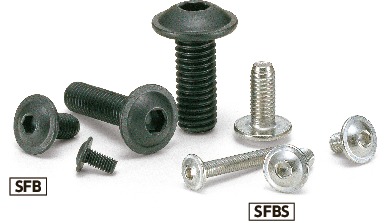

SFBSocket Button Head Cap Screws with Flange

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M3; M4; M5; M6; M8

L: All; 6; 8; 10; 12; 16; 20; 25

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	D₂	L₁	t1	B	t	Lb	Max. Torque(N・m)	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SFB-M3-6	M3	0.5	6	7	5.2	1.65	0.6	2	1.05	1	1	50	0.52	15.15	CAD	Cart
SFB-M3-8	M3	0.5	8	7	5.2	1.65	0.6	2	1.05	1	1	50	0.61	15.15	CAD	Cart
SFB-M3-10	M3	0.5	10	7	5.2	1.65	0.6	2	1.05	1	1	50	0.69	15.15	CAD	Cart
SFB-M3-12	M3	0.5	12	7	5.2	1.65	0.6	2	1.05	1	1	50	0.78	15.15	CAD	Cart
SFB-M4-6	M4	0.7	6	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	1	15.71	CAD	Cart
SFB-M4-8	M4	0.7	8	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	1.2	15.71	CAD	Cart
SFB-M4-10	M4	0.7	10	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	1.3	15.71	CAD	Cart
SFB-M4-12	M4	0.7	12	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	1.5	17.77	CAD	Cart
SFB-M4-16	M4	0.7	16	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	1.8	19.21	CAD	Cart
SFB-M4-20	M4	0.7	20	9.2	6.8	2.2	0.7	2.5	1.3	1.4	2	50	2	19.21	CAD	Cart
SFB-M5-8	M5	0.8	8	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	2	8.19	CAD	Cart
SFB-M5-10	M5	0.8	10	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	2.3	7.18	CAD	Cart
SFB-M5-12	M5	0.8	12	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	2.5	7.18	CAD	Cart
SFB-M5-16	M5	0.8	16	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	3	8.74	CAD	Cart
SFB-M5-20	M5	0.8	20	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	3.5	8.74	CAD	Cart
SFB-M5-25	M5	0.8	25	11.4	8.5	2.75	0.9	3	1.6	1.6	4	20	4	9.26	CAD	Cart
SFB-M6-8	M6	1	8	13.6	10.1	3.3	1	4	2.1	2	8	20	3	8.44	CAD	Cart
SFB-M6-10	M6	1	10	13.6	10.1	3.3	1	4	2.1	2	8	20	3.4	8.44	CAD	Cart
SFB-M6-12	M6	1	12	13.6	10.1	3.3	1	4	2.1	2	8	20	3.8	8.97	CAD	Cart
SFB-M6-16	M6	1	16	13.6	10.1	3.3	1	4	2.1	2	8	20	4.5	9.26	CAD	Cart
SFB-M6-20	M6	1	20	13.6	10.1	3.3	1	4	2.1	2	8	20	5.2	9.26	CAD	Cart
SFB-M6-25	M6	1	25	13.6	10.1	3.3	1	4	2.1	2	8	20	5.9	10.29	CAD	Cart
SFB-M8-10	M8	1.25	10	17	12.6	4.4	1.4	5	2.6	2.5	12	20	6.8	11.93	CAD	Cart
SFB-M8-12	M8	1.25	12	17	12.6	4.4	1.4	5	2.6	2.5	12	20	7.4	12.42	CAD	Cart
SFB-M8-16	M8	1.25	16	17	12.6	4.4	1.4	5	2.6	2.5	12	20	8.6	13.76	CAD	Cart
SFB-M8-20	M8	1.25	20	17	12.6	4.4	1.4	5	2.6	2.5	12	20	9.8	13.92	CAD	Cart
SFB-M8-25	M8	1.25	25	17	12.6	4.4	1.4	5	2.6	2.5	12	20	11	15.54	CAD	Cart

＊1：　SFB Steel - Ferrosoferric Oxide Coating is the standard product.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SFB
Main Body	SCM435 Ferrosoferric Oxide Coating（Black）
Strength Class	10.9

Application

Reducing the size of equipment and devices

Characteristics

Socket button head cap screws with wide bearing surface and are resistant to looseness.
Intended for reducing the size of devices and applications with limited overhead space.

Product List

SFB-M3

SFB-M4

SFB-M5

SFB-M6

SFB-M8

Click here to see Socket Head Cap Screws

Part Name

Flanged Hex Socket Head Bolts

Part Number

SFS

Feature

Flanged

Part Name

Flanged Hex Socket Head Bolts

Part Number

SFSS

Feature

Flanged

Part Name

Socket Button Head Cap Screw with Flange (Electroless Nickel Plating)

Part Number

SFB-EL

Feature

With Flange
Small Space
