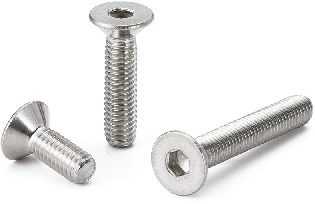

Name: SNFCS
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

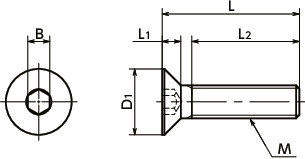

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M3; M4; M5; M6; M8

L: All; 5; 6; 8; 10; 12; 16; 20; 25; 30; 35; 40; 45; 50

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	L₂	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNFCS-M3-5	M3	0.5	5	6.72	1.86	2	Full Thread	20	0.34	11.66	CAD	Cart
SNFCS-M3-6	M3	0.5	6	6.72	1.86	2	Full Thread	20	0.38	11.66	CAD	Cart
SNFCS-M3-8	M3	0.5	8	6.72	1.86	2	Full Thread	20	0.46	11.66	CAD	Cart
SNFCS-M3-10	M3	0.5	10	6.72	1.86	2	Full Thread	20	0.54	11.66	CAD	Cart
SNFCS-M3-12	M3	0.5	12	6.72	1.86	2	Full Thread	20	0.62	11.66	CAD	Cart
SNFCS-M3-16	M3	0.5	16	6.72	1.86	2	Full Thread	20	0.78	11.66	CAD	Cart
SNFCS-M3-20	M3	0.5	20	6.72	1.86	2	Full Thread	20	0.94	12.75	CAD	Cart
SNFCS-M4-8	M4	0.7	8	8.96	2.48	2.5	Full Thread	20	0.99	11.66	CAD	Cart
SNFCS-M4-10	M4	0.7	10	8.96	2.48	2.5	Full Thread	20	1.1	11.66	CAD	Cart
SNFCS-M4-12	M4	0.7	12	8.96	2.48	2.5	Full Thread	20	1.3	11.66	CAD	Cart
SNFCS-M4-16	M4	0.7	16	8.96	2.48	2.5	Full Thread	20	1.5	11.66	CAD	Cart
SNFCS-M4-20	M4	0.7	20	8.96	2.48	2.5	Full Thread	20	1.8	13.29	CAD	Cart
SNFCS-M4-25	M4	0.7	25	8.96	2.48	2.5	Full Thread	20	2.2	13.56	CAD	Cart
SNFCS-M4-30	M4	0.7	30	8.96	2.48	2.5	20	20	2.5	13.56	CAD	Cart
SNFCS-M5-8	M5	0.8	8	11.2	3.1	3	Full Thread	20	1.8	11.66	CAD	Cart
SNFCS-M5-10	M5	0.8	10	11.2	3.1	3	Full Thread	20	2	11.66	CAD	Cart
SNFCS-M5-12	M5	0.8	12	11.2	3.1	3	Full Thread	20	2.2	11.66	CAD	Cart
SNFCS-M5-16	M5	0.8	16	11.2	3.1	3	Full Thread	20	2.7	11.66	CAD	Cart
SNFCS-M5-20	M5	0.8	20	11.2	3.1	3	Full Thread	20	3.1	13.56	CAD	Cart
SNFCS-M5-25	M5	0.8	25	11.2	3.1	3	Full Thread	20	3.7	14.11	CAD	Cart
SNFCS-M5-30	M5	0.8	30	11.2	3.1	3	Full Thread	20	4.3	14.11	CAD	Cart
SNFCS-M5-35	M5	0.8	35	11.2	3.1	3	22	20	4.8	14.11	CAD	Cart
SNFCS-M6-10	M6	1	10	13.44	3.72	4	Full Thread	20	3.2	11.66	CAD	Cart
SNFCS-M6-12	M6	1	12	13.44	3.72	4	Full Thread	20	3.5	11.66	CAD	Cart
SNFCS-M6-16	M6	1	16	13.44	3.72	4	Full Thread	20	4.1	11.66	CAD	Cart
SNFCS-M6-20	M6	1	20	13.44	3.72	4	Full Thread	20	4.8	13.56	CAD	Cart
SNFCS-M6-25	M6	1	25	13.44	3.72	4	Full Thread	20	5.5	14.65	CAD	Cart
SNFCS-M6-30	M6	1	30	13.44	3.72	4	Full Thread	20	6.3	17.36	CAD	Cart
SNFCS-M6-35	M6	1	35	13.44	3.72	4	Full Thread	20	7.1	19.80	CAD	Cart
SNFCS-M6-40	M6	1	40	13.44	3.72	4	Full Thread	20	7.9	21.42	CAD	Cart
SNFCS-M8-12	M8	1.25	12	17.92	4.96	5	Full Thread	10	7.2	11.66	CAD	Cart
SNFCS-M8-16	M8	1.25	16	17.92	4.96	5	Full Thread	10	8.3	11.66	CAD	Cart
SNFCS-M8-20	M8	1.25	20	17.92	4.96	5	Full Thread	10	9.5	13.43	CAD	Cart
SNFCS-M8-25	M8	1.25	25	17.92	4.96	5	Full Thread	10	11	14.65	CAD	Cart
SNFCS-M8-30	M8	1.25	30	17.92	4.96	5	Full Thread	10	12	17.36	CAD	Cart
SNFCS-M8-35	M8	1.25	35	17.92	4.96	5	Full Thread	10	14	19.80	CAD	Cart
SNFCS-M8-40	M8	1.25	40	17.92	4.96	5	Full Thread	10	15	21.42	CAD	Cart
SNFCS-M8-45	M8	1.25	45	17.92	4.96	5	Full Thread	10	17	23.05	CAD	Cart
SNFCS-M8-50	M8	1.25	50	17.92	4.96	5	Full Thread	10	18	23.18	CAD	Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SNFCS
Main Body	Stainless Steel (A2)
Strength Class	A2-50 or more

Characteristics

Hex socket countersunk head screws conforming to JIS B 1194.
