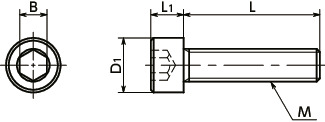

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SNS-M3-4 | M3 | 0.5 | 4 | 5.5 | 3 | 2.5 | 50 | 0.65 | 18.99 | CAD | Cart |
| SNS-M3-5 | M3 | 0.5 | 5 | 5.5 | 3 | 2.5 | 50 | 0.69 | 7.46 | CAD | Cart |
| SNS-M3-6 | M3 | 0.5 | 6 | 5.5 | 3 | 2.5 | 50 | 0.73 | 6.11 | CAD | Cart |
| SNS-M3-8 | M3 | 0.5 | 8 | 5.5 | 3 | 2.5 | 50 | 0.8 | 6.11 | CAD | Cart |
| SNS-M3-10 | M3 | 0.5 | 10 | 5.5 | 3 | 2.5 | 50 | 0.88 | 6.11 | CAD | Cart |
| SNS-M3-12 | M3 | 0.5 | 12 | 5.5 | 3 | 2.5 | 50 | 0.96 | 6.11 | CAD | Cart |
| SNS-M3-16 | M3 | 0.5 | 16 | 5.5 | 3 | 2.5 | 50 | 1.2 | 6.11 | CAD | Cart |
| SNS-M3-20 | M3 | 0.5 | 20 | 5.5 | 3 | 2.5 | 50 | 1.3 | 6.78 | CAD | Cart |
| SNS-M3-25 | M3 | 0.5 | 25 | 5.5 | 3 | 2.5 | 50 | 1.5 | 18.99 | CAD | Cart |
Related Services
Material/Finish
| SNS-J | |
|---|---|
| Main Body | SCM435 Ferrosoferric Oxide Film (Black) |
| Strength Class | 12.9 |

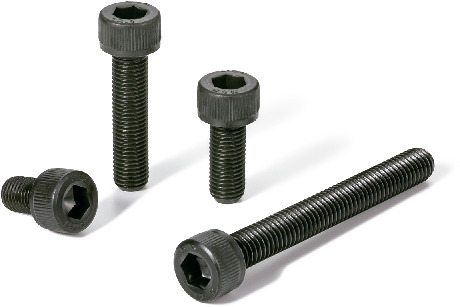

Characteristics
- Conforms to JIS B 1176, ISO 4762, and DIN 912. ⇒Technical Information：JIS B 1176、ISO 4762
- Strength class is 12.9. High strength.
- M3 - M16. Selection from abundant size variations is available to suit the device or equipment.
