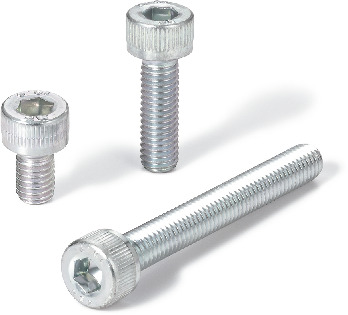

Socket Head Cap Screws

SNS-TZB

RoHS Compliant

SNS-TZBSocket Head Cap Screws

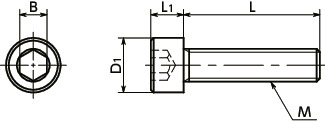

Dimension Drawing

SNS-TZBSocket Head Cap Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
M16
L
All
5
6
8
10
12
16
20
25
30
35
40
45
50
60
70
80

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 B Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNS-M3-5-TZB M3 0.5 5 5.5 3 2.5 20 0.72 7.60 CAD Cart
SNS-M3-6-TZB M3 0.5 6 5.5 3 2.5 20 0.76 7.60 CAD Cart
SNS-M3-8-TZB M3 0.5 8 5.5 3 2.5 20 0.84 7.60 CAD Cart
SNS-M3-10-TZB M3 0.5 10 5.5 3 2.5 20 0.92 7.60 CAD Cart
SNS-M3-12-TZB M3 0.5 12 5.5 3 2.5 20 0.99 7.60 CAD Cart
SNS-M3-16-TZB M3 0.5 16 5.5 3 2.5 20 1.2 7.60 CAD Cart
SNS-M3-20-TZB M3 0.5 20 5.5 3 2.5 20 1.4 7.60 CAD Cart
SNS-M3-25-TZB M3 0.5 25 5.5 3 2.5 20 1.5 11.12 CAD Cart
SNS-M4-5-TZB M4 0.7 5 7 4 3 20 1.6 7.87 CAD Cart
SNS-M4-6-TZB M4 0.7 6 7 4 3 20 1.7 7.87 CAD Cart
SNS-M4-8-TZB M4 0.7 8 7 4 3 20 1.8 7.87 CAD Cart
SNS-M4-10-TZB M4 0.7 10 7 4 3 20 1.9 7.87 CAD Cart
SNS-M4-12-TZB M4 0.7 12 7 4 3 20 2.1 8.14 CAD Cart
SNS-M4-16-TZB M4 0.7 16 7 4 3 20 2.3 8.14 CAD Cart
SNS-M4-20-TZB M4 0.7 20 7 4 3 20 2.6 8.14 CAD Cart
SNS-M4-25-TZB M4 0.7 25 7 4 3 20 3 8.14 CAD Cart
SNS-M4-30-TZB M4 0.7 30 7 4 3 20 3.3 13.02 CAD Cart
SNS-M4-35-TZB M4 0.7 35 7 4 3 20 3.6 14.92 CAD Cart
SNS-M5-6-TZB M5 0.8 6 8.5 5 4 20 2.8 8.14 CAD Cart
SNS-M5-8-TZB M5 0.8 8 8.5 5 4 20 3 8.14 CAD Cart
SNS-M5-10-TZB M5 0.8 10 8.5 5 4 20 3.2 8.14 CAD Cart
SNS-M5-12-TZB M5 0.8 12 8.5 5 4 20 3.4 8.14 CAD Cart
SNS-M5-16-TZB M5 0.8 16 8.5 5 4 20 3.9 8.14 CAD Cart
SNS-M5-20-TZB M5 0.8 20 8.5 5 4 20 4.3 8.14 CAD Cart
SNS-M5-25-TZB M5 0.8 25 8.5 5 4 20 4.9 8.14 CAD Cart
SNS-M5-30-TZB M5 0.8 30 8.5 5 4 20 5.4 8.14 CAD Cart
SNS-M5-35-TZB M5 0.8 35 8.5 5 4 20 6 18.44 CAD Cart
SNS-M5-40-TZB M5 0.8 40 8.5 5 4 20 6.5 23.59 CAD Cart
SNS-M6-8-TZB M6 1 8 10 6 5 20 4.9 8.69 CAD Cart
SNS-M6-10-TZB M6 1 10 10 6 5 20 5.2 8.14 CAD Cart
SNS-M6-12-TZB M6 1 12 10 6 5 20 5.5 8.14 CAD Cart
SNS-M6-16-TZB M6 1 16 10 6 5 20 6.1 8.14 CAD Cart
SNS-M6-20-TZB M6 1 20 10 6 5 20 6.7 8.69 CAD Cart
SNS-M6-25-TZB M6 1 25 10 6 5 20 7.5 8.69 CAD Cart
SNS-M6-30-TZB M6 1 30 10 6 5 20 8.3 8.69 CAD Cart
SNS-M6-35-TZB M6 1 35 10 6 5 20 9.1 18.99 CAD Cart
SNS-M6-40-TZB M6 1 40 10 6 5 20 9.9 18.44 CAD Cart
SNS-M6-45-TZB M6 1 45 10 6 5 20 11 30.90 CAD Cart
SNS-M6-50-TZB M6 1 50 10 6 5 20 12 33.62 CAD Cart
SNS-M8-10-TZB M8 1.25 10 13 8 6 20 12 11.40 CAD Cart
SNS-M8-12-TZB M8 1.25 12 13 8 6 20 12 11.40 CAD Cart
SNS-M8-16-TZB M8 1.25 16 13 8 6 20 13 11.40 CAD Cart
SNS-M8-20-TZB M8 1.25 20 13 8 6 20 14 11.40 CAD Cart
SNS-M8-25-TZB M8 1.25 25 13 8 6 20 16 11.40 CAD Cart
SNS-M8-30-TZB M8 1.25 30 13 8 6 20 17 12.48 CAD Cart
SNS-M8-35-TZB M8 1.25 35 13 8 6 20 19 13.84 CAD Cart
SNS-M8-40-TZB M8 1.25 40 13 8 6 20 20 40.40 CAD Cart
SNS-M8-45-TZB M8 1.25 45 13 8 6 20 22 43.38 CAD Cart
SNS-M8-50-TZB M8 1.25 50 13 8 6 20 23 46.63 CAD Cart
SNS-M8-60-TZB M8 1.25 60 13 8 6 20 26 58.83 CAD Cart
SNS-M10-16-TZB M10 1.5 16 16 10 8 5 23 5.83 CAD Cart
SNS-M10-20-TZB M10 1.5 20 16 10 8 5 24 5.83 CAD Cart
SNS-M10-25-TZB M10 1.5 25 16 10 8 5 27 5.83 CAD Cart
SNS-M10-30-TZB M10 1.5 30 16 10 8 5 29 6.25 CAD Cart
SNS-M10-35-TZB M10 1.5 35 16 10 8 5 31 6.78 CAD Cart
SNS-M10-40-TZB M10 1.5 40 16 10 8 5 33 7.33 CAD Cart
SNS-M10-45-TZB M10 1.5 45 16 10 8 5 36 17.63 CAD Cart
SNS-M10-50-TZB M10 1.5 50 16 10 8 5 38 17.63 CAD Cart
SNS-M10-60-TZB M10 1.5 60 16 10 8 5 42 20.20 CAD Cart
SNS-M12-30-TZB M12 1.75 30 18 12 10 5 41 7.46 CAD Cart
SNS-M12-35-TZB M12 1.75 35 18 12 10 5 45 8.14 CAD Cart
SNS-M12-40-TZB M12 1.75 40 18 12 10 5 48 8.82 CAD Cart
SNS-M12-45-TZB M12 1.75 45 18 12 10 5 51 17.63 CAD Cart
SNS-M12-50-TZB M12 1.75 50 18 12 10 5 54 17.63 CAD Cart
SNS-M12-60-TZB M12 1.75 60 18 12 10 5 61 33.21 CAD Cart
SNS-M16-40-TZB M16 2 40 24 16 14 1 97 3.67 CAD Cart
SNS-M16-45-TZB M16 2 45 24 16 14 1 104 3.94 CAD Cart
SNS-M16-50-TZB M16 2 50 24 16 14 1 110 4.21 CAD Cart
SNS-M16-60-TZB M16 2 60 24 16 14 1 122 4.75 CAD Cart
SNS-M16-70-TZB M16 2 70 24 16 14 1 134 13.56 CAD Cart
SNS-M16-80-TZB M16 2 80 24 16 14 1 146 13.69 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNS-TZB
Main Body SCM435
Trivalent Chromate Treatment
Strength Class 10.9

Characteristics

  • Conforms to JIS B 1176, ISO 4762, and DIN 912.
  • M3 - M16. Selection from abundant size variations is available to suit the device or equipment.
