SNS-M3-5-TZB

Name: SNS-M3-5-TZB
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

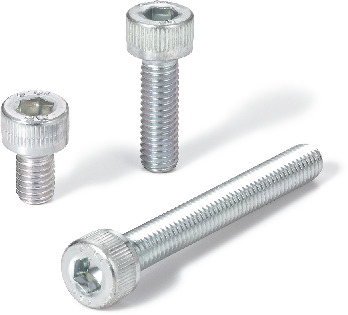

Socket Head Cap Screws

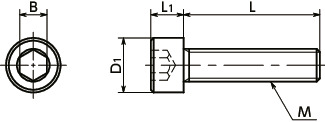

Dimension Drawing

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNS-M3-5-TZB	M3	0.5	5	5.5	3	2.5	20	0.72	7.60	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNS-M3-5-TZB	M3	0.5	5	5.5	3	2.5	20	0.72	7.60	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNS-M3-5-TZB	M3	0.5	5	5.5	3	2.5	20	0.72	7.60	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNS-M3-5-TZB	M3	0.5	5	5.5	3	2.5	20	0.72	7.60	CAD	Cart

Part Number
Amount
Price（＄）

Check other products Cart

Characteristics

Conforms to JIS B 1176, ISO 4762, and DIN 912. ⇒Technical Information：JIS B 1176、ISO 4762
M3 - M16. Selection from abundant size variations is available to suit the device or equipment.

Material/Finish

	SNS-TZB
Main Body	SCM435 Trivalent Chromate Treatment
Strength Class	10.9
