Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SNSS-M5-6 | M5 | 0.8 | 6 | 8.5 | 5 | 4 | 20 | 2.2 | 5.01 | CAD | Cart |
| SNSS-M5-8 | M5 | 0.8 | 8 | 8.5 | 5 | 4 | 20 | 2.5 | 4.72 | CAD | Cart |
| SNSS-M5-10 | M5 | 0.8 | 10 | 8.5 | 5 | 4 | 20 | 2.7 | 3.25 | CAD | Cart |
| SNSS-M5-12 | M5 | 0.8 | 12 | 8.5 | 5 | 4 | 20 | 3 | 3.84 | CAD | Cart |
| SNSS-M5-16 | M5 | 0.8 | 16 | 8.5 | 5 | 4 | 20 | 3.5 | 3.84 | CAD | Cart |
| SNSS-M5-20 | M5 | 0.8 | 20 | 8.5 | 5 | 4 | 20 | 4 | 4.42 | CAD | Cart |
| SNSS-M5-25 | M5 | 0.8 | 25 | 8.5 | 5 | 4 | 20 | 4.8 | 6.48 | CAD | Cart |
Related Services
Material/Finish
| SNSS-J | |
|---|---|
| Main Body | SUSXM7 (Equivalent to SUS304) |
| Strength Class | A2-70 |

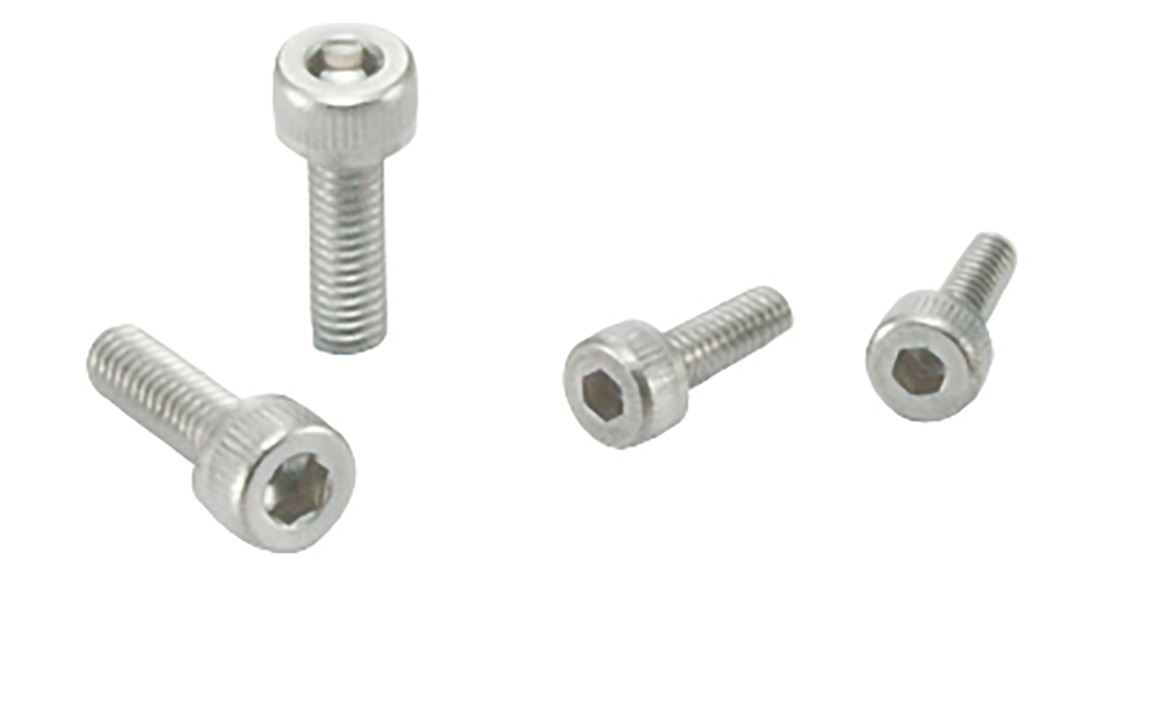

Characteristics
- Conforms to JIS B 1176, ISO 4762, and DIN 912. ⇒Technical Information：JIS B 1176、ISO 4762
- M3 - M16. Selection from abundant size variations is available to suit the device or equipment.
- Captive Processing Service is supported for M10 and M12.
- M3 to M8 captive-processed hex socket head cap screws SSC are available.SSC
