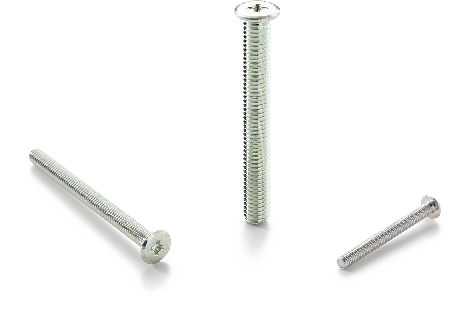

SEC-TZB/Super Ultra Low Profile Cross Recessed Machine Screws

Space
Decoration

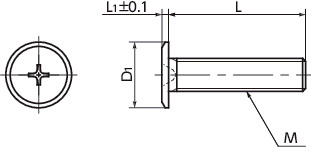

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M2; M2.5; M2.6; M3; M4; M5; M6

L: All; 2; 3; 4; 5; 6; 8; 10; 12; 14; 15; 16; 20; 22; 25; 30; 35; 40; 45; 50

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	Cross-recessed Socket No.	Max. Tightening Torque (N・m)^＊1	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SEC-M2-2-TZB	M2	0.4	2	4	0.5	0	0.14	50	0.07	19.49	CAD	Cart
SEC-M2-3-TZB	M2	0.4	3	4	0.5	0	0.14	50	0.09	19.49	CAD	Cart
SEC-M2-4-TZB	M2	0.4	4	4	0.5	0	0.14	50	0.1	19.49	CAD	Cart
SEC-M2-5-TZB	M2	0.4	5	4	0.5	0	0.14	50	0.12	19.49	CAD	Cart
SEC-M2-6-TZB	M2	0.4	6	4	0.5	0	0.14	50	0.14	19.49	CAD	Cart
SEC-M2-8-TZB	M2	0.4	8	4	0.5	0	0.14	50	0.17	20.27	CAD	Cart
SEC-M2-10-TZB	M2	0.4	10	4	0.5	0	0.14	50	0.21	21.05	CAD	Cart
SEC-M2-12-TZB	M2	0.4	12	4	0.5	0	0.14	50	0.24	21.83	CAD	Cart
SEC-M2.5-3-TZB	M2.5	0.45	3	5	0.6	1	0.38	50	0.14	23.38	CAD	Cart
SEC-M2.5-4-TZB	M2.5	0.45	4	5	0.6	1	0.38	50	0.17	23.38	CAD	Cart
SEC-M2.5-5-TZB	M2.5	0.45	5	5	0.6	1	0.38	50	0.2	23.38	CAD	Cart
SEC-M2.5-6-TZB	M2.5	0.45	6	5	0.6	1	0.38	50	0.23	24.16	CAD	Cart
SEC-M2.5-8-TZB	M2.5	0.45	8	5	0.6	1	0.38	50	0.29	25.72	CAD	Cart
SEC-M2.5-10-TZB	M2.5	0.45	10	5	0.6	1	0.38	50	0.35	26.50	CAD	Cart
SEC-M2.5-12-TZB	M2.5	0.45	12	5	0.6	1	0.38	50	0.41	27.28	CAD	Cart
SEC-M2.6-3-TZB	M2.6	0.45	3	5	0.6	1	0.38	50	0.16	27.28	CAD	Cart
SEC-M2.6-4-TZB	M2.6	0.45	4	5	0.6	1	0.38	50	0.17	23.38	CAD	Cart
SEC-M2.6-5-TZB	M2.6	0.45	5	5	0.6	1	0.38	50	0.2	23.38	CAD	Cart
SEC-M2.6-6-TZB	M2.6	0.45	6	5	0.6	1	0.38	50	0.24	24.16	CAD	Cart
SEC-M2.6-8-TZB	M2.6	0.45	8	5	0.6	1	0.38	50	0.3	25.72	CAD	Cart
SEC-M2.6-10-TZB	M2.6	0.45	10	5	0.6	1	0.38	50	0.37	26.50	CAD	Cart
SEC-M2.6-12-TZB	M2.6	0.45	12	5	0.6	1	0.38	50	0.42	27.28	CAD	Cart
SEC-M2.6-14-TZB	M2.6	0.45	14	5	0.6	1	0.38	50	0.49	29.62	CAD	Cart
SEC-M3-3-TZB	M3	0.5	3	6	0.8	1	0.42	50	0.3	10.14	CAD	Cart
SEC-M3-4-TZB	M3	0.5	4	6	0.8	1	0.42	50	0.3	9.36	CAD	Cart
SEC-M3-5-TZB	M3	0.5	5	6	0.8	1	0.42	50	0.34	8.58	CAD	Cart
SEC-M3-6-TZB	M3	0.5	6	6	0.8	1	0.42	50	0.38	7.80	CAD	Cart
SEC-M3-8-TZB	M3	0.5	8	6	0.8	1	0.42	50	0.42	8.58	CAD	Cart
SEC-M3-10-TZB	M3	0.5	10	6	0.8	1	0.42	50	0.46	8.58	CAD	Cart
SEC-M3-12-TZB	M3	0.5	12	6	0.8	1	0.42	50	0.52	9.36	CAD	Cart
SEC-M3-14-TZB	M3	0.5	14	6	0.8	1	0.42	50	0.63	11.69	CAD	Cart
SEC-M3-15-TZB	M3	0.5	15	6	0.8	1	0.42	50	0.63	11.69	CAD	Cart
SEC-M3-16-TZB	M3	0.5	16	6	0.8	1	0.42	50	0.63	11.69	CAD	Cart
SEC-M3-20-TZB	M3	0.5	20	6	0.8	1	0.42	50	0.75	13.25	CAD	Cart
SEC-M3-22-TZB	M3	0.5	22	6	0.8	1	0.42	50	0.81	15.59	CAD	Cart
SEC-M3-25-TZB	M3	0.5	25	6	0.8	1	0.42	50	0.89	15.59	CAD	Cart
SEC-M3-30-TZB	M3	0.5	30	6	0.8	1	0.42	50	1	17.15	CAD	Cart
SEC-M4-4-TZB	M4	0.7	4	8	0.9	2	1.19	50	0.33	14.03	CAD	Cart
SEC-M4-5-TZB	M4	0.7	5	8	0.9	2	1.19	50	0.4	13.25	CAD	Cart
SEC-M4-6-TZB	M4	0.7	6	8	0.9	2	1.19	50	0.49	11.69	CAD	Cart
SEC-M4-8-TZB	M4	0.7	8	8	0.9	2	1.19	50	0.61	12.47	CAD	Cart
SEC-M4-10-TZB	M4	0.7	10	8	0.9	2	1.19	50	0.75	14.03	CAD	Cart
SEC-M4-12-TZB	M4	0.7	12	8	0.9	2	1.19	50	0.9	14.81	CAD	Cart
SEC-M4-14-TZB	M4	0.7	14	8	0.9	2	1.19	50	1.2	16.37	CAD	Cart
SEC-M4-15-TZB	M4	0.7	15	8	0.9	2	1.19	50	1.2	16.37	CAD	Cart
SEC-M4-16-TZB	M4	0.7	16	8	0.9	2	1.19	50	1.2	16.37	CAD	Cart
SEC-M4-20-TZB	M4	0.7	20	8	0.9	2	1.19	50	1.4	21.05	CAD	Cart
SEC-M4-22-TZB	M4	0.7	22	8	0.9	2	1.19	50	1.5	26.50	CAD	Cart
SEC-M4-25-TZB	M4	0.7	25	8	0.9	2	1.19	50	1.7	26.50	CAD	Cart
SEC-M4-30-TZB	M4	0.7	30	8	0.9	2	1.19	50	1.9	30.40	CAD	Cart
SEC-M4-35-TZB	M4	0.7	35	8	0.9	2	1.19	50	2.2	34.29	CAD	Cart
SEC-M4-40-TZB	M4	0.7	40	8	0.9	2	1.19	50	2.4	38.19	CAD	Cart
SEC-M4-45-TZB	M4	0.7	45	8	0.9	2	1.19	50	2.7	42.09	CAD	Cart
SEC-M4-50-TZB	M4	0.7	50	8	0.9	2	1.19	50	2.9	46.76	CAD	Cart
SEC-M5-5-TZB	M5	0.8	5	9	1	2	1.4	50	1.4	42.09	CAD	Cart
SEC-M5-6-TZB	M5	0.8	6	9	1	2	1.4	50	1.4	38.97	CAD	Cart
SEC-M5-8-TZB	M5	0.8	8	9	1	2	1.4	50	1.5	35.07	CAD	Cart
SEC-M5-10-TZB	M5	0.8	10	9	1	2	1.4	50	1.6	35.07	CAD	Cart
SEC-M5-12-TZB	M5	0.8	12	9	1	2	1.4	50	1.8	37.41	CAD	Cart
SEC-M5-14-TZB	M5	0.8	14	9	1	2	1.4	50	2.1	42.09	CAD	Cart
SEC-M5-15-TZB	M5	0.8	15	9	1	2	1.4	50	2.1	42.09	CAD	Cart
SEC-M5-16-TZB	M5	0.8	16	9	1	2	1.4	50	2.1	42.09	CAD	Cart
SEC-M5-20-TZB	M5	0.8	20	9	1	2	1.4	50	2.4	45.20	CAD	Cart
SEC-M5-22-TZB	M5	0.8	22	9	1	2	1.4	50	2.6	53.00	CAD	Cart
SEC-M5-25-TZB	M5	0.8	25	9	1	2	1.4	50	2.8	53.00	CAD	Cart
SEC-M5-30-TZB	M5	0.8	30	9	1	2	1.4	50	3.2	62.35	CAD	Cart
SEC-M5-35-TZB	M5	0.8	35	9	1	2	1.4	50	3.7	65.47	CAD	Cart
SEC-M5-40-TZB	M5	0.8	40	9	1	2	1.4	50	4.1	71.70	CAD	Cart
SEC-M5-45-TZB	M5	0.8	45	9	1	2	1.4	50	4.5	79.49	CAD	Cart
SEC-M5-50-TZB	M5	0.8	50	9	1	2	1.4	50	4.9	84.95	CAD	Cart
SEC-M6-8-TZB	M6	1	8	10	1.2	2	2.4	20	2.5	22.14	CAD	Cart
SEC-M6-10-TZB	M6	1	10	10	1.2	2	2.4	20	2.8	22.14	CAD	Cart
SEC-M6-12-TZB	M6	1	12	10	1.2	2	2.4	20	2.9	17.77	CAD	Cart
SEC-M6-14-TZB	M6	1	14	10	1.2	2	2.4	20	3.4	20.27	CAD	Cart
SEC-M6-15-TZB	M6	1	15	10	1.2	2	2.4	20	3.4	20.27	CAD	Cart
SEC-M6-16-TZB	M6	1	16	10	1.2	2	2.4	20	3.4	20.27	CAD	Cart
SEC-M6-20-TZB	M6	1	20	10	1.2	2	2.4	20	3.8	22.14	CAD	Cart
SEC-M6-22-TZB	M6	1	22	10	1.2	2	2.4	20	4.1	24.63	CAD	Cart
SEC-M6-25-TZB	M6	1	25	10	1.2	2	2.4	20	4.4	24.63	CAD	Cart
SEC-M6-30-TZB	M6	1	30	10	1.2	2	2.4	20	5	27.75	CAD	Cart
SEC-M6-35-TZB	M6	1	35	10	1.2	2	2.4	20	6.5	30.87	CAD	Cart
SEC-M6-40-TZB	M6	1	40	10	1.2	2	2.4	20	7	34.29	CAD	Cart
SEC-M6-45-TZB	M6	1	45	10	1.2	2	2.4	20	7.5	37.41	CAD	Cart
SEC-M6-50-TZB	M6	1	50	10	1.2	2	2.4	20	8	40.53	CAD	Cart

＊1：　Values in chart are for reference only. They are not guaranteed values.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SEC-TZB
Main Body	Steel Trivalent Chromate Treatment

Application

Reducing the size of equipment and devices

Characteristics

Cross recessed head cap screws with extra low profile.
For space-saving of equipment/devices and applications with limited overhead space.
SEQ-TZB, with special cross recesses helping to prevent cam-out, are also available. The lineup includes some M3/M4 L dimensions.SEQ-TZB
