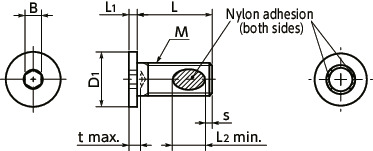

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | t | s | L2 | Max. Tightening Torque＊ (N・m) |
Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSHS-M6-6-ALK | M6 | 1 | 6 | 10 | 1.5 | 3 | 4 | 0 | 5 | 3.5 | 10 | 1.4 | 29.59 | CAD | Cart |
| SSHS-M6-8-ALK | M6 | 1 | 8 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 1.8 | 19.73 | CAD | Cart |
| SSHS-M6-10-ALK | M6 | 1 | 10 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 2.1 | 19.42 | CAD | Cart |
| SSHS-M6-12-ALK | M6 | 1 | 12 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 2.5 | 19.73 | CAD | Cart |
| SSHS-M6-16-ALK | M6 | 1 | 16 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 3.2 | 20.28 | CAD | Cart |
| SSHS-M6-20-ALK | M6 | 1 | 20 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 4 | 21.54 | CAD | Cart |
| SSHS-M6-25-ALK | M6 | 1 | 25 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 5 | 23.58 | CAD | Cart |
| SSHS-M6-30-ALK | M6 | 1 | 30 | 10 | 1.5 | 3 | 4 | 2 | 5 | 3.5 | 10 | 5.7 | 24.86 | CAD | Cart |
＊： Values in chart are for reference only. They are not guaranteed values.
Related Services
Material/Finish
| SSHS-ALK | |
|---|---|
| Main Body | SUSXM7 (Equivalent to SUS304) |
| Nylon Patch | Nylon 11 |
| Strength Class | A2-50 |
Application
Reducing the size of equipment and devices / Return and fall prevention of screwsCharacteristics

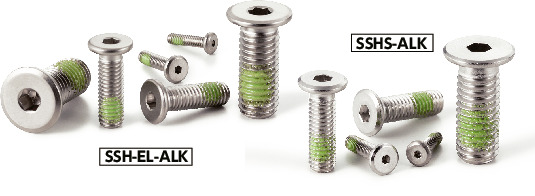

- Stainless steel hex socket head cap screw with special low profile and nylon patch.
- The friction of the nylon adhered to the thread suppresses the return rotation of the thread.
- Even if the tightening force is lost, the return rotation is suppressed, preventing the screws from falling off.
- The heat resistance temperature of nylon patch is 120℃.
- All head heights are 1.5mm or less.
- For space-saving of equipment/devices and applications with limited overhead space.
