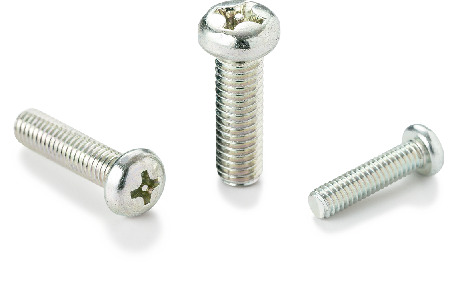

SRP-TZB/Cross Recessed (with Pin) Pan Head Machine Screws

Safety Precautions

RoHS Compliant

  • Tamper Resistance
SRP-TZBCross Recessed (with Pin) Pan Head Machine Screws

Dimension Drawing

SRP-TZBCross Recessed (with Pin) Pan Head Machine Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
L
All
6
8
10
16
20

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Cross-recessed Socket No. Bit Part No. Screwdriver
Part No.		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SRP-M3-6-TZB M3 0.5 6 5.5 2 2 SRCB-2 SRD-6.35 20 0.45 6.55 CAD Cart
SRP-M3-8-TZB M3 0.5 8 5.5 2 2 SRCB-2 SRD-6.35 20 0.53 6.55 CAD Cart
SRP-M3-10-TZB M3 0.5 10 5.5 2 2 SRCB-2 SRD-6.35 20 0.62 6.55 CAD Cart
SRP-M4-6-TZB M4 0.7 6 7 2.6 2 SRCB-2 SRD-6.35 20 0.97 7.80 CAD Cart
SRP-M4-10-TZB M4 0.7 10 7 2.6 2 SRCB-2 SRD-6.35 20 1.24 7.80 CAD Cart
SRP-M4-16-TZB M4 0.7 16 7 2.6 2 SRCB-2 SRD-6.35 20 1.67 7.80 CAD Cart
SRP-M5-10-TZB M5 0.8 10 9 3.3 2 SRCB-2 SRD-6.35 20 2.25 12.47 CAD Cart
SRP-M5-16-TZB M5 0.8 16 9 3.3 2 SRCB-2 SRD-6.35 20 2.97 12.47 CAD Cart
SRP-M5-20-TZB M5 0.8 20 9 3.3 2 SRCB-2 SRD-6.35 20 3.43 12.47 CAD Cart
SRP-M6-10-TZB M6 1 10 10.5 3.9 3 SRCB-3 SRD-6.35 20 3.5 18.71 CAD Cart
SRP-M6-16-TZB M6 1 16 10.5 3.9 3 SRCB-3 SRD-6.35 20 4.5 18.71 CAD Cart
SRP-M6-20-TZB M6 1 20 10.5 3.9 3 SRCB-3 SRD-6.35 20 5 18.71 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SRP-TZB
Main Body Steel
Trivalent Chromate
Strength Class 4.8 Equivalent

Application

Equipment/devices disassembly/tampering prevention
Theft prevention for outdoor facilities
Security measures
Safety measures

Characteristics

  • Pan head machine screws with a pin at the center of the cross recess.
  • This prevents mounting and removing with regular tools.
  • Install and remove with SRCB dedicated bits and SRD dedicated magnetic screwdriver in combination.

Related Products

SRCB applicable bits are available.SRCB

SRP-TZBCross Recessed (with Pin) Pan Head Machine Screws

Dedicated magnetic screwdrivers SRD are available.SRD

SRP-TZBCross Recessed (with Pin) Pan Head Machine Screws
