• Special Screws
  • Security screws / Tamper Resistant Screws

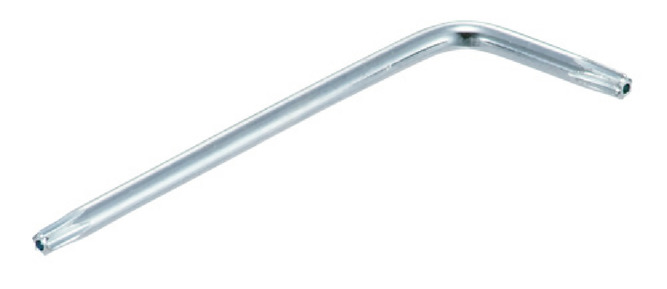

SRX/Wrench for Hexalobular Socket (with Pin) Tamper-Resistant Screws

  • Tamper Resistance

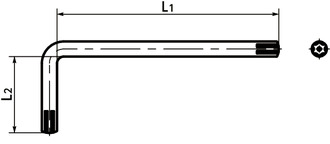

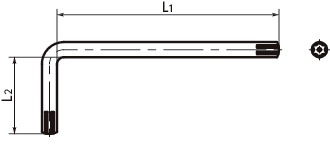

Dimension Drawing

SRXWrench for Hexalobular Socket (with Pin) Tamper-Resistant Screws寸法図

Specs/CAD

Unit : mm

Part Number Hexalobular Socket No. L1 L2 Mass
(g)
Price
(USD)
QTY
(Piece)
SRX-10 10 60 20 3.7 20.46 Cart
SRX-20 20 67 23 8.2 20.46 Cart
SRX-25 25 70 25 11 20.46 Cart
SRX-30 30 81 28 20 20.46 Cart
SRX-40 40 88 31 32 20.46 Cart

Application

Mounting and removing the tamper resistant screws

Characteristics

  • Wrench for tamper-resistance screws with a pin at the center of the hexalobular socket.
