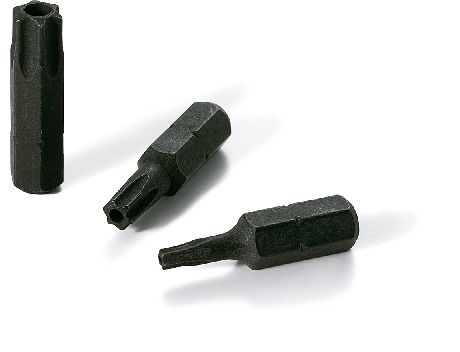

SRXB/Bits for Hexalobular Socket (with Pin) Tamper-Resistant Screws

  • Tamper Resistance

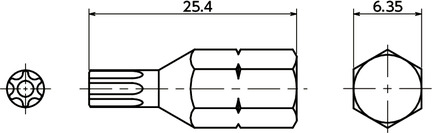

Dimension Drawing

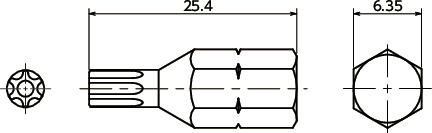

SRXBBits for Hexalobular Socket (with Pin) Tamper-Resistant Screws寸法図

Specs/CAD

Part Number Hexalobular Socket No. Mass
(g)
Price
(USD)
QTY
(Piece)
SRXB-6 6 4.25 22.29 Cart
SRXB-8 8 4.3 22.29 Cart
SRXB-10 10 4.36 17.61 Cart
SRXB-20 20 4.57 17.61 Cart
SRXB-25 25 4.79 17.61 Cart
SRXB-30 30 5.50 17.61 Cart
SRXB-40 40 6.00 17.61 Cart

Application

Mounting and removing the tamper resistant screws

Characteristics

  • Short bit for tamper-resistance screws with a pin at the center of the hexalobular socket*1.
  • Use in combination with the dedicated magnetic screwdriver SRD and commercial bit-interchangeable screwdrivers.

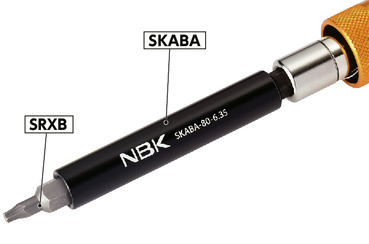

  • If combining with a tool with a deep bit insertion depth, use the SKABA Adapter for Short Bit.SKABA

*1: The hexalobular shape is prescribed by JIS B 1015: 2008(ISO 10664: 2005)"Hexalobular internal driving feature for bolts and screws".


Usage Example

SRXBBits for Hexalobular Socket (with Pin) Tamper-Resistant Screws


Related Products

Dedicated magnetic screwdrivers SRD are available.SRD

SRXBBits for Hexalobular Socket (with Pin) Tamper-Resistant Screws

SKABA short bit adapters are available.SKABA

SRXBBits for Hexalobular Socket (with Pin) Tamper-Resistant Screws
