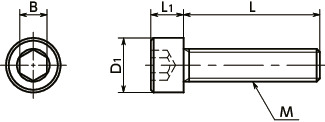

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SNSS-M3-5-PC | M3 | 0.5 | 5 | 5.5 | 3 | 2.5 | 20 | 0.67 | 24.40 | CAD | Cart |
| SNSS-M3-6-PC | M3 | 0.5 | 6 | 5.5 | 3 | 2.5 | 20 | 0.71 | 24.40 | CAD | Cart |
| SNSS-M3-8-PC | M3 | 0.5 | 8 | 5.5 | 3 | 2.5 | 20 | 0.8 | 24.40 | CAD | Cart |
| SNSS-M3-10-PC | M3 | 0.5 | 10 | 5.5 | 3 | 2.5 | 20 | 0.88 | 24.40 | CAD | Cart |
| SNSS-M3-12-PC | M3 | 0.5 | 12 | 5.5 | 3 | 2.5 | 20 | 0.96 | 26.43 | CAD | Cart |
| SNSS-M3-16-PC | M3 | 0.5 | 16 | 5.5 | 3 | 2.5 | 20 | 1.2 | 29.14 | CAD | Cart |
| SNSS-M4-5-PC | M4 | 0.7 | 5 | 7 | 4 | 3 | 20 | 1.4 | 24.40 | CAD | Cart |
| SNSS-M4-6-PC | M4 | 0.7 | 6 | 7 | 4 | 3 | 20 | 1.5 | 24.40 | CAD | Cart |
| SNSS-M4-8-PC | M4 | 0.7 | 8 | 7 | 4 | 3 | 20 | 1.7 | 24.40 | CAD | Cart |
| SNSS-M4-10-PC | M4 | 0.7 | 10 | 7 | 4 | 3 | 20 | 1.8 | 24.40 | CAD | Cart |
| SNSS-M4-12-PC | M4 | 0.7 | 12 | 7 | 4 | 3 | 20 | 2 | 26.43 | CAD | Cart |
| SNSS-M4-16-PC | M4 | 0.7 | 16 | 7 | 4 | 3 | 20 | 2.3 | 30.50 | CAD | Cart |
| SNSS-M4-20-PC | M4 | 0.7 | 20 | 7 | 4 | 3 | 20 | 2.7 | 32.53 | CAD | Cart |
| SNSS-M4-25-PC | M4 | 0.7 | 25 | 7 | 4 | 3 | 20 | 3.2 | 36.60 | CAD | Cart |
| SNSS-M5-6-PC | M5 | 0.8 | 6 | 8.5 | 5 | 4 | 20 | 2.2 | 26.43 | CAD | Cart |
| SNSS-M5-8-PC | M5 | 0.8 | 8 | 8.5 | 5 | 4 | 20 | 2.5 | 26.43 | CAD | Cart |
| SNSS-M5-10-PC | M5 | 0.8 | 10 | 8.5 | 5 | 4 | 20 | 2.7 | 26.43 | CAD | Cart |
| SNSS-M5-12-PC | M5 | 0.8 | 12 | 8.5 | 5 | 4 | 20 | 3 | 27.11 | CAD | Cart |
| SNSS-M5-16-PC | M5 | 0.8 | 16 | 8.5 | 5 | 4 | 20 | 3.5 | 30.50 | CAD | Cart |
| SNSS-M5-20-PC | M5 | 0.8 | 20 | 8.5 | 5 | 4 | 20 | 4 | 32.53 | CAD | Cart |
| SNSS-M5-25-PC | M5 | 0.8 | 25 | 8.5 | 5 | 4 | 20 | 4.8 | 36.60 | CAD | Cart |
| SNSS-M6-8-PC | M6 | 1 | 8 | 10 | 6 | 5 | 20 | 4.3 | 30.90 | CAD | Cart |
| SNSS-M6-10-PC | M6 | 1 | 10 | 10 | 6 | 5 | 20 | 4.7 | 30.90 | CAD | Cart |
| SNSS-M6-12-PC | M6 | 1 | 12 | 10 | 6 | 5 | 20 | 5.1 | 31.17 | CAD | Cart |
| SNSS-M6-16-PC | M6 | 1 | 16 | 10 | 6 | 5 | 20 | 5.8 | 34.43 | CAD | Cart |
| SNSS-M6-20-PC | M6 | 1 | 20 | 10 | 6 | 5 | 20 | 6.5 | 39.03 | CAD | Cart |
| SNSS-M6-25-PC | M6 | 1 | 25 | 10 | 6 | 5 | 20 | 7.6 | 42.29 | CAD | Cart |
| SNSS-M6-30-PC | M6 | 1 | 30 | 10 | 6 | 5 | 20 | 8.3 | 47.44 | CAD | Cart |
| SNSS-M8-12-PC | M8 | 1.25 | 12 | 13 | 8 | 6 | 10 | 11 | 34.16 | CAD | Cart |
| SNSS-M8-16-PC | M8 | 1.25 | 16 | 13 | 8 | 6 | 10 | 12 | 35.10 | CAD | Cart |
| SNSS-M8-20-PC | M8 | 1.25 | 20 | 13 | 8 | 6 | 10 | 13 | 41.07 | CAD | Cart |
| SNSS-M8-25-PC | M8 | 1.25 | 25 | 13 | 8 | 6 | 10 | 15 | 43.91 | CAD | Cart |
| SNSS-M8-30-PC | M8 | 1.25 | 30 | 13 | 8 | 6 | 10 | 17 | 46.89 | CAD | Cart |
| SNSS-M8-35-PC | M8 | 1.25 | 35 | 13 | 8 | 6 | 10 | 19 | 51.77 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SNSS-PC | |
|---|---|
| Main Body | SUSXM7 (Equivalent to SUS304) Special Chemical Polishing |
| Strength Class | A2 - 70 |
Application
FPD production equipment / Semiconductor manufacturing equipment / Electron microscopesCharacteristics

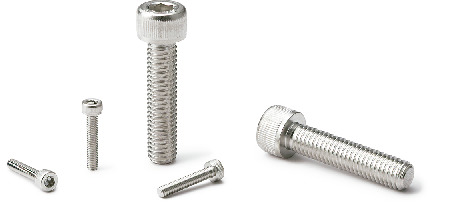

- Stainless steel hex socket head cap screws.
- Special chemical polishing treatment improves the surface roughness. Outgas quantity is extremely low. Ideal for use in medium vacuum environments.
- Cleanroom washing/cleanroom packing provided.⇒Cleanroom Wash / Cleanroom Packing Service
