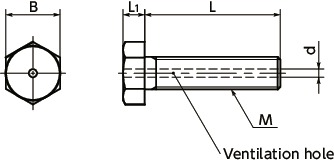

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | L1 | d max. |
Qty per Pack | Mass (g)＊1 |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SVHS-M8-16 | M8 | 1.25 | 16 | 13 | 5.3 | 2 | 10 | 11 | 63.06 | CAD | Cart |
| SVHS-M8-20 | M8 | 1.25 | 20 | 13 | 5.3 | 2 | 10 | 13 | 68.56 | CAD | Cart |
| SVHS-M8-25 | M8 | 1.25 | 25 | 13 | 5.3 | 2 | 10 | 14 | 74.69 | CAD | Cart |
| SVHS-M8-30 | M8 | 1.25 | 30 | 13 | 5.3 | 2 | 10 | 16 | 78.17 | CAD | Cart |
| SVHS-M8-35 | M8 | 1.25 | 35 | 13 | 5.3 | 2 | 10 | 18 | 82.75 | CAD | Cart |
Related Services
Material/Finish
| SVHS | |
|---|---|
| Main body | SUSXM7 (Equivalent to SUS304) |
| Strength Class | A2-70 |
Application
Vacuum device / Vacuum container / FPD production device /Semiconductor manufacturing device / Electron microscope
Characteristics

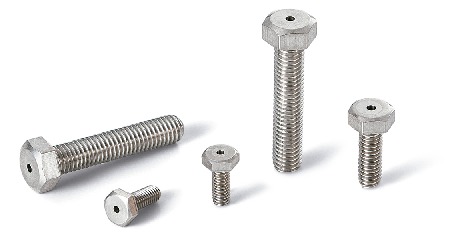

- The ventilation hole easily releases gas trapped in the screw holes of equipment and machines, and supports vacuum drawing of vacuum devices.
- The ventilation hole is machined by a method that has less effect on metal structure. It suppress the brittle failure and generation of outgas in a vacuum environment during use.
- For locations with narrow top space and hex wrench cannot be used.
- Cleanroom wash and cleanroom packing are completed.⇒Cleanroom Wash / Cleanroom Packing Service
