Captive

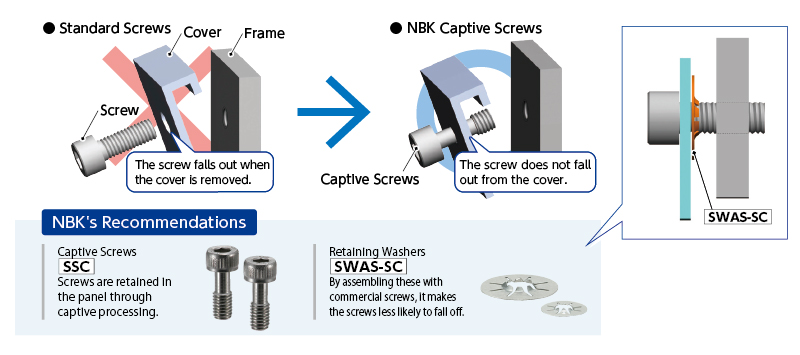

These screws are designed to prevent falling out.
They reduce the risk of parts falling off and getting lost.
Ideal for bolts used to secure inspection covers that require frequent attachment and removal.

Captive_1en

Part Name	Hex Socket Head Cap Screws with Captive Washers- High Strength Stainless Steel	Vented Socket Head Cap Screws with Captive Washers - Hign Intensity Stainless Steel	Vented Socket Head Cap Screws with Captive Wahsers	Vented Socket Head Cap Screws with Captive Wahsers - Chemical Polish	Hex Socket Head Cap Screws with Captive Washers	Vented Socket Head Cap Screws with Captive Wahsers	Socket Head Cap Screws with Washers for Sheet Metal (SEMS)	Hexagon Head Screws with Captive Washer	Hexagon Head Screws with Captive Washer
Part Number	SNSQLG	SVSQLG	SVSI1S	SVSI1S-PC	SNSQS	SVSQS	SNSQS-SUC	SNHP2S	SNHP3S
Feature	High Strength (Strength Class 10.8 Equivalent) Heat Resistance Corrosion Resistance Nonmagnetic Captive Washers I=3	High Strength (Strength Class 10.8 Equivalent) Captive Washers I=3	Captive Washers I=1	Captive Washers I=1	Captive Washers I=3	Captive Washers I=3	For Sheet Metal Captive Washers P=3	Compliant with JIS B 1187 With Captive Washer P=2	Compliant with JIS B 1187 With Captive Washer P=3
Material	SUS316L	SUS316L	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	Equivalent to SUS304
Surface Treatment	-	-	-	Special Chemical Polishing	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M12	M3 ～ M6	M4 ～ M10	M4 ～ M12
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSQLG-M3 SNSQLG-M4 SNSQLG-M5 SNSQLG-M6	SVSQLG-M3 SVSQLG-M4 SVSQLG-M5 SVSQLG-M6	SVSI1S-M3 SVSI1S-M4 SVSI1S-M5 SVSI1S-M6	SVSI1S-M3-PC SVSI1S-M4-PC SVSI1S-M5-PC SVSI1S-M6-PC	SNSQS-M3 SNSQS-M4 SNSQS-M5 SNSQS-M6	SVSQS-M10 SVSQS-M12 SVSQS-M3 SVSQS-M4 SVSQS-M5 SVSQS-M6 SVSQS-M8	SNSQS-M3-SUC SNSQS-M4-SUC SNSQS-M5-SUC SNSQS-M6-SUC	SNHP2S-M10 SNHP2S-M4 SNHP2S-M5 SNHP2S-M6 SNHP2S-M8	SNHP3S-M10 SNHP3S-M12 SNHP3S-M4 SNHP3S-M5 SNHP3S-M6 SNHP3S-M8

Part Name	Phillips Pan Head Screws with Washers for Sheet Metal (SEMS)	Phillips Pan Head Screws with Washers for Sheet Metal (SEMS)	Hexalobular Socket Pan Head Machine Screws (with Pin) with Washer	Hexalobular Socket (with Pin) Pan Head Machine Screws with Washer with Nylon Patch	Phillips Cross Recessed Pan Head Machine Screws with Captive Washers	Phillips Cross Recessed Pan Head Machine Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers
Part Number	SNPI3-SUC	SNPI3S-SUC	SRTSQ-TZB	SRTSQ-TZB-ALK	SNPI1S	SNPI3S	SNSI1T	SNSI1T-UT	SNSI3T
Feature	For Sheet Metal Space-Saving Captive Washers P=3	For Sheet Metal Space-Saving Captive Washers P=3	Hexalobular Socket With Pin Captive Washer I=3	Hexalobular Socket With Pin Captive Washer I=3	Captive Washers I=1	Captive Washers I=3	Captive Washers I=1	Captive Washers I=1	Captive Washers I=3
Material	Steel	SUSXM7 (Equivalent to SUS304)	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium
Surface Treatment	Trivalent chromate treatment	-	Trivalent chromate treatment	Trivalent chromate treatment	-	-	Special Chemical Polishing	-	Special Chemical Polishing
Thread Size	M3 ～ M5	M3 ～ M6	M2 ～ M4	M2 ～ M4	M2.5 ～ M5	M2 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNPI3-M3-SUC SNPI3-M4-SUC SNPI3-M5-SUC	SNPI3S-M3-SUC SNPI3S-M4-SUC SNPI3S-M5-SUC SNPI3S-M6-SUC	SRTSQ-M2.6-TZB SRTSQ-M2-TZB SRTSQ-M3-TZB SRTSQ-M4-TZB	SRTSQ-M2.6-TZB-ALK SRTSQ-M2-TZB-ALK SRTSQ-M3-TZB-ALK SRTSQ-M4-TZB-ALK	SNPI1S-M2.5 SNPI1S-M3 SNPI1S-M4 SNPI1S-M5	SNPI3S-M2 SNPI3S-M2.5 SNPI3S-M3 SNPI3S-M4 SNPI3S-M5 SNPI3S-M6	SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6	SNSI1T-M3-UT SNSI1T-M4-UT SNSI1T-M5-UT SNSI1T-M6-UT	SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6

Part Name	Titanium Hex Socket Head Cap Screws with Captive Washers	Socket Head Cap Captive Screws - Electroless Nickel Plating	Socket Head Cap Captive Screws	Socket Head Cap Captive Screws - Cleanroom Washed & Packaged	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment	Socket Head Cap Captive Screws - Fluorine Coating	Socket Head Cap Captive Screws - PTFE Coating	Socket Head Cap Captive Screws - SUS316L	Socket Head Cap Captive Screws - High Intensity Stainless Steel
Part Number	SNSI3T-UT	SSC-SNS-EL	SSC	SSC-UCL	SSC-RY	SSC-FC	SSC-TF	SSC-SNSL	SSC-SNSLG
Feature	Captive Washers I=3	High Strength Captive / Loss Prevention	Standard Captive / Loss Prevention	Captive/ Loss Prevention Cleanroom Washed & Packaged	Chemical Resistance Anti-reflection Seizing Prevention Captive / Loss Prevention	Seizing Prevention Captive / Loss Prevention	Chemical Resistance Seizing Prevention Captive / Loss Prevention	Non-magnetic Chemical Resistance Heat Resistance Captive / Loss Prevention	High Strength (Strength Class 10.8 Equivalent) Heat Resistance Corrosion Resistance Non-magnetic Captive / Loss Prevention
Material	Grade 2 Titanium	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L
Surface Treatment	-	Electroless nickel plating	-	-	Low temperature black chrome treatment	Fluorine coating	PTFE coating	-	-
Thread Size	M3 ～ M6	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSI3T-M3-UT SNSI3T-M4-UT SNSI3T-M5-UT SNSI3T-M6-UT	SSC-SNS-M3-EL SSC-SNS-M4-EL SSC-SNS-M5-EL SSC-SNS-M6-EL SSC-SNS-M8-EL	SSC-M3 SSC-M4 SSC-M5 SSC-M6 SSC-M8	SSC-M3-UCL SSC-M4-UCL SSC-M5-UCL SSC-M6-UCL SSC-M8-UCL	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY	SSC-M3-FC SSC-M4-FC SSC-M5-FC SSC-M6-FC SSC-M8-FC	SSC-M3-TF SSC-M4-TF SSC-M5-TF SSC-M6-TF SSC-M8-TF	SSC-SNSL-M3 SSC-SNSL-M4 SSC-SNSL-M5 SSC-SNSL-M6 SSC-SNSL-M8	SSC-SNSLG-M3 SSC-SNSLG-M4 SSC-SNSLG-M5 SSC-SNSLG-M6

Part Name	Socket Head Cap Captive Screws - Titanium	Socket Head Cap Captive Screws - High Intensity Titanium	Socket Head Cap Captive Screws and Retaining Washer Set	Vented Socket Head Cap Captive Screws	Socket Head Cap Captive Screws (Inch Screws)	Pan head captive machine screws for precision instruments (miniature screws)	Socket Head Cap Captive Screws with Low Profile	Socket Head Cap Captive Screws with Low Profile - 316L Stainless Steel	Socket Head Cap Captive Screws with Special Low Profile
Part Number	SSC-SNST	SSC-SNSTG	SSC-SET	SSC-SVSS	SSC(INCH)	SSCZS	SSCLS	SSC-SLHL	SSCHS
Feature	Lightweight Non-magnetic Chemical Resistance Captive / Loss Prevention	High Strength Lightweight Non-magnetic Corrosion Resistance Captive / Loss Prevention	Standard Captive / Loss Prevention	Captive / Loss Prevention	Inch Thread Captive / Loss Prevention	For Precision Instruments Captive / Loss Prevention	Low Profile Captive / Loss Prevention	Captive / Loss Prevention Space-Saving Low Profile	Special Low Profile Captive / Loss Prevention
Material	Grade 2 Titanium	Grade 5 Titanium	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Special Chemical Polishing	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M8	M3 ～ M8	M3 ～ M8	No.4-40UNC ～ 1/4-20UNC	M1.4 ～ M2.6	M3 ～ M8	M3 ～ M6	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSC-SNST-M3 SSC-SNST-M4 SSC-SNST-M5 SSC-SNST-M6	SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8	SSC-M3-SET SSC-M4-SET SSC-M5-SET SSC-M6-SET SSC-M8-SET	SSC-SVSS-M3 SSC-SVSS-M4 SSC-SVSS-M5 SSC-SVSS-M6 SSC-SVSS-M8	SSC-#10-32 SSC-#4-40 SSC-#6-32 SSC-#8-32 SSC-1/4-20	SSCZS-M1.4 SSCZS-M1.6 SSCZS-M1.7 SSCZS-M2 SSCZS-M2.5 SSCZS-M2.6	SSCLS-M3 SSCLS-M4 SSCLS-M5 SSCLS-M6 SSCLS-M8	SSC-SLHL-M3 SSC-SLHL-M4 SSC-SLHL-M5 SSC-SLHL-M6	SSCHS-M3 SSCHS-M4 SSCHS-M5 SSCHS-M6 SSCHS-M8

Part Name	Socket Head Cap Captive Screws with Small Head	Socket Head Cap Captive Screws with Ultra Low Small Head	Flanged Socket Head Cap Captive Screws	Hex Head Captive Screws - 316L Stainless Steel	Cross Recessed Pan Head Captive Machine Screws	Phillips Pan Head Captive Screws - SUS316L	Phillips Pan Head Captive Screws - Brass	Cross Recessed Truss Head Captive Screws	Phillips Truss Head Captive Screws - SUS316L
Part Number	SSC-SD	SSCHS-SD	SSC-SFSS	SSC-SNHL	SSCPS	SSCPL	SSCPB	SSCMS	SSCML
Feature	Small Head Space-saving Captive / Loss Prevention	Ultra Low Small Head Space-saving Captive / Loss Prevention	Flanged Captive/Loss Prevention	Captive / Loss Prevention	Pan Head Machine Screws Captive / Loss Prevention	Pan Head Machine Screws Captive / Loss Prevention	Pan Head Machine Screws Captive / Loss Prevention	Truss Head Screws Captive / Loss Prevention	Truss Head Screws Captive / Loss Prevention
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUSXM7 (Equivalent to SUS304)	SUS316L	Brass	SUSXM7 (Equivalent to SUS304)	SUS316L
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M8	M3 ～ M8	M4 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSC-M3-SD SSC-M4-SD SSC-M5-SD SSC-M6-SD SSC-M8-SD	SSCHS-M3-SD SSCHS-M4-SD SSCHS-M5-SD SSCHS-M6-SD SSCHS-M8-SD	SSC-SFSS-M4 SSC-SFSS-M5 SSC-SFSS-M6 SSC-SFSS-M8	SSC-SNHL-M3 SSC-SNHL-M4 SSC-SNHL-M5 SSC-SNHL-M6 SSC-SNHL-M8	SSCPS-M3 SSCPS-M4 SSCPS-M5 SSCPS-M6 SSCPS-M8	SSCPL-M3 SSCPL-M4 SSCPL-M5 SSCPL-M6 SSCPL-M8	SSCPB-M3 SSCPB-M4 SSCPB-M5 SSCPB-M6 SSCPB-M8	SSCMS-M3 SSCMS-M4 SSCMS-M5 SSCMS-M6 SSCMS-M8	SSCML-M3 SSCML-M4 SSCML-M5 SSCML-M6 SSCML-M8

Part Name	Plastic Captive Washers - PC
Part Number	SPC-SW
Feature	Electrical Insulation Lightweight Shock Resistance Weather Resistance
Material	PC
Surface Treatment	-
Thread Size	M3 ～ M6
Operating Temperature (℃)	-
CAD	CAD
Specifications	Specifications
List	SPC-3-SW SPC-4-SW SPC-5-SW SPC-6-SW
