  • Special Screws
  • Captive

SSC-M3-SET

Socket Head Cap Captive Screws and Retaining Washer Set

  • Loss Prevention

Hints for Correctly Using NBK Products

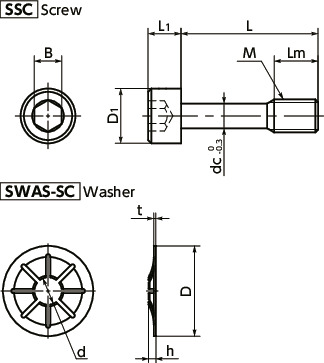

Dimension Drawing

SSC-SETSocket Head Cap Captive Screws and Retaining Washer Set寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
L
All
4
6
8
10
12
16

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch L Lm D1 L1 B dc D d t h Qty per Pack Mass
(g)
CAD
Download
RFQ
SSC-M3-4-SET M3 0.5 4 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.7 CAD RFQ
SSC-M3-6-SET M3 0.5 6 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.8 CAD RFQ
SSC-M3-8-SET M3 0.5 8 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-10-SET M3 0.5 10 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-12-SET M3 0.5 12 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-16-SET M3 0.5 16 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1.3 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L Lm D1 L1 B dc D d t h Qty per Pack Mass
(g)
CAD
Download
RFQ
SSC-M3-4-SET M3 0.5 4 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.7 CAD RFQ
SSC-M3-6-SET M3 0.5 6 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.8 CAD RFQ
SSC-M3-8-SET M3 0.5 8 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-10-SET M3 0.5 10 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-12-SET M3 0.5 12 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-16-SET M3 0.5 16 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1.3 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L Lm D1 L1 B dc D d t h Qty per Pack Mass
(g)
CAD
Download
RFQ
SSC-M3-4-SET M3 0.5 4 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.7 CAD RFQ
SSC-M3-6-SET M3 0.5 6 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.8 CAD RFQ
SSC-M3-8-SET M3 0.5 8 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-10-SET M3 0.5 10 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-12-SET M3 0.5 12 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-16-SET M3 0.5 16 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1.3 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L Lm D1 L1 B dc D d t h Qty per Pack Mass
(g)
CAD
Download
RFQ
SSC-M3-4-SET M3 0.5 4 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.7 CAD RFQ
SSC-M3-6-SET M3 0.5 6 2 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 0.8 CAD RFQ
SSC-M3-8-SET M3 0.5 8 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-10-SET M3 0.5 10 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-12-SET M3 0.5 12 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1 CAD RFQ
SSC-M3-16-SET M3 0.5 16 4 5.5 3 2.5 2.2 8 2.6 0.3 0.9 10 1.3 CAD RFQ

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SSC-SET
Hex Socket Head Cap Captive Screw Main Body SUSXM7 (Equivalent to SUS304)
Strength Class A2 - 70
Retaining Washer SUS304*1

*1: SWAS-5-SC, SWAS-6-SC, and SWAS-8-SC are SUS302.


Application

Screw fallout/loss prevention
For fixing protective covers and maintenance covers
CE Marking compatible
Redundant safety measures
Redundant fall prevention
Machine tools / Food machinery / Electrical and electronic equipment / Infrastructure facilities

Characteristics

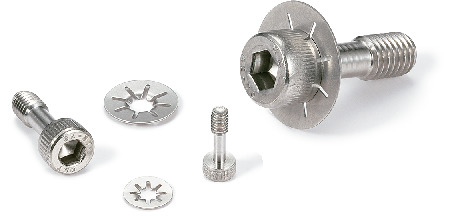

  • Set of Hex Socket Head Cap Captive Screw SSC and Retaining Washer SWAS-SC.
  • Even when the screw is removed from the frame, SSC does not fall out of the cover because the washer hook catches on the screw thread. Even if SWAS-SC is damaged, the SSC thread part will catch, for double prevention of screw fall-off and loss.
  • For CE Marking compatibility.⇒Use the NBK Captive Screw Series to be comply with CE

Usage Example

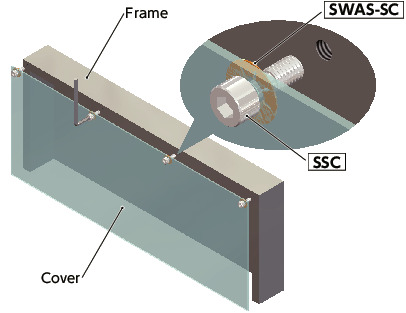

When a screw mounted on a cover is removed from the frame, thanks to the redundant fall protection of the captive screw and retaining washer, the screw does not fall.

SSC-SETSocket Head Cap Captive Screws and Retaining Washer Set


Precautions for Use

  • Screw hole inner diameter on the cover side shall be at least the dc dimension.
  • The cover thickness should be 0.8 mm or above.
  • Once SWAS-SC is mounted on a screw, it cannot be easily removed.
  • To remove, either SWAS-SCor screw must be cut. Take care when mounting.
  • When the screw is loosened with SWAS-SC pressed to the cover, SWAS-SC may come off.

Installation Example

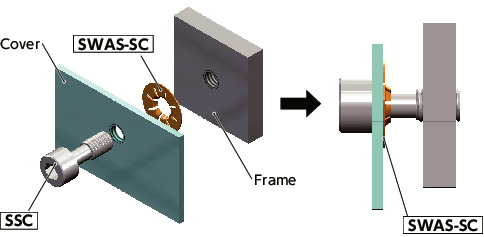

① Make a screw hole in the cover, and then pass the SSC thread part through it.

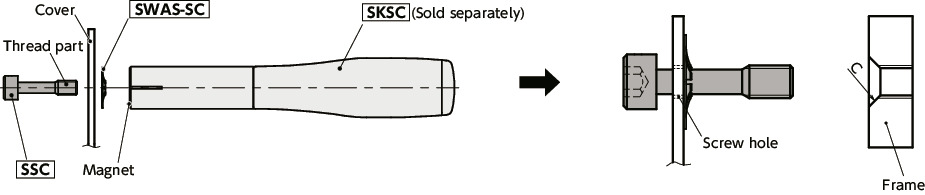

② Press-fit SWAS-SC into the thread part from the screw tip side. Ensure that the SWAS-SC hooks face the frame side. When mounting, use the dedicated tool SKSC (sold separately). For the frame side female thread chamfering, refer to Table 1.

SSC-SETSocket Head Cap Captive Screws and Retaining Washer Set

SSC-SETSocket Head Cap Captive Screws and Retaining Washer Set

Table 1

Unit : mm

Part Number Applicable Washer C
SSC-M3-SET SWAS-3-SC 1.5-2
SSC-M4-SET SWAS-4-SC 1.5-2
SSC-M5-SET SWAS-5-SC 1.5-2
SSC-M6-SET SWAS-6-SC 1.5-2
SSC-M8-SET SWAS-8-SC 1.5-2

Related Products

Use SKSC for retaining washer mounting.SKSC

SSC-SETSocket Head Cap Captive Screws and Retaining Washer Set
