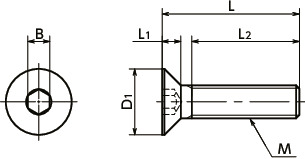

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | B | L2 | Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SNFCS-M3-5 | M3 | 0.5 | 5 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.34 | CAD | RFQ |
| SNFCS-M3-6 | M3 | 0.5 | 6 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.38 | CAD | RFQ |
| SNFCS-M3-8 | M3 | 0.5 | 8 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.46 | CAD | RFQ |
| SNFCS-M3-10 | M3 | 0.5 | 10 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.54 | CAD | RFQ |
| SNFCS-M3-12 | M3 | 0.5 | 12 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.62 | CAD | RFQ |
| SNFCS-M3-16 | M3 | 0.5 | 16 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.78 | CAD | RFQ |
| SNFCS-M3-20 | M3 | 0.5 | 20 | 6.72 | 1.86 | 2 | Full Thread | 20 | 0.94 | CAD | RFQ |
| SNFCS-M4-8 | M4 | 0.7 | 8 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 0.99 | CAD | RFQ |
| SNFCS-M4-10 | M4 | 0.7 | 10 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 1.1 | CAD | RFQ |
| SNFCS-M4-12 | M4 | 0.7 | 12 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 1.3 | CAD | RFQ |
| SNFCS-M4-16 | M4 | 0.7 | 16 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 1.5 | CAD | RFQ |
| SNFCS-M4-20 | M4 | 0.7 | 20 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 1.8 | CAD | RFQ |
| SNFCS-M4-25 | M4 | 0.7 | 25 | 8.96 | 2.48 | 2.5 | Full Thread | 20 | 2.2 | CAD | RFQ |
| SNFCS-M4-30 | M4 | 0.7 | 30 | 8.96 | 2.48 | 2.5 | 20 | 20 | 2.5 | CAD | RFQ |
| SNFCS-M5-8 | M5 | 0.8 | 8 | 11.2 | 3.1 | 3 | Full Thread | 20 | 1.8 | CAD | RFQ |
| SNFCS-M5-10 | M5 | 0.8 | 10 | 11.2 | 3.1 | 3 | Full Thread | 20 | 2 | CAD | RFQ |
| SNFCS-M5-12 | M5 | 0.8 | 12 | 11.2 | 3.1 | 3 | Full Thread | 20 | 2.2 | CAD | RFQ |
| SNFCS-M5-16 | M5 | 0.8 | 16 | 11.2 | 3.1 | 3 | Full Thread | 20 | 2.7 | CAD | RFQ |
| SNFCS-M5-20 | M5 | 0.8 | 20 | 11.2 | 3.1 | 3 | Full Thread | 20 | 3.1 | CAD | RFQ |
| SNFCS-M5-25 | M5 | 0.8 | 25 | 11.2 | 3.1 | 3 | Full Thread | 20 | 3.7 | CAD | RFQ |
| SNFCS-M5-30 | M5 | 0.8 | 30 | 11.2 | 3.1 | 3 | Full Thread | 20 | 4.3 | CAD | RFQ |
| SNFCS-M5-35 | M5 | 0.8 | 35 | 11.2 | 3.1 | 3 | 22 | 20 | 4.8 | CAD | RFQ |
| SNFCS-M6-10 | M6 | 1 | 10 | 13.44 | 3.72 | 4 | Full Thread | 20 | 3.2 | CAD | RFQ |
| SNFCS-M6-12 | M6 | 1 | 12 | 13.44 | 3.72 | 4 | Full Thread | 20 | 3.5 | CAD | RFQ |
| SNFCS-M6-16 | M6 | 1 | 16 | 13.44 | 3.72 | 4 | Full Thread | 20 | 4.1 | CAD | RFQ |
| SNFCS-M6-20 | M6 | 1 | 20 | 13.44 | 3.72 | 4 | Full Thread | 20 | 4.8 | CAD | RFQ |
| SNFCS-M6-25 | M6 | 1 | 25 | 13.44 | 3.72 | 4 | Full Thread | 20 | 5.5 | CAD | RFQ |
| SNFCS-M6-30 | M6 | 1 | 30 | 13.44 | 3.72 | 4 | Full Thread | 20 | 6.3 | CAD | RFQ |
| SNFCS-M6-35 | M6 | 1 | 35 | 13.44 | 3.72 | 4 | Full Thread | 20 | 7.1 | CAD | RFQ |
| SNFCS-M6-40 | M6 | 1 | 40 | 13.44 | 3.72 | 4 | Full Thread | 20 | 7.9 | CAD | RFQ |
| SNFCS-M8-12 | M8 | 1.25 | 12 | 17.92 | 4.96 | 5 | Full Thread | 10 | 7.2 | CAD | RFQ |
| SNFCS-M8-16 | M8 | 1.25 | 16 | 17.92 | 4.96 | 5 | Full Thread | 10 | 8.3 | CAD | RFQ |
| SNFCS-M8-20 | M8 | 1.25 | 20 | 17.92 | 4.96 | 5 | Full Thread | 10 | 9.5 | CAD | RFQ |
| SNFCS-M8-25 | M8 | 1.25 | 25 | 17.92 | 4.96 | 5 | Full Thread | 10 | 11 | CAD | RFQ |
| SNFCS-M8-30 | M8 | 1.25 | 30 | 17.92 | 4.96 | 5 | Full Thread | 10 | 12 | CAD | RFQ |
| SNFCS-M8-35 | M8 | 1.25 | 35 | 17.92 | 4.96 | 5 | Full Thread | 10 | 14 | CAD | RFQ |
| SNFCS-M8-40 | M8 | 1.25 | 40 | 17.92 | 4.96 | 5 | Full Thread | 10 | 15 | CAD | RFQ |
| SNFCS-M8-45 | M8 | 1.25 | 45 | 17.92 | 4.96 | 5 | Full Thread | 10 | 17 | CAD | RFQ |
| SNFCS-M8-50 | M8 | 1.25 | 50 | 17.92 | 4.96 | 5 | Full Thread | 10 | 18 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form here● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Services
Material/Finish
| SNFCS | |
|---|---|
| Main Body | Stainless Steel (A2) |
| Strength Class | A2-50 or more |
Characteristics

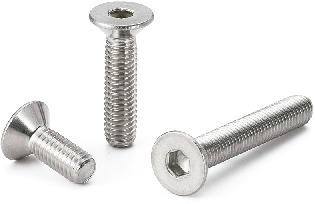

- Hex socket countersunk head screws conforming to JIS B 1194.
