SRGB

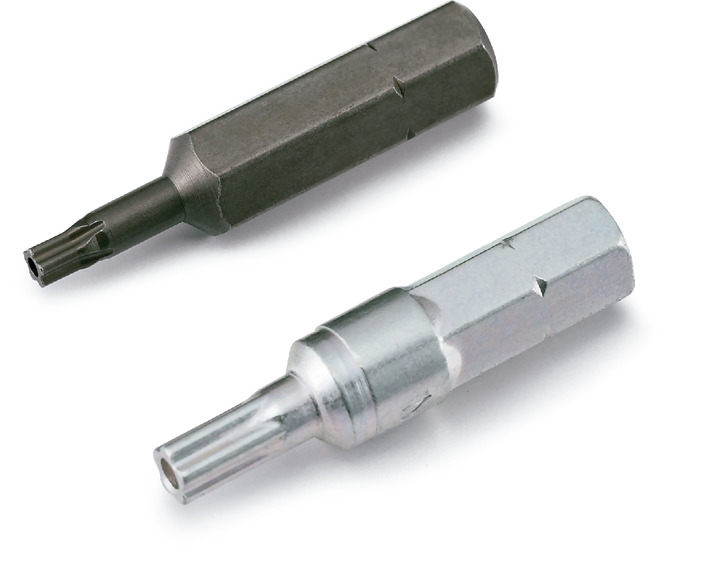

Five-Lobe Socket Bits (with Pin) for Tamper Resistant Screws

Tamper Resistance

SRGBFive-Lobe Socket Bits (with Pin) for Tamper Resistant Screws

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	Screw Part No.	L	B	Mass (g)	RFQ
SRGB-3	SRGS-M3	32	6.35	6	RFQ
SRGB-4	SRGS-M4	32	6.35	7.1	RFQ
SRGB-56	SRGS-M5/SRGS-M6	32	6.35	7.5	RFQ
SRGB-8	SRGS-M8	32	6.35	8.2	RFQ

Application

Mounting and removing the tamper resistant screws

Characteristics

Dedicated bit for button head cap screws with five-lobe holes (with Pin) SRGS. Use in combination with the dedicated magnetic screwdriver SRD.
