  • Special Screws
  • Security screws, Tamper Resistant Screws

Socket Head Cap Screws with Hexalobular Socket and Pin

SRHS

Safety Precautions

RoHS Compliant

  • Tamper Resistance
SRHSSocket Head Cap Screws with Hexalobular Socket and Pin

Dimension Drawing

SRHSSocket Head Cap Screws with Hexalobular Socket and Pin寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
L
All
6
8
10
12
16
20
25

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 B Applicable Wrench Type Applicable Bit Type Qty per Pack Mass
(g)		 CAD
Download		 RFQ
Bit Driver
SRHS-M3-6 M3 0.5 6 5.7 1.65 2 SRH-2 SRHB-2 SRD-6.35 20 0.48 CAD RFQ
SRHS-M3-8 M3 0.5 8 5.7 1.65 2 SRH-2 SRHB-2 SRD-6.35 20 0.57 CAD RFQ
SRHS-M3-10 M3 0.5 10 5.7 1.65 2 SRH-2 SRHB-2 SRD-6.35 20 0.65 CAD RFQ
SRHS-M3-12 M3 0.5 12 5.7 1.65 2 SRH-2 SRHB-2 SRD-6.35 20 0.73 CAD RFQ
SRHS-M3-16 M3 0.5 16 5.7 1.65 2 SRH-2 SRHB-2 SRD-6.35 20 0.93 CAD RFQ
SRHS-M4-6 M4 0.7 6 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 1.1 CAD RFQ
SRHS-M4-8 M4 0.7 8 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 1.2 CAD RFQ
SRHS-M4-10 M4 0.7 10 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 1.4 CAD RFQ
SRHS-M4-12 M4 0.7 12 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 1.5 CAD RFQ
SRHS-M4-16 M4 0.7 16 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 1.8 CAD RFQ
SRHS-M4-20 M4 0.7 20 7.6 2.2 2.5 SRH-2.5 SRHB-2.5 SRD-6.35 20 2.2 CAD RFQ
SRHS-M5-8 M5 0.8 8 9.5 2.75 3 SRH-3 SRHB-3 SRD-6.35 20 1.8 CAD RFQ
SRHS-M5-10 M5 0.8 10 9.5 2.75 3 SRH-3 SRHB-3 SRD-6.35 20 2 CAD RFQ
SRHS-M5-12 M5 0.8 12 9.5 2.75 3 SRH-3 SRHB-3 SRD-6.35 20 2.3 CAD RFQ
SRHS-M5-16 M5 0.8 16 9.5 2.75 3 SRH-3 SRHB-3 SRD-6.35 20 2.8 CAD RFQ
SRHS-M5-20 M5 0.8 20 9.5 2.75 3 SRH-3 SRHB-3 SRD-6.35 20 3.3 CAD RFQ
SRHS-M6-10 M6 1 10 10.5 3.3 4 SRH-4 SRHB-4 SRD-6.35 10 3.3 CAD RFQ
SRHS-M6-12 M6 1 12 10.5 3.3 4 SRH-4 SRHB-4 SRD-6.35 10 3.6 CAD RFQ
SRHS-M6-16 M6 1 16 10.5 3.3 4 SRH-4 SRHB-4 SRD-6.35 10 4.3 CAD RFQ
SRHS-M6-20 M6 1 20 10.5 3.3 4 SRH-4 SRHB-4 SRD-6.35 10 5.1 CAD RFQ
SRHS-M6-25 M6 1 25 10.5 3.3 4 SRH-4 SRHB-4 SRD-6.35 10 6.1 CAD RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

●When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SRHS
Main Body Equivalent to SUS304
Strength Class Equivalent to A2-50

Application

Equipment/devices disassembly/tampering prevention
Theft prevention for outdoor facilities
Security measures
Safety measures

Characteristics

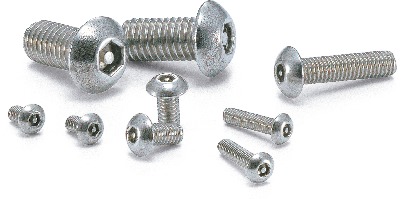

  • Button head cap screws with pin at the center of their socket.
  • This prevents mounting and removing with regular tools.
  • Install and remove with SRH Dedicated Wrench or SRHB Dedicated Bit and SRD Dedicated Magnetic Screwdriver together.

Related Products

SRH dedicated wrenches are available.SRH

SRHSSocket Head Cap Screws with Hexalobular Socket and Pin

SRHB applicable bits are available.SRHB

SRHSSocket Head Cap Screws with Hexalobular Socket and Pin

Dedicated magnetic screwdrivers SRD are available.SRD

SRHSSocket Head Cap Screws with Hexalobular Socket and Pin
