HOME
Products
Special Screws
Security screws, Tamper Resistant Screws
SRSHB

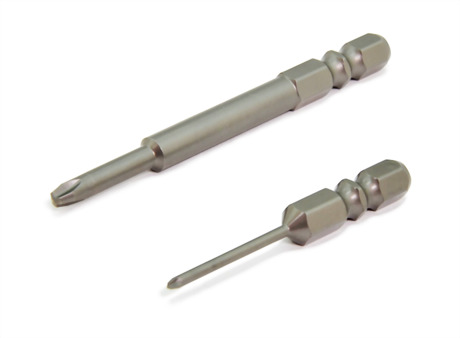

Bits for Tamper Resistant Special Low Profile Cap Screws

SRSHB

Tamper Resistance

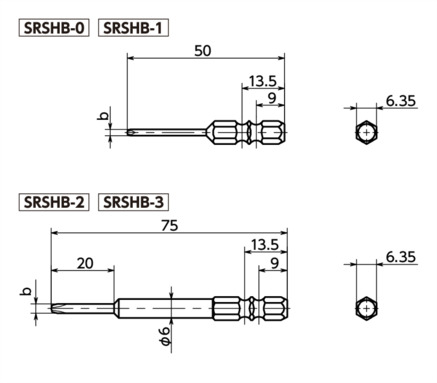

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	Screw Part No.	b	Mass (g)	RFQ
SRSHB-0	SRSHS-M2	2	6.4	RFQ
SRSHB-1	SRSHS-M2.5	2	6.4	RFQ
SRSHB-2	SRSHS-M3	3	13.8	RFQ
SRSHB-3	SRSHS-M4	4	14.7	RFQ

Application

Mounting and removing the tamper resistant screws

Characteristics

Tamper Resistant Special Low Profile Cap Screws SRSHS Dedicated Bit.
Compatible with V6.3 and U6.3 plug shapes. Use in combination with the dedicated magnetic screwdriver SRD and commercial bit-interchangeable screwdrivers.

Related Products

Tamper Resistant Special Low Profile Cap Screws SRSHS
SRSHS

SRSHBBits for Tamper Resistant Special Low Profile Cap Screws

Dedicated magnetic screwdrivers SRD are available.
SRD

SRSHBBits for Tamper Resistant Special Low Profile Cap Screws
