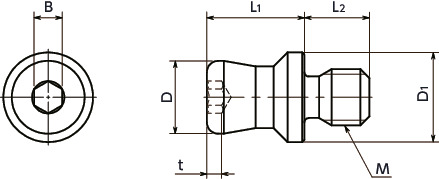

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | L1 | L2 | D | M (Coarse) Nominal of Thread |
Pitch | D1 | B | t | Applicable Quick Clamp Fastener | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NQTS-6-HP | 7.6 | 5.8 | 5.5 | M4 | 0.7 | 6 | 2.5 | 1.3 | NQTS-6-PH-BK
NQTS-6-PH-NI |
2 | 14.37 | CAD | Cart |
| NQTS-8-HP | 8.7 | 5.8 | 6.5 | M5 | 0.8 | 8 | 2.5 | 1.3 | NQTS-8-PH-BK
NQTS-8-PH-NI |
3 | 14.37 | CAD | Cart |
Characteristics

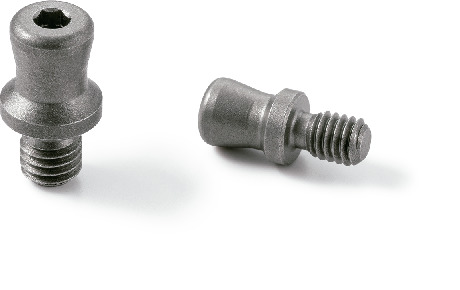

- Dedicated holding pin for Quick Clamp Fasteners NQTS-PHNQTS-PH-NI.
- Made of stainless steel. It has excellent corrosion resistance.
Material/Finish
| NQTS-HP | |
|---|---|
| Main Body | SUS630 |
Mounting

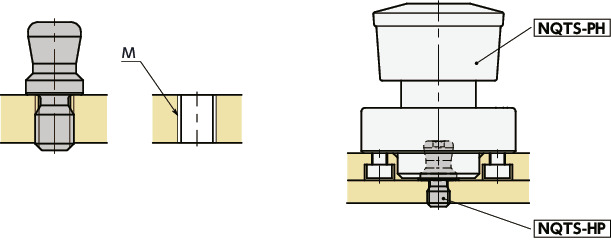

When Mounting on a Flat Surface
Unit : mm
| Part Number | M (Coarse) | |
|---|---|---|
| Nominal of Thread | Pitch | |
| NQTS-6-HP | M4 | 0.7 |
| NQTS-8-HP | M5 | 0.8 |

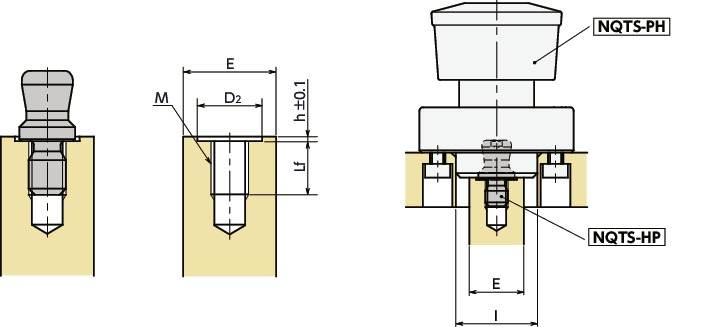

When I > E
I: Quick Clamp Fastener fitting part diameterE: Holding pin mounting part outside diameter
Make a spot facing hole to achieve the retention force as indicated in the specifications.
Unit : mm
| Part Number | M (Coarse) | D2 | h | Lf min. | E max. | I | |
|---|---|---|---|---|---|---|---|
| Nominal of Thread | Pitch | ||||||
| NQTS-6-HP | M4 | 0.7 | 7 | 0.5 | 6 | 14 | 14 |
| NQTS-8-HP | M5 | 0.8 | 9 | 0.5 | 6 | 18 | 18 |
