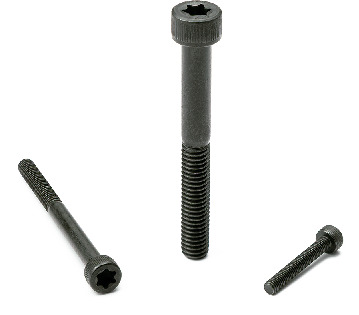

SNCX/Hexalobular Socket Head Cap Screws

Safety Precautions

RoHS Compliant

  • Tightening Hole Damage Prevention
SNCXHexalobular Socket Head Cap Screws

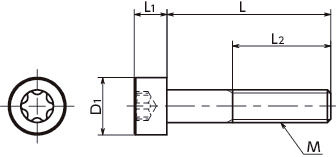

Dimension Drawing

SNCXHexalobular Socket Head Cap Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
L
All
5
6
8
10
12
15
16
20
25
30
35
40
45
50

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 L2 Hexalobular
Socket
No.		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNCX-M3-5 M3 0.5 5 5.5 3 Full Thread 10 50 0.67 14.58 CAD Cart
SNCX-M3-6 M3 0.5 6 5.5 3 Full Thread 10 50 0.71 14.58 CAD Cart
SNCX-M3-8 M3 0.5 8 5.5 3 Full Thread 10 50 0.8 14.58 CAD Cart
SNCX-M3-10 M3 0.5 10 5.5 3 Full Thread 10 50 0.88 14.58 CAD Cart
SNCX-M3-12 M3 0.5 12 5.5 3 Full Thread 10 50 0.96 15.44 CAD Cart
SNCX-M3-15 M3 0.5 15 5.5 3 Full Thread 10 50 1.101 15.44 CAD Cart
SNCX-M3-16 M3 0.5 16 5.5 3 Full Thread 10 50 1.16 16.30 CAD Cart
SNCX-M3-20 M3 0.5 20 5.5 3 Full Thread 10 50 1.36 16.30 CAD Cart
SNCX-M4-6 M4 0.7 6 7 4 Full Thread 25 50 1.5 18.01 CAD Cart
SNCX-M4-8 M4 0.7 8 7 4 Full Thread 25 50 1.65 18.87 CAD Cart
SNCX-M4-10 M4 0.7 10 7 4 Full Thread 25 50 1.8 19.73 CAD Cart
SNCX-M4-12 M4 0.7 12 7 4 Full Thread 25 50 1.95 20.59 CAD Cart
SNCX-M4-15 M4 0.7 15 7 4 Full Thread 25 50 2.007 21.44 CAD Cart
SNCX-M4-16 M4 0.7 16 7 4 Full Thread 25 50 2.25 21.44 CAD Cart
SNCX-M4-20 M4 0.7 20 7 4 Full Thread 25 50 2.65 22.30 CAD Cart
SNCX-M4-25 M4 0.7 25 7 4 Full Thread 25 50 3.15 24.02 CAD Cart
SNCX-M4-30 M4 0.7 30 7 4 20 25 50 3.333 27.44 CAD Cart
SNCX-M4-35 M4 0.7 35 7 4 20 25 50 3.814 31.73 CAD Cart
SNCX-M4-40 M4 0.7 40 7 4 20 25 50 4.293 34.30 CAD Cart
SNCX-M4-45 M4 0.7 45 7 4 20 25 50 4.756 42.01 CAD Cart
SNCX-M4-50 M4 0.7 50 7 4 20 25 50 5.244 51.44 CAD Cart
SNCX-M5-8 M5 0.8 8 8.5 5 Full Thread 27 50 2.45 19.73 CAD Cart
SNCX-M5-10 M5 0.8 10 8.5 5 Full Thread 27 50 2.7 20.59 CAD Cart
SNCX-M5-12 M5 0.8 12 8.5 5 Full Thread 27 50 2.95 21.44 CAD Cart
SNCX-M5-15 M5 0.8 15 8.5 5 Full Thread 27 50 3.55 22.30 CAD Cart
SNCX-M5-16 M5 0.8 16 8.5 5 Full Thread 27 50 3.45 23.16 CAD Cart
SNCX-M5-20 M5 0.8 20 8.5 5 Full Thread 27 50 4.01 24.02 CAD Cart
SNCX-M5-25 M5 0.8 25 8.5 5 Full Thread 27 50 4.78 25.72 CAD Cart
SNCX-M5-30 M5 0.8 30 8.5 5 22 27 50 5.55 30.01 CAD Cart
SNCX-M5-35 M5 0.8 35 8.5 5 22 27 50 6.32 33.44 CAD Cart
SNCX-M5-40 M5 0.8 40 8.5 5 22 27 50 7.08 38.58 CAD Cart
SNCX-M5-45 M5 0.8 45 8.5 5 22 27 50 7.8 45.45 CAD Cart
SNCX-M5-50 M5 0.8 50 8.5 5 22 27 50 8.6 54.01 CAD Cart
SNCX-M6-10 M6 1 10 10 6 Full Thread 30 50 4.7 23.16 CAD Cart
SNCX-M6-12 M6 1 12 10 6 Full Thread 30 50 5.07 24.02 CAD Cart
SNCX-M6-15 M6 1 15 10 6 Full Thread 30 50 5.5 25.72 CAD Cart
SNCX-M6-16 M6 1 16 10 6 Full Thread 30 50 5.75 26.58 CAD Cart
SNCX-M6-20 M6 1 20 10 6 Full Thread 30 50 6.53 28.30 CAD Cart
SNCX-M6-25 M6 1 25 10 6 Full Thread 30 50 7.59 30.87 CAD Cart
SNCX-M6-30 M6 1 30 10 6 Full Thread 30 50 8.3 34.30 CAD Cart
SNCX-M6-35 M6 1 35 10 6 24 30 50 9.1 36.87 CAD Cart
SNCX-M6-40 M6 1 40 10 6 24 30 50 10.2 40.30 CAD Cart
SNCX-M6-45 M6 1 45 10 6 24 30 50 11.25 48.88 CAD Cart
SNCX-M6-50 M6 1 50 10 6 24 30 50 12.51 56.59 CAD Cart
SNCX-M8-12 M8 1.25 12 13 8 Full Thread 45 20 10.519 17.49 CAD Cart
SNCX-M8-15 M8 1.25 15 13 8 Full Thread 45 20 11.222 18.19 CAD Cart
SNCX-M8-16 M8 1.25 16 13 8 Full Thread 45 20 11.524 18.87 CAD Cart
SNCX-M8-20 M8 1.25 20 13 8 Full Thread 45 20 12.868 19.89 CAD Cart
SNCX-M8-25 M8 1.25 25 13 8 Full Thread 45 20 14.295 21.27 CAD Cart
SNCX-M8-30 M8 1.25 30 13 8 Full Thread 45 20 15.99 22.98 CAD Cart
SNCX-M8-35 M8 1.25 35 13 8 Full Thread 45 20 18.08 24.70 CAD Cart
SNCX-M10-15 M10 1.5 15 16 10 Full Thread 50 10 19.208 12.86 CAD Cart
SNCX-M10-16 M10 1.5 16 16 10 Full Thread 50 10 19.92 13.04 CAD Cart
SNCX-M10-20 M10 1.5 20 16 10 Full Thread 50 10 22.992 14.41 CAD Cart
SNCX-M10-25 M10 1.5 25 16 10 Full Thread 50 10 24.51 15.78 CAD Cart
SNCX-M10-30 M10 1.5 30 16 10 Full Thread 50 10 27.046 17.15 CAD Cart
SNCX-M10-35 M10 1.5 35 16 10 Full Thread 50 10 29.56 19.05 CAD Cart
SNCX-M10-40 M10 1.5 40 16 10 Full Thread 50 10 32.604 20.59 CAD Cart
SNCX-M12-20 M12 1.75 20 18 12 Full Thread 55 5 32 8.24 CAD Cart
SNCX-M12-25 M12 1.75 25 18 12 Full Thread 55 5 35.5 8.93 CAD Cart
SNCX-M12-30 M12 1.75 30 18 12 Full Thread 55 5 39 9.78 CAD Cart
SNCX-M12-35 M12 1.75 35 18 12 Full Thread 55 5 44.493 12.70 CAD Cart
SNCX-M12-40 M12 1.75 40 18 12 Full Thread 55 5 47 14.07 CAD Cart
SNCX-M12-45 M12 1.75 45 18 12 Full Thread 55 5 49.5 14.41 CAD Cart
SNCX-M12-50 M12 1.75 50 18 12 Full Thread 55 5 55.15 14.92 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNCX
Main Body SCM435
Ferrosoferric Oxide Film (Black)
Strength Class 12.9

Application

Prevention of damage to screw heads
Reliable tightening

Characteristics

  • Hexalobular socket shapes＊1 are designed to withstand high tightening torque compared to cross-recesses. ⇒Features of the Hexalobular Socket
  • Recesses are unlikely to be damaged due to tightening, allowing safe and secure tightening to be performed.
  • Strength class is 12.9. High strength.
  • M3 - M12. Selection from abundant size variations is available to suit the device or equipment.

＊1：　The hexalobular shape is prescribed by JIS B 1015: 2008(ISO 10664: 2005)"Hexalobular internal driving feature for bolts and screws".
