Screws compatible with clean environments

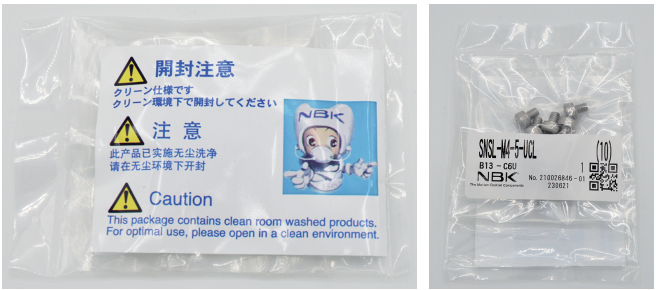

These screws are ultrasonically cleaned or IPA cleaned in a cleanroom environment and then packaged.

They are ideal for parts used in FPD manufacturing equipment, semiconductor manufacturing equipment, medical devices,
and food machinery, as well as parts used in cleanrooms.
Can be used immediately upon arrival, saving you cleaning process time.

clean1

Image Hex Socket Head Cap Screws - SUSXM7 - Cleanroom Washed & Packaged Flanged Socket Head Cap Screws - Cleanroom Washed & Packaged Socket Head Cap Screws with Low Profile - SUSXM7 - Cleanroom Washed & Packaged Socket Head Cap Screws with Ultra Low Profile - SUSXM7 - Cleanroom Washed & Packaged Hex Socket Head Cap Screws - 316L Stainless Steel ｰ Cleanroom Washed & Packaged High Strength Stainless Steel Socket Head Cap Screws - Cleanroom Washed & Packaged Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel - Cleanroom Washed & Packaged Socket Head Cap Captive Screws - Cleanroom Washed & Packaged Socket Head Cap Screws - Specialized Chemical Polishing
Part Name Hex Socket Head Cap Screws - SUSXM7 - Cleanroom Washed & Packaged Flanged Socket Head Cap Screws - Cleanroom Washed & Packaged Socket Head Cap Screws with Low Profile - SUSXM7 - Cleanroom Washed & Packaged Socket Head Cap Screws with Ultra Low Profile - SUSXM7 - Cleanroom Washed & Packaged Hex Socket Head Cap Screws - 316L Stainless Steel ｰ Cleanroom Washed & Packaged High Strength Stainless Steel Socket Head Cap Screws - Cleanroom Washed & Packaged Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel - Cleanroom Washed & Packaged Socket Head Cap Captive Screws - Cleanroom Washed & Packaged Socket Head Cap Screws - Specialized Chemical Polishing
Part Number SNSS-UCL SFSS-UCL SLHS-UCL SSHS-UCL SNSL-UCL SNSLG-UCL SSHL-UCL SSC-UCL SNSS-PC
Feature Cleanroom Washing/Cleanroom Packing Provided Flanged
Cleanroom Washing/Cleanroom Packing Provided		 Low Profile
Space-saving
Cleanroom Washing/Cleanroom Packing Provided		 Special Low Profile
Space-saving
Cleanroom Washing/Cleanroom Packing Provided		 Cleanroom Washing/Cleanroom Packing Provided High Strength (Strength Class 10.8 Equivalent)
Heat Resistance
Corrosion Resistance
Non-magnetic
Cleanroom Washing/Cleanroom Packing Provided		 Special Low Profile
Space-saving
Cleanroom Washing/Cleanroom Packing Provided		 Captive/Loss Prevention
Cleanroom Washing/Cleanroom Packing Provided		 Low Outgas
Material SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUS316L SUS316L SUS316L SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304)
Surface Treatment - - - - - - - - Special Chemical Polishing
Thread Size M2 ～ M6 M4 ～ M8 M2 ～ M6 M2 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M5 M3 ～ M8 M3 ～ M8
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNSS-M2.5-UCL SNSS-M2-UCL SNSS-M3-UCL SNSS-M4-UCL SNSS-M5-UCL SNSS-M6-UCL SFSS-M4-UCL SFSS-M5-UCL SFSS-M6-UCL SFSS-M8-UCL SLHS-M2.5-UCL SLHS-M2-UCL SLHS-M3-UCL SLHS-M4-UCL SLHS-M5-UCL SLHS-M6-UCL SSHS-M2.5-UCL SSHS-M2-UCL SSHS-M3-UCL SSHS-M4-UCL SSHS-M5-UCL SSHS-M6-UCL SNSL-M3-UCL SNSL-M4-UCL SNSL-M5-UCL SNSL-M6-UCL SNSLG-M3-UCL SNSLG-M4-UCL SNSLG-M5-UCL SNSLG-M6-UCL SSHL-M3-UCL SSHL-M4-UCL SSHL-M5-UCL SSC-M3-UCL SSC-M4-UCL SSC-M5-UCL SSC-M6-UCL SSC-M8-UCL SNSS-M3-PC SNSS-M4-PC SNSS-M5-PC SNSS-M6-PC SNSS-M8-PC
Image Flanged Socket Head Cap Screws - Specialized Chemical Polishing Socket Head Cap Screws - 316L Stainless Steel - Specialized Chemical Polishing High Strength Stainless Steel Socket Head Cap Screws - Specialized Chemical Polishing Hex Socket Head Cap Screws - Gold Coating Socket Head Cap Screws - SUS310S Hex Nut - SUS310S Washer - SUS310S Hex Socket Head Cap Screws - Titanium Hex Socket Head Cap Screws - High Intensity Titanium Alloy
Part Name Flanged Socket Head Cap Screws - Specialized Chemical Polishing Socket Head Cap Screws - 316L Stainless Steel - Specialized Chemical Polishing High Strength Stainless Steel Socket Head Cap Screws - Specialized Chemical Polishing Hex Socket Head Cap Screws - Gold Coating Socket Head Cap Screws - SUS310S Hex Nut - SUS310S Washer - SUS310S Hex Socket Head Cap Screws - Titanium Hex Socket Head Cap Screws - High Intensity Titanium Alloy
Part Number SFSS-PC SNSL-PC SNSLG-PC SNSS-AUS SNSJ SHNJ SWAJ-F SNST SNSTG
Feature Flanged
Low Outgas		 Heat Resistance
Corrosion Resistance
Non-magnetic
Low Outgas		 High Strength (Strength Class 10.8 Equivalent)
Low Outgas
Non-magnetic 		Seizing prevention Heat Resistance
Chemical Resistance		 Heat Resistance
Chemical Resistance		 Heat Resistance
Chemical Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance
Material SUSXM7 (Equivalent to SUS304) SUS316L SUS316L SUSXM7 (Equivalent to SUS304) SUS310S SUS310S SUS310S Grade 2 Titanium Grade 5 Titanium
Surface Treatment Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Gold Coating (Gold Purity: 99.99 wt%) - - - Special Chemical Polishing Special Chemical Polishing
Thread Size M4 ～ M8 M3 ～ M8 M3 ～ M6 M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M6 M2 ～ M10
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SFSS-M4-PC SFSS-M5-PC SFSS-M6-PC SFSS-M8-PC SNSL-M3-PC SNSL-M4-PC SNSL-M5-PC SNSL-M6-PC SNSL-M8-PC SNSLG-M3-PC SNSLG-M4-PC SNSLG-M5-PC SNSLG-M6-PC SNSS-M10-AUS SNSS-M3-AUS SNSS-M4-AUS SNSS-M5-AUS SNSS-M6-AUS SNSS-M8-AUS SNSJ-M10 SNSJ-M3 SNSJ-M4 SNSJ-M5 SNSJ-M6 SNSJ-M8 SHNJ-M10 SHNJ-M3 SHNJ-M4 SHNJ-M5 SHNJ-M6 SHNJ-M8 SWAJ-10-F SWAJ-3-F SWAJ-4-F SWAJ-5-F SWAJ-6-F SWAJ-8-F SNST-M3 SNST-M4 SNST-M5 SNST-M6 SNSTG-M10 SNSTG-M2 SNSTG-M2.5 SNSTG-M3 SNSTG-M4 SNSTG-M5 SNSTG-M6 SNSTG-M8
Image Socket Head Cap Screws with Small Head - Titanium Socket Head Cap Screws with Ultra Low Small Head - Titanium Titanium Hex Socket Head Cap Screws with Captive Washers Titanium Hex Socket Head Cap Screws with Captive Washers Cross Recessed Pan Head Machine Screws - Titanium Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Flat Head Machine Screws - Titanium Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy Hex Nuts / Hex Flange Nuts - Titanium
Part Name Socket Head Cap Screws with Small Head - Titanium Socket Head Cap Screws with Ultra Low Small Head - Titanium Titanium Hex Socket Head Cap Screws with Captive Washers Titanium Hex Socket Head Cap Screws with Captive Washers Cross Recessed Pan Head Machine Screws - Titanium Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Flat Head Machine Screws - Titanium Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy Hex Nuts / Hex Flange Nuts - Titanium
Part Number SNST-SD SSHT-SD SNSI1T SNSI3T SNPT SNPTG SNFT SNFTG SHNT
Feature Small Head
Lightweight
Non-magnetic
Chemical Resistance		 Special Low Profile
Space-saving
Lightweight
Non-magnetic
Chemical Resistance
Small Head 		Integrated Washers
I=1		 Integrated Washers
I=3		 Lightweight
Nonmagnetic
Chemical Resistance		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance		 Lightweight
Nonmagnetic
Chemical Resistance
Material Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium β Titanium Grade 2 Titanium β Titanium Grade 2 Titanium
Surface Treatment Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing Special Chemical Polishing
Thread Size M3 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M6 M2 ～ M5 M3 ～ M5 M3 ～ M4 M3 ～ M5 M3 ～ M10
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6 SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6 SNPT-M2 SNPT-M2.5 SNPT-M3 SNPT-M4 SNPT-M5 SNPTG-M3 SNPTG-M4 SNPTG-M5 SNFT-M3 SNFT-M4 SNFTG-M3 SNFTG-M4 SNFTG-M5 SHNT-M10 SHNT-M3 SHNT-M4 SHNT-M5 SHNT-M6 SHNT-M8
Image Hex Nuts / Hex Flange Nuts - Titanium Hex Lock Nuts - Titanium Washers - Titanium Washers - Titanium Socket Head Cap Captive Screws - Titanium Socket Head Cap Captive Screws - High Intensity Titanium Hex Socket Head Cap Screws - Aluminum Hex Socket Head Cap Screws - Phosphor Bronze Phosphor Bronze Pan Head Machine Screws for Precision Instruments (Miniature Screws)
Part Name Hex Nuts / Hex Flange Nuts - Titanium Hex Lock Nuts - Titanium Washers - Titanium Washers - Titanium Socket Head Cap Captive Screws - Titanium Socket Head Cap Captive Screws - High Intensity Titanium Hex Socket Head Cap Screws - Aluminum Hex Socket Head Cap Screws - Phosphor Bronze Phosphor Bronze Pan Head Machine Screws for Precision Instruments (Miniature Screws)
Part Number SHNT-F SWUT SWAT-F SWAT-S SSC-SNST SSC-SNSTG SNSA SNSP SNZP
Feature Lightweight
Nonmagnetic
Chemical Resistance
With Flange		 Lightweight
Nonmagnetic
Vibration Resistant		 Lightweight
Nonmagnetic
Chemical Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 Lightweight
Non-magnetic
Chemical Resistance
Captive/Loss Prevention		 High Strength
Lightweight
Non-magnetic
Corrosion Resistance
Captive/Loss Prevention		 Lightweight Non-Magnetic Non-magnetic
Pan Head Machine Screws
for Precision Instruments
Material Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium Grade 2 Titanium Grade 5 Titanium A5056 C5191 (Phosphor Bronze) C5191 (Phosphor Bronze)
Surface Treatment Special Chemical Polishing Special Chemical Polishing - - Special Chemical Polishing - - - -
Thread Size M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M6 M3 ～ M8 M3 ～ M8 M2 ～ M8 M2 ～ M2.5
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SHNT-M10-F SHNT-M3-F SHNT-M4-F SHNT-M5-F SHNT-M6-F SHNT-M8-F SWUT-M10 SWUT-M3 SWUT-M4 SWUT-M5 SWUT-M6 SWUT-M8 SWAT-10-F SWAT-3-F SWAT-4-F SWAT-5-F SWAT-6-F SWAT-8-F SWAT-10-S SWAT-3-S SWAT-4-S SWAT-5-S SWAT-6-S SWAT-8-S SSC-SNST-M3 SSC-SNST-M4 SSC-SNST-M5 SSC-SNST-M6 SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8 SNSA-M3 SNSA-M4 SNSA-M5 SNSA-M6 SNSA-M8 SNSP-M2 SNSP-M2.5 SNSP-M3 SNSP-M4 SNSP-M5 SNSP-M6 SNSP-M8 SNZP-M2 SNZP-M2.5
Image Socket Head Cap Screw -Inconel equiv. Inconel Hex Nut Inconel Washer Hex Socket Head Cap Screws - Super Invar Socket Head Cap Screw -Hastelloy C-276　equiv. Socket Head Cap Screws - Hastelloy C-22 equiv. Socket Head Cap Screws with Ultra Low Profile - Hastelloy C-22 equiv. Hex Socket Head Cap Screws (MAT21) Hex Socket Head Cap Screws - Nickel
Part Name Socket Head Cap Screw -Inconel equiv. Inconel Hex Nut Inconel Washer Hex Socket Head Cap Screws - Super Invar Socket Head Cap Screw -Hastelloy C-276　equiv. Socket Head Cap Screws - Hastelloy C-22 equiv. Socket Head Cap Screws with Ultra Low Profile - Hastelloy C-22 equiv. Hex Socket Head Cap Screws (MAT21) Hex Socket Head Cap Screws - Nickel
Part Number SNSI SHNI SWAI-F SNSIV SNSH-C276 SNSH-C22 SSHH-C22 SNSMT SNSN
Feature Chemical Resistance
Heat Resistance		 Chemical Resistance
Heat Resistance		 Chemical Resistance
Heat Resistance		 Low Expansion Chemical Resistance Chemical Resistance Chemical Resistance
Special Low Profile
Space-saving		 Chemical Resistance Chemical Resistance
Heat Resistance
Material Inconel equiv. Inconel equiv. Inconel equiv. Super Invar Hastelloy equiv. Hastelloy equiv. Hastelloy equiv. MAT21 Pure Nickel (Ni 99.0%)
Surface Treatment - - - - - - - - -
Thread Size M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M2 ～ M5 M3 ～ M8 M3 ～ M8
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNSI-M3 SNSI-M4 SNSI-M5 SNSI-M6 SNSI-M8 SHNI-M3 SHNI-M4 SHNI-M5 SHNI-M6 SHNI-M8 SWAI-3-F SWAI-4-F SWAI-5-F SWAI-6-F SWAI-8-F SNSIV-M3 SNSIV-M4 SNSIV-M5 SNSIV-M6 SNSIV-M8 SNSH-M3-C276 SNSH-M4-C276 SNSH-M5-C276 SNSH-M6-C276 SNSH-M8-C276 SNSH-M3-C22 SNSH-M4-C22 SNSH-M5-C22 SNSH-M6-C22 SNSH-M8-C22 SSHH-M2.5-C22 SSHH-M2-C22 SSHH-M3-C22 SSHH-M4-C22 SSHH-M5-C22 SNSMT-M3 SNSMT-M4 SNSMT-M5 SNSMT-M6 SNSMT-M8 SNSN-M3 SNSN-M4 SNSN-M5 SNSN-M6 SNSN-M8
Image Hex Socket Head Cap Screws (Monel 400 equiv.) Hex Socket Head Cap Screws (Tantalum) Hex Socket Head Cap Screws - Molybdenum Hex Nuts - Molybdenum Washers - Molybdenum Slotted Cheese Head Machine Screws (Pure Tungsten) Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SP-1） Plastic Screw - Hex Head Screws - VESPEL（Grade：SP-1） Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SCP-5000）
Part Name Hex Socket Head Cap Screws (Monel 400 equiv.) Hex Socket Head Cap Screws (Tantalum) Hex Socket Head Cap Screws - Molybdenum Hex Nuts - Molybdenum Washers - Molybdenum Slotted Cheese Head Machine Screws (Pure Tungsten) Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SP-1） Plastic Screw - Hex Head Screws - VESPEL（Grade：SP-1） Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SCP-5000）
Part Number SNSMN SNSTA SNSM SHNM SWAM-F SNCW SPD-C SPD-H SPDC-C
Feature Chemical-proof
Heat-resistance		 Chemical Resistance Heat Resistance Heat Resistance Heat Resistance Chemical Resistance Heat Resistance
Chemical Resistance
Low Outgas		 Heat Resistance
Chemical Resistance
Low Outgas		 Heat Resistance
Chemical Resistance
Low Outgas
Material Monel equiv. Tantalum Pure molybdenum Pure molybdenum Pure molybdenum Tungsten VESPEL® SP-1 VESPEL® SP-1 VESPEL® SCP-5000
Surface Treatment - - - - - - - - -
Thread Size M3 ～ M6 M3 ～ M6 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M6 M3 ～ M8 M3 ～ M8 M3 ～ M8
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNSMN-M3 SNSMN-M4 SNSMN-M5 SNSMN-M6 SNSTA-M3 SNSTA-M4 SNSTA-M5 SNSTA-M6 SNSM-M3 SNSM-M4 SNSM-M5 SNSM-M6 SNSM-M8 SHNM-M3 SHNM-M4 SHNM-M5 SHNM-M6 SHNM-M8 SWAM-3-F SWAM-4-F SWAM-5-F SWAM-6-F SWAM-8-F SNCW-M3 SNCW-M4 SNCW-M5 SNCW-M6 SPD-M3-C SPD-M4-C SPD-M5-C SPD-M6-C SPD-M8-C SPD-M3-H SPD-M4-H SPD-M5-H SPD-M6-H SPD-M8-H SPDC-M3-C SPDC-M4-C SPDC-M5-C SPDC-M6-C SPDC-M8-C
Image Plastic Screw - Hex Head Screws - VESPEL（Grade：SCP-5000） Cover Caps Cover Caps Cover Caps - PTFE Socket Head Cap Screws for Cover Caps Socket Head Cap Screws with Ventilation Hole Socket Head Cap Screws with Ventilation Hole - Chemical Polish Washers with Ventilation Grooves Washers with Ventilation Grooves - Chemical Polish
Part Name Plastic Screw - Hex Head Screws - VESPEL（Grade：SCP-5000） Cover Caps Cover Caps Cover Caps - PTFE Socket Head Cap Screws for Cover Caps Socket Head Cap Screws with Ventilation Hole Socket Head Cap Screws with Ventilation Hole - Chemical Polish Washers with Ventilation Grooves Washers with Ventilation Grooves - Chemical Polish
Part Number SPDC-H SCAP-AL SCAP-CE SCAP-PT SNCPS SVSS SVSS-PC SWAS-VF SWAS-VF-PC
Feature Heat Resistance
Chemical Resistance
Low Outgas		 Low Outgas
Corrosion Resistance		 Heat Resistance
Chemical Resistance

Electrical Insulation		 Chemical Resistance For Cover Caps Standard Low outgas Standard Low outgas
Material VESPEL® SCP-5000 A5056 Al2O3 (Alumina 99.5%) PTFE (Polytetrafluoroethylene) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUS304 SUS304
Surface Treatment - - - - - - Special Chemical Polishing - Special Chemical Polishing
Thread Size M3 ～ M8 M5 ～ M16 M5 ～ M16 M5 ～ M16 M3 ～ M10 M2 ～ M12 M3 ～ M12 M2 ～ M12 M3 ～ M12
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SPDC-M3-H SPDC-M4-H SPDC-M5-H SPDC-M6-H SPDC-M8-H SCAP-10-AL SCAP-3-AL SCAP-4-AL SCAP-5-AL SCAP-6-AL SCAP-8-AL SCAP-10-CE SCAP-3-CE SCAP-4-CE SCAP-5-CE SCAP-6-CE SCAP-8-CE SCAP-10-PT SCAP-3-PT SCAP-4-PT SCAP-5-PT SCAP-6-PT SCAP-8-PT SNCPS-M10 SNCPS-M3 SNCPS-M4 SNCPS-M5 SNCPS-M6 SNCPS-M8 SVSS-M10 SVSS-M12 SVSS-M2 SVSS-M2.5 SVSS-M3 SVSS-M4 SVSS-M5 SVSS-M6 SVSS-M8 SVSS-M10-PC SVSS-M12-PC SVSS-M3-PC SVSS-M4-PC SVSS-M5-PC SVSS-M6-PC SVSS-M8-PC SWAS-10-VF SWAS-12-VF SWAS-2.5-VF SWAS-2-VF SWAS-3-VF SWAS-4-VF SWAS-5-VF SWAS-6-VF SWAS-8-VF SWAS-10-VF-PC SWAS-12-VF-PC SWAS-3-VF-PC SWAS-4-VF-PC SWAS-5-VF-PC SWAS-6-VF-PC SWAS-8-VF-PC
Image Hex Socket Head Cap Screws with Ventilation Hole - High Intensity Stainless Steel Hex Socket Head Cap Screws with Ventilation Hole - High Intensity S.S. Washer Integrated Hex Socket Head Cap Screws with Ventilation Hole - High Strength Stainless Steel Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole - Chemical Polish Hex Socket Head Cap Screws with Captive Washer and Ventilation Hole Socket Head Cap Captive Screws with Ventilation Hole Hex Socket Head Cap Screws with Ventilation Hole - Titanium Washers with Ventilation Grooves - Titanium
Part Name Hex Socket Head Cap Screws with Ventilation Hole - High Intensity Stainless Steel Hex Socket Head Cap Screws with Ventilation Hole - High Intensity S.S. Washer Integrated Hex Socket Head Cap Screws with Ventilation Hole - High Strength Stainless Steel Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole - Chemical Polish Hex Socket Head Cap Screws with Captive Washer and Ventilation Hole Socket Head Cap Captive Screws with Ventilation Hole Hex Socket Head Cap Screws with Ventilation Hole - Titanium Washers with Ventilation Grooves - Titanium
Part Number SVSLG SVSX-88 SVSQLG SVSI1S SVSI1S-PC SVSQS SSC-SVSS SVST SWAT-VF
Feature High Strength(Equivalent to Strength Class 10.8) High Strength(Strength Class 8.8) High Strength (Tensile Strength Ranking 10.8 Equivalent)
Integrated Washers
I=3		 Integrated Washers
I=1		 Integrated Washers
I=1		 Integrated Washers
I=3		 Captive/Loss Prevention Lightweight
Nonmagnetic
Chemical Resistance		 Lightweight
Nonmagnetic
Material SUS316L SUS316L HiMo SUS316L SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) Grade 2 Titanium Grade 2 Titanium
Surface Treatment - - - - Special Chemical Polishing - - Special Chemical Polishing -
Thread Size M3 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M12 M3 ～ M8 M3 ～ M5 M3 ～ M5
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SVSLG-M3 SVSLG-M4 SVSLG-M5 SVSLG-M6 SVSX-M3-88 SVSX-M4-88 SVSX-M5-88 SVSX-M6-88 SVSQLG-M3 SVSQLG-M4 SVSQLG-M5 SVSQLG-M6 SVSI1S-M3 SVSI1S-M4 SVSI1S-M5 SVSI1S-M6 SVSI1S-M3-PC SVSI1S-M4-PC SVSI1S-M5-PC SVSI1S-M6-PC SVSQS-M10 SVSQS-M12 SVSQS-M3 SVSQS-M4 SVSQS-M5 SVSQS-M6 SVSQS-M8 SSC-SVSS-M3 SSC-SVSS-M4 SSC-SVSS-M5 SSC-SVSS-M6 SSC-SVSS-M8 SVST-M3 SVST-M4 SVST-M5 SWAT-3-VF SWAT-4-VF SWAT-5-VF
Image Socket Head Cap Screws with Ventilation Hole with Low Profile Socket Head Cap Screws with Ventilation Hole with Special Low Profile Vented Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel Vented Socket Head Cap Screws with Ultra Low Profile - Titanium Vented Socket Head Cap Screws with Small Head Vented Socket Head Cap Screws with Small Head - 316L Stainless Steel Vented Socket Head Cap Screws with Small Head - Titanium Vented Socket Head Cap Screws with Ultra Low Profile & Small Head Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - 316L Stainless Steel
Part Name Socket Head Cap Screws with Ventilation Hole with Low Profile Socket Head Cap Screws with Ventilation Hole with Special Low Profile Vented Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel Vented Socket Head Cap Screws with Ultra Low Profile - Titanium Vented Socket Head Cap Screws with Small Head Vented Socket Head Cap Screws with Small Head - 316L Stainless Steel Vented Socket Head Cap Screws with Small Head - Titanium Vented Socket Head Cap Screws with Ultra Low Profile & Small Head Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - 316L Stainless Steel
Part Number SVLS SVSHS SVSHL SVSHT SVSS-SD SVSL-SD SVST-SD SVSHS-SD SVSHL-SD
Feature Low Profile
Small Space		 Special Low Profile
Small Space		 Special Low Profile
Small Space		 Lightweight
Nonmagnetic
Chemical Resistance		 Standard
Small Head		 Small Head
Corrosion Resistance
Non-magnetic		 Small Head
Lightweight
Non-magnetic
Chemical Resistance
Lightweight		 Special Low Profile
Small Head
Space-saving		 Special Low Profile
Small Head
Space-saving
Non-magnetic
Material SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUS316L Grade 2 Titanium SUSXM7 (Equivalent to SUS304) SUS316L Grade 2 Titanium SUSXM7 (Equivalent to SUS304) SUS316L
Surface Treatment - - - Special Chemical Polishing - - Special Chemical Polishing - -
Thread Size M3 ～ M10 M3 ～ M6 M3 ～ M5 M3 ～ M6 M2 ～ M10 M2 ～ M8 M3 ～ M5 M3 ～ M6 M3 ～ M5
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SVLS-M10 SVLS-M3 SVLS-M4 SVLS-M5 SVLS-M6 SVLS-M8 SVSHS-M3 SVSHS-M4 SVSHS-M5 SVSHS-M6 SVSHL-M3 SVSHL-M4 SVSHL-M5 SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6 SVSS-M10-SD SVSS-M2.5-SD SVSS-M2-SD SVSS-M3-SD SVSS-M4-SD SVSS-M5-SD SVSS-M6-SD SVSS-M8-SD SVSL-M2-SD SVSL-M3-SD SVSL-M4-SD SVSL-M5-SD SVSL-M6-SD SVSL-M8-SD SVST-M3-SD SVST-M4-SD SVST-M5-SD SVSHS-M3-SD SVSHS-M4-SD SVSHS-M5-SD SVSHS-M6-SD SVSHL-M3-SD SVSHL-M4-SD SVSHL-M5-SD
Image Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium Socket Head Cap Screws with Ventilation Hole - SUS316L Hex socket Head Cap Screws with Ventilation Hole / Surface Hardening Treatment Hex Socket Head Cap Screws (Inconel equiv.) with Ventilation Hole Hex Socket Head Cap Screws (Hastelloy C-276 equiv.) with Ventilation Hole Hex Socket Head Cap Screws (Hastelloy C-22 equiv.) with Ventilation Hole Molybdenum Hex Socket Head Cap Screws with Ventilation Hole Aluminum Hex Socket Head Cap Screws with Ventilation Hole Hexagon Head Bolts (with Ventilation Hole)
Part Name Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium Socket Head Cap Screws with Ventilation Hole - SUS316L Hex socket Head Cap Screws with Ventilation Hole / Surface Hardening Treatment Hex Socket Head Cap Screws (Inconel equiv.) with Ventilation Hole Hex Socket Head Cap Screws (Hastelloy C-276 equiv.) with Ventilation Hole Hex Socket Head Cap Screws (Hastelloy C-22 equiv.) with Ventilation Hole Molybdenum Hex Socket Head Cap Screws with Ventilation Hole Aluminum Hex Socket Head Cap Screws with Ventilation Hole Hexagon Head Bolts (with Ventilation Hole)
Part Number SVSHT-SD SVSL SVSL-PN SVSI SVSH-C276 SVSH-C22 SVSM SVSA SVHS
Feature Special Low Profile
Small Head
Space-saving
Lightweight
Non-magnetic
Chemical Resistance
Lightweight		 CorrosionResistance Seizing prevention Chemical Resistance
Heat Resistance		 Chemical Resistance Chemical Resistance Heat Resistance Lightweight Hex head screws
Material Grade 2 Titanium SUS316L SUS316L Inconel equiv. Hastelloy equiv. Hastelloy equiv. Pure molybdenum A5056 SUSXM7 (Equivalent to SUS304)
Surface Treatment Special Chemical Polishing - Surface hardening treatment - - - - - -
Thread Size M3 ～ M6 M3 ～ M12 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8 M3 ～ M8
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD SVSL-M10 SVSL-M12 SVSL-M3 SVSL-M4 SVSL-M5 SVSL-M6 SVSL-M8 SVSL-M3-PN SVSL-M4-PN SVSL-M5-PN SVSL-M6-PN SVSL-M8-PN SVSI-M3 SVSI-M4 SVSI-M5 SVSI-M6 SVSI-M8 SVSH-M3-C276 SVSH-M4-C276 SVSH-M5-C276 SVSH-M6-C276 SVSH-M8-C276 SVSH-M3-C22 SVSH-M4-C22 SVSH-M5-C22 SVSH-M6-C22 SVSH-M8-C22 SVSM-M3 SVSM-M4 SVSM-M5 SVSM-M6 SVSM-M8 SVSA-M3 SVSA-M4 SVSA-M5 SVSA-M6 SVSA-M8 SVHS-M3 SVHS-M4 SVHS-M5 SVHS-M6 SVHS-M8
Image Hex Socket Countersunk Head Screws with Ventilation Hole Cross Recessed Flat Head Machine Screws with Ventilation Hole Phillips Cross Recessed Flat Head Titanium Machine Screws (with Ventilation Hole) Phillips Cross Recessed Pan Head Machine Screws with Ventilation Hole Phillips Cross Recessed Pan Head Titanium Machine Screws (with Ventilation Hole) Hex Socket Head Cap Screws (with Ventilation Hole / Inch Screws) Socket Head Cap Screws with Ventilation Hole - MoS<sub>2</sub> Shot Socket Head Cap Screws with Ventilation Hole - Silver Plating Hex Socket Set Screws (with Ventilation Hole)
Part Name Hex Socket Countersunk Head Screws with Ventilation Hole Cross Recessed Flat Head Machine Screws with Ventilation Hole Phillips Cross Recessed Flat Head Titanium Machine Screws (with Ventilation Hole) Phillips Cross Recessed Pan Head Machine Screws with Ventilation Hole Phillips Cross Recessed Pan Head Titanium Machine Screws (with Ventilation Hole) Hex Socket Head Cap Screws (with Ventilation Hole / Inch Screws) Socket Head Cap Screws with Ventilation Hole - MoS2 Shot Socket Head Cap Screws with Ventilation Hole - Silver Plating Hex Socket Set Screws (with Ventilation Hole)
Part Number SVFCS SVFS SVFT SVPS SVPT SVSS(INCH) SVSS-MOS SVSS-AG SVTS
Feature Hex Socket
CountersunkHead Screws
Small Space		 Flat Head Machine Screws
Small Space		 Titanium Phillips Cross Recessed Flat Head Machine Screw
Low outgas
Nonmagnetic		 Pan Head Machine Screws Titanium Phillips Cross Recessed Pan Head Machine Screw
Low outgas
Nonmagnetic		 Inch Thread
Socket Head Cap Screws		 Seizing prevention Seizing prevention Set Screws
Material SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) Grade 2 Titanium SUSXM7 (Equivalent to SUS304) Grade 2 Titanium Equivalent to SUS304 SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304)
Surface Treatment - - Special Chemical Polishing - Special Chemical Polishing - Molybdenum Disulfide Shot Treatment Silver plating -
Thread Size M3 ～ M8 M2 ～ M6 M3 ～ M4 M3 ～ M8 M3 ～ M5 No.4-40UNC ～ 1/4-20UNC M3 ～ M8 M3 ～ M8 M3 ～ M8
Operating Temperature (℃) - - - - - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SVFCS-M3 SVFCS-M4 SVFCS-M5 SVFCS-M6 SVFCS-M8 SVFS-M2 SVFS-M2.6 SVFS-M3 SVFS-M4 SVFS-M5 SVFS-M6 SVFT-M3 SVFT-M4 SVPS-M3 SVPS-M4 SVPS-M5 SVPS-M6 SVPS-M8 SVPT-M3 SVPT-M4 SVPT-M5 SVSS-#10-24 SVSS-#10-32 SVSS-#4-40 SVSS-#5-40 SVSS-#6-32 SVSS-#8-32 SVSS-1/4-20 SVSS-M3-MOS SVSS-M4-MOS SVSS-M5-MOS SVSS-M6-MOS SVSS-M8-MOS SVSS-M3-AG SVSS-M4-AG SVSS-M5-AG SVSS-M6-AG SVSS-M8-AG SVTS-M3 SVTS-M4 SVTS-M5 SVTS-M6 SVTS-M8
Image Hex Posts with Ventilation Hole Clamping Set Screws with Ventilation Hole Clamping Set Screws with Ventilation Hole
Part Name Hex Posts with Ventilation Hole Clamping Set Screws with Ventilation Hole Clamping Set Screws with Ventilation Hole
Part Number SHVAS SCSS-VR SCSS-VF
Feature Stainless Steel
Single - end Female Screw Type		 For Fixing
Full Ball		 For Fixing
Flat Ball
Material SUS304 SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304)
Surface Treatment - - -
Thread Size M3 ～ M8 M5 ～ M10 M5 ～ M10
Operating Temperature (℃) - - -
CAD CAD CAD CAD
Specifications Specifications Specifications Specifications
List SHVAS-M3 SHVAS-M4 SHVAS-M5 SHVAS-M6 SHVAS-M8 SCSS-M10-16-VR SCSS-M10-20-VR SCSS-M10-25-VR SCSS-M10-35-VR SCSS-M5-12-VR SCSS-M5-20-VR SCSS-M5-8-VR SCSS-M6-10-VR SCSS-M6-16-VR SCSS-M6-20-VR SCSS-M6-25-VR SCSS-M8-10-VR SCSS-M8-12-VR SCSS-M8-20-VR SCSS-M8-25-VR SCSS-M8-30-VR SCSS-M10-16-VF SCSS-M10-20-VF SCSS-M10-25-VF SCSS-M10-35-VF SCSS-M5-12-VF SCSS-M5-20-VF SCSS-M5-8-VF SCSS-M6-10-VF SCSS-M6-16-VF SCSS-M6-20-VF SCSS-M6-25-VF SCSS-M8-10-VF SCSS-M8-12-VF SCSS-M8-20-VF SCSS-M8-25-VF SCSS-M8-30-VF

Latest

No. 2: Vacuum environments

No. 2: Vacuum environments

Vacuum technology is often used in semiconductor manufacturing equipment. A vacuum is not required for all equipment. A vacuum would mainly be required for equipment that uses plasma or an electron beam. In Part 2, we introduce some NBK products that are ideal for use in these vacuum environments!

What are Hex Socket Head Cap Screws (cap bolts)?

What are Hex Socket Head Cap Screws (cap bolts)?

Hex Socket Head Cap Screws (cap bolts) are bolts (screws) with hexagon-shaped holes in their heads. It lists product descriptions for hex socket head cap screws, recommended products, etc.

What are Captive Screws? Introduction of the NBK Captive Series

What are Captive Screws? Introduction of the NBK Captive Series

NBK has standardized products for fall prevention of parts in the knob, pull and e-nedzi.com (special screw) categories. Use NBK's Captive Series for food machinery, packaging machinery and chemical manufacturing equipment that require CE Marking Compliance and Contamination Control.

No. 8: Preventing Part Fall-out

No. 8: Preventing Part Fall-out

Are you struggling with screw or washer fall-out during equipment assembly or maintenance?
Here we introduce products that can be used to prevent part fall-out.

Helpful Resources

Search by purpose

Product IntroductionCustomizationServices & Product OptionsIssue/case studiesTechnical DataUsageSelection MethodInstallation Method/MaintenanceSafety PrecautionsGlossary

Search by keyword

Improved productivity/workabilitySafety measures/precautionary measuresReduced cost/energy saving/long lifeVibration prevention/high precisionCompact/space-saving/lightweightCustomizationHigh strength/high rigidityHeat resistance/corrosion resistanceElegant functionality/designCleanroom/vacuum/non-magneticSeizing PreventionAutomation/robots/motorizationOthers

Search by industry

Machine ToolsSemiconductor Manufacturing EquipmentFood MachineryAutomotive Manufacturing ProcessMedical equipmentFA Devices

Search by series

The Semiconductor Industry and NBKVideo LibraryHints for correctly using NBK productsSolution samplesWhat is a Screw?Description of Mechanical Components for EngineersDescription of Special Screws for Engineers3 Min Engineering TipsServices & Product OptionsTechnical Data

Search by product category

CouplingsSpecial ScrewsMachine ElementsFA solutions

Click here to see Special Screws

Vented Screws / Vacuum Screws

Vented Screws / Vacuum Screws

Low Profile Screws / Small Head Screws

Low Profile Screws / Small Head Screws

High Performance Stainless Steel Screws

High Performance Stainless Steel Screws

Titanium Screws

Titanium Screws

Special Material Screws

Special Material Screws

Tools

Tools

Screws with Special Surface Treatment

Screws with Special Surface Treatment

Micro Screws

Micro Screws

Captive Screws / Full Thread Screws

Captive Screws / Full Thread Screws

Quick Clamping Fastener

Quick Clamping Fastener

Functional Screws

Functional Screws

UNC Screws / UNF Screws

UNC Screws / UNF Screws

Security screws / Tamper Resistant Screws

Security screws / Tamper Resistant Screws

Hexalobular Screws

Hexalobular Screws

Plugs

Plugs

Washers / Inserts

Washers / Inserts

Plastic Screws

Plastic Screws

Vibration Resistance

Vibration Resistance

Screw Caps / Screw Covers

Screw Caps / Screw Covers

Chemical Resistance Screws

Chemical Resistance Screws

Socket Head Cap Screws

Socket Head Cap Screws

Hex Head Screws

Hex Head Screws

Sheet Metal Fasteners

Sheet Metal Fasteners

Vacuum

Vacuum

Low Outgassing

Low Outgassing

Cleanroom

Cleanroom

Chemical Resistance

Chemical Resistance

High Strength

High Strength

High Specific Strength

High Specific Strength

Heat Resistance

Heat Resistance

Galling & Seizing Prevention

Galling & Seizing Prevention

Prevention of Screw Drive Damage

Prevention of Screw Drive Damage

Anti-Reflective

Anti-Reflective

Electrical Insulation

Electrical Insulation

Non-Magnetic

Non-Magnetic

Lightweight

Lightweight

Compact and Space-Saving

Compact and Space-Saving

Increased Productivity

Increased Productivity

Captive

Captive

Loosening Prevention

Loosening Prevention

Decoration

Decoration

Fixing and Positioning

Fixing and Positioning

Conveyance

Conveyance

SEMS Screws / Improved Fastening Efficiency Screws

SEMS Screws / Improved Fastening Efficiency Screws
