SNSS-M4-8-FC

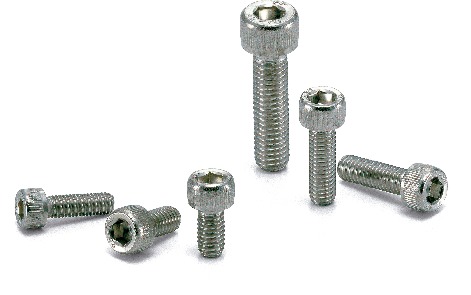

Hex Socket Head Cap Screws - Fluorine Coating

Seizing & Sticking Prevention

SNSS-FCHex Socket Head Cap Screws - Fluorine Coating

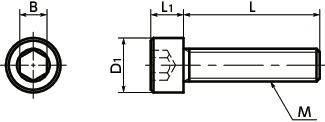

Dimension Drawing

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNSS-M4-8-FC	M4	0.7	8	7	4	3	10	1.7	7.00	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNSS-M4-8-FC	M4	0.7	8	7	4	3	10	1.7	7.00	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNSS-M4-8-FC	M4	0.7	8	7	4	3	10	1.7	7.00	CAD	Cart

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	B	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SNSS-M4-8-FC	M4	0.7	8	7	4	3	10	1.7	7.00	CAD	Cart

Part Number
Amount
Price（＄）

Check other products Cart

Material/Finish

	SNSS-FC
Main Body	SUSXM7（S.S. Grade：A2） Fluorine Coating
Strength Class	A2-70

Application

Seizing prevention
FPD production equipment, semiconductor devices,
and general industrial machines

Characteristics

Coating with good cost performance.
Excellent lubricating ability and suitable for seizing prevention of screws.
Conforms to JIS B 1176, ISO 4762, and DIN 912. ⇒Technical Information：JIS B 1176、ISO 4762

Tightening Property (Reference)

Part Number：SNSS-M5-25-FC
⇒The Features of Screws with Special Surface Treatment

SNSS-FCHex Socket Head Cap Screws - Fluorine Coating
