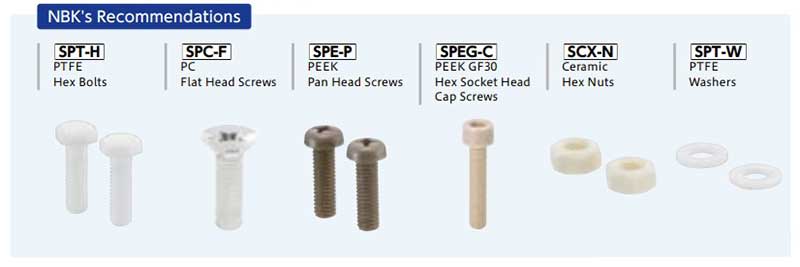

Electrical Insulation

These screws have excellent electrical insulation properties.
They prevent current from flowing to electrical and electronic components, thereby preventing short circuits and damage to circuits.

Part Name	Ceramic Hex Socket Head Cap Bolts	Ceramic Hex Head Bolts	Hex Nuts - Ceramic	Plastic Screws - Hex Socket Head Cap Screws - PEEK GF30	Plastic Screws - Cross Recessed Pan Head Machine Screws - PEEK
Part Number	SCX-C	SCX-H	SCX-N	SPEG-C	SPE-P
Feature	Chemical Resistance Heat Resistance Electrical Insulation	Chemical Resistance Heat Resistance Electrical Insulation	Chemical Resistance Heat Resistance Electrical Insulation	Chemical Resistance Heat Resistance High Strength	Chemical Resistance Heat Resistance
Material	Al2O3 (Alumina 99.5%)	Al2O3 (Alumina 99.5%)	Al2O3 (Alumina 99.5%)	PEEK GF30	PEEK
Surface Treatment	-	-	-	-	-
Thread Size	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M5	M1.7 ～ M8
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SCX-M10-C SCX-M3-C SCX-M4-C SCX-M5-C SCX-M6-C SCX-M8-C	SCX-M10-H SCX-M3-H SCX-M4-H SCX-M5-H SCX-M6-H SCX-M8-H	SCX-M10-N SCX-M3-N SCX-M4-N SCX-M5-N SCX-M6-N SCX-M8-N	SPEG-M3-C SPEG-M4-C SPEG-M5-C	SPE-M1.7-P SPE-M2.6-P SPE-M2-P SPE-M3-P SPE-M4-P SPE-M5-P SPE-M6-P SPE-M8-P

Part Name	Plastic Screw - Cross Recessed Flat Head Machine Screws - PEEK	Plastic Screws - Hexagon Head Screws - PEEK	Plastic Set Screw - PEEK	Plastic Screws - Hex Socket Head Cap Screws - PEEK	Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK
Part Number	SPE-F	SPE-H	SPE-T	SPE-C	SPE-FT
Feature	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance Full Thread
Material	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-
Thread Size	M2 ～ M8	M4 ～ M12	M3 ～ M8	M3 ～ M12	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M2.6-F SPE-M2-F SPE-M3-F SPE-M4-F SPE-M5-F SPE-M6-F SPE-M8-F	SPE-M10-H SPE-M12-H SPE-M4-H SPE-M5-H SPE-M6-H SPE-M8-H	SPE-M3-T SPE-M4-T SPE-M5-T SPE-M6-T SPE-M8-T	SPE-M10-C SPE-M12-C SPE-M3-C SPE-M4-C SPE-M5-C SPE-M6-C SPE-M8-C	SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT

Part Name	Plastic Screws - Hexalobular Socket Head Cap Screw with Low Head - PEEK	Plastic Screws - Hexalobular Socket Head Cap Screw with Ultra Low Head - PEEK	Plastic Standoff - PEEK	Plastic Hex Nut - PEEK	Plastic Washer - PEEK
Part Number	SPE-LH	SPE-SH	SPE-HB	SPE-N	SPE-W
Feature	Heat Resistance Chemical Resistance Low Profile Space Saving	Heat Resistance Chemical Resistance Low Profile Space Saving	PEEK Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M8	M2 ～ M10	M2 ～ M10
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M3-LH SPE-M4-LH SPE-M5-LH SPE-M6-LH	SPE-M3-SH SPE-M4-SH SPE-M5-SH SPE-M6-SH	SPE-M3-HB SPE-M4-HB SPE-M5-HB SPE-M6-HB SPE-M8-HB	SPE-M10-N SPE-M2.6-N SPE-M2-N SPE-M3-N SPE-M4-N SPE-M5-N SPE-M6-N SPE-M8-N	SPE-10-W SPE-2.6-W SPE-2-W SPE-3-W SPE-4-W SPE-5-W SPE-6-W SPE-8-W

Part Name	Plastic Screw - Cross Recessed Pan Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Hex Head Screw - Inch Thread - PEEK	Plastic Screw - Hex Socket Head Cap Screw - Inch Thread - PEEK	Plastic Screw - Slotted Pan Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Slotted Flat Head Machine Screw - PEEK - Inch Thread
Part Number	SPE-P(INCH)	SPE-H(INCH)	SPE-C(INCH)	SPE-PS(INCH)	SPE-FS(INCH)
Feature	Heat Resistance Chemical Resistance	Chemical Resistance Heat Resistance	Chemical Resistance	Chemical Resistance	Chemical Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-
Thread Size	No.2-56UNC ～ 1/4-20UNC	1/4-20UNC	No.4-40UNC ～ 1/4-20UNC	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.10-32UNF
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-#10-24-P SPE-#10-32-P SPE-#2-56-P SPE-#4-40-P SPE-#6-32-P SPE-#8-32-P SPE-1/4-20	SPE-1/4-20-H	SPE-#10-24-C SPE-#10-32-C SPE-#4-40-C SPE-#6-32-C SPE-#8-32-C SPE-1/4-20-C	SPE-#10-32-PS SPE-#4-40-PS SPE-#6-32-PS SPE-#8-32-PS	SPE-#10-32-FS SPE-#4-40-FS SPE-#6-32-FS SPE-#8-32-FS

Part Name	Plastic Hex Nut for Inch Screw - PEEK	Plastic Plug - PEEK	Plastic Screw - Hex Head Screws - PTFE	Plastic Hex Nut - PTFE	Plastic Washer - PTFE
Part Number	SPE-N(INCH)	SPE-R	SPT-H	SPT-N	SPT-W
Feature	Chemical Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance Electrical Insulation	Chemical Resistance Heat Resistance Electrical Insulation	Chemical Resistance Heat Resistance Electrical Insulation
Material	PEEK	PEEK	PTFE (Polytetrafluoroethylene)	PTFE (Polytetrafluoroethylene)	PTFE (Polytetrafluoroethylene)
Surface Treatment	-	-	-	-	-
Thread Size	No.4-40UNC ～ No.8-32UNC	R1/8" ～ R3/8"	M3 ～ M12	M3 ～ M12	M3 ～ M12
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-#4-40-N SPE-#6-32-N SPE-#8-32-N	SPE-1-R SPE-2-R SPE-3-R	SPT-M10-H SPT-M12-H SPT-M3-H SPT-M4-H SPT-M5-H SPT-M6-H SPT-M8-H	SPT-M10-N SPT-M12-N SPT-M3-N SPT-M4-N SPT-M5-N SPT-M6-N SPT-M8-N	SPT-10-W SPT-12-W SPT-3-W SPT-4-W SPT-5-W SPT-6-W SPT-8-W

Part Name	Plastic Screw - Cross Recessed Pan Head Machine Screws - PC	Plastic Screws - Phillips Cross Recessed Flat Head Machine Screws - PC	Plastic Screws - Hex Head Screws - PC	Plastic Screws - Hex Socket Head Cap Screws - PC	Plastic Threaded Rod - PC
Part Number	SPC-P	SPC-F	SPC-H	SPC-C	SPC-Z
Feature	Shock Resistance Weather Resistance	Shock Resistance Weather Resistance	Shock Resistance Weather Resistance	Shock Resistance Weather Resistance	Shock Resistance Weather Resistance
Material	PC	PC	PC	PC	PC
Surface Treatment	-	-	-	-	-
Thread Size	M1.7 ～ M8	M2 ～ M8	M4 ～ M8	M3 ～ M8	M6 ～ M8
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPC-M1.7-P SPC-M2.6-P SPC-M2-P SPC-M3-P SPC-M4-P SPC-M5-P SPC-M6-P SPC-M8-P	SPC-M2.6-F SPC-M2-F SPC-M3-F SPC-M4-F SPC-M5-F SPC-M6-F SPC-M8-F	SPC-M4-H SPC-M5-H SPC-M6-H SPC-M8-H	SPC-M3-C SPC-M4-C SPC-M5-C SPC-M6-C SPC-M8-C	SPC-M6-Z SPC-M8-Z

Part Name	Plastic Hex Nut - PC	Plastic Washer - PC
Part Number	SPC-N	SPC-W
Feature	Shock Resistance Weather Resistance	Shock Resistance Weather Resistance
Material	PC	PC
Surface Treatment	-	-
Thread Size	M2 ～ M8	M2 ～ M8
Operating Temperature (℃)	-	-
CAD	CAD	CAD
Specifications	Specifications	Specifications
List	SPC-M2.6-N SPC-M2-N SPC-M3-N SPC-M4-N SPC-M5-N SPC-M6-N SPC-M8-N	SPC-2.6-W SPC-2-W SPC-3-W SPC-4-W SPC-5-W SPC-6-W SPC-8-W
